SEL-2890
Ethernet Transceiver

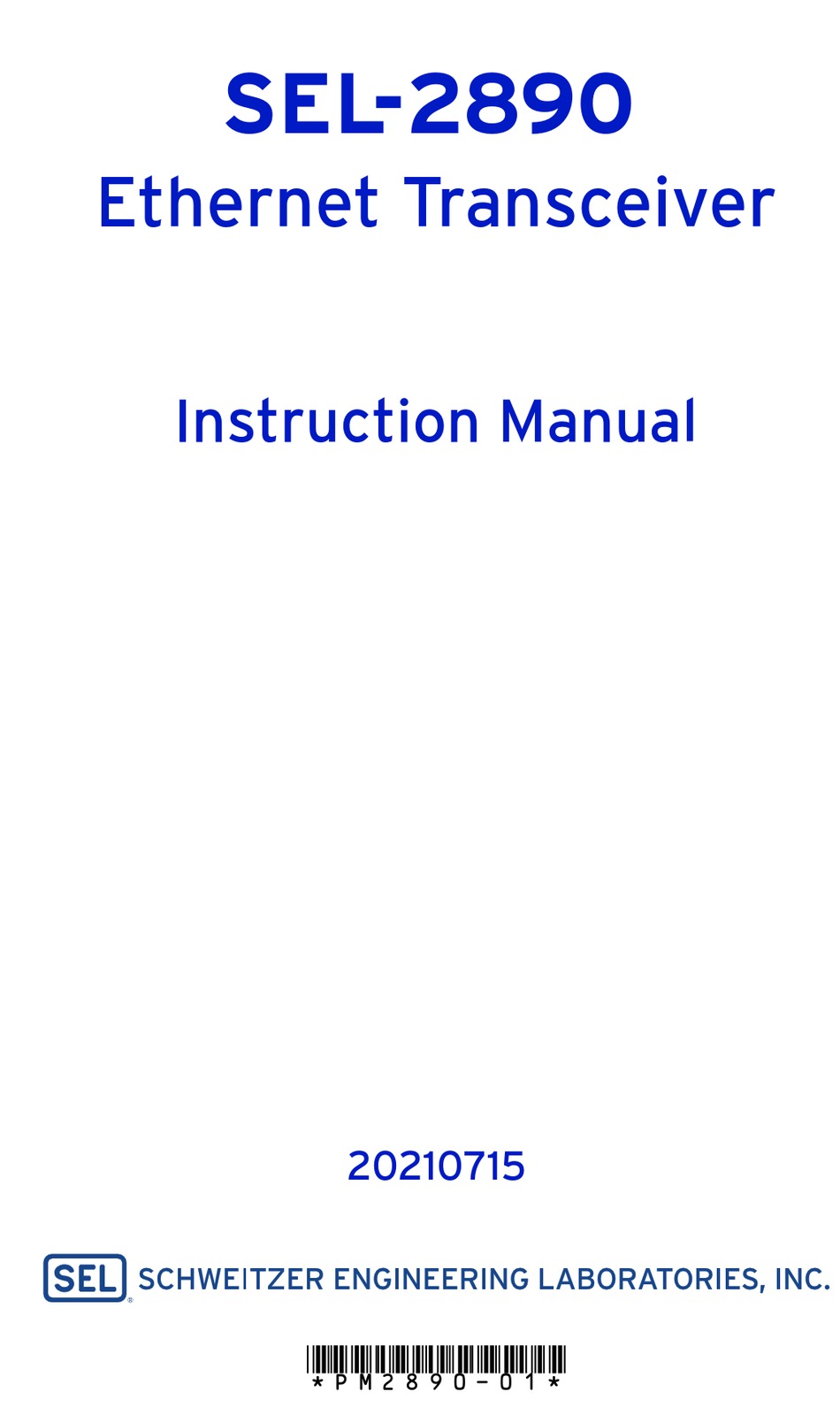

Instruction Manual
20210715
*PM2890-01*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-2890 and is the answer not in the manual?

Questions and answers

Related Manuals for Schweitzer Engineering Laboratories SEL-2890

Summary of Contents for Schweitzer Engineering Laboratories SEL-2890

  • Page 1 SEL-2890 Ethernet Transceiver Instruction Manual 20210715 *PM2890-01*...
  • Page 2 No SEL trademarks may be used without written permission. SEL products appearing in this document may be covered by U.S. and Foreign patents. Schweitzer Engineering Laboratories, Inc. reserves all rights and benefits afforded under federal and international copyright and patent laws in its products, including without limitation software, firmware, and documentation.

  • Page 3: Table Of Contents

    Introduction ......................4.1 Job Done Example 1 ....................4.1 Job Done Example 2 ....................4.3 Job Done Example 3 ....................4.6 Section 5: Troubleshooting Introduction ......................5.1 SEL-2890 Indicator LEDs..................5.1 Troubleshooting Procedures...................5.2 Technical Support....................5.3 Appendix A: Firmware and Manual Versions Firmware .......................A.1 Instruction Manual ....................A.3...
  • Page 4 Important Note Regarding Settings ...............B.1 Required Equipment ....................B.1 Upgrade Procedure ....................B.2 Appendix C: HTML Code Appendix D: Alitree Applet Introduction ......................D.1 Tree View Java Applet..................D.2 Appendix E: ASCII Reference Table Appendix F: Open Network Ports Index SEL-2890 Instruction Manual Date Code 20210715...

  • Page 5: List Of Tables

    List of Tables Table 2.1 SEL-2890 EIA-232 Serial Port Pinout ........2.1 Table 3.1 SEL-2890 Settings Summary ..........3.1 Table 3.2 SEL-2890 Command Summary...........3.11 Table 3.3 SEL-2890 Network Configuration Settings......3.14 Table 3.4 GATEWAY Address Setting Examples .......3.15 Table 5.1 SEL-2890 LED Indicators .............5.1 Table 5.2...
  • Page 6 This page intentionally left blank...

  • Page 7: List Of Figures

    Figure 4.3 Example Telnet Serial Encapsulation System .......4.3 Figure 4.4 Network Parameters Dialog Box ...........4.5 Figure 4.5 Serial Tunneling Network Connection ........4.7 Figure 5.1 Example SEL-2890 Panel............5.1 Figure C.1 HTML Code Shown in Figure 1.2 ........C.3 Figure C.2 Example HTML Code ............C.5...
  • Page 8 This page intentionally left blank...

  • Page 9: Preface

    Safety Symbols The following symbols are often marked on SEL products. CAUTION ATTENTION Refer to accompanying documents. Se reporter à la documentation. Earth (ground) Terre Protective earth (ground) Terre de protection Direct current Courant continu Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 10 SEL contraire, un accès nonautorisé á l’équipement shall not be responsible for any damage peut être possible. SEL décline toute resulting from unauthorized access. responsabilité pour tout dommage résultant de cet accès nonautorisé. SEL-2890 Instruction Manual Date Code 20210715...

  • Page 11: Section 1: Introduction & Specifications

    ➢ HTTP An Ethernet gateway is provided by an SEL-2890 to relays and other IEDs that are based on EIA-232 serial communications. The SEL-2890 encapsulates serial data into the Ethernet stack. More discussion on Ethernet and protocols is provided later in this section.

  • Page 12: Applications

    Console session. Telnet port 1025 is the port used for a Console session. Ports 23 and 1026–65534 are used to Telnet through the SEL-2890 and out of its serial port. This type of Telnet connection is common among software and is supported by SEL software.

  • Page 13: Figure 1.1 Example Ethernet Substation Network

    Figure 1.1 Example Ethernet Substation Network HTTP Server The SEL-2890 provides an easy to use HTTP interface to SEL relays and SEL communications processors. The three HTTP options are Custom, SEL, User, and Off. When issuing settings to the transceiver, select one of these four options.
  • Page 14 ➤ Port: The FTP port in the SEL-2890 is 21. NOTE: The SEL-2890 FTP server does not support the PAS V (passive transfer) command. Use the automatic or binary selection for the type of file transfer. Listed below is the FTP file structure for the transceiver.

  • Page 15: Figure 1.2 Sel Default Http (Web=Sel)

    The end of an unsolicited message is determined by the MTDELAY setting. The SEL-2890 will send an email message to the email server. If the email server is unavailable the SEL-2890 will retry at a 1-minute, a 10-minute, and a 30-minute interval.
  • Page 16 Effectively, you can send messages out of a serial port through the SEL-2890 and they can be routed to different destinations depending on the first 8 bytes of the message. As many as three different routing masks are available in the SEL-2890.
  • Page 17 IED will receive the data but may not know which slave it came from. This may be acceptable if the serial data are self-identifying. Collisions will occur if all the slave devices answer at the same time. The SEL-2890 transceiver’s Ethernet processor will make the necessary adjustments and will keep retransmitting until a message is successfully sent.

  • Page 18: Figure 1.3 Btcp Tunneling Using Broadcast

    All devices must be on the same subnet. Slave IED SEL-2890 Master Polling IED SEL-2890 Addr. 13 Slave IED SEL-2890 Slave IED SEL-2890 Addr. 12 Addr. 10 SEL-2890 Slave IED Addr. 11 Figure 1.3 BTCP Tunneling Using Broadcast SEL-2890 Instruction Manual Date Code 20210715...

  • Page 19: Specifications

    IEC 60255-22-3–1989, DHCP Client: DHCP 10 V/m Serial Port IEEE C37.90.2–1995, 35 Connector: DB-9 Male Type Test 1) That the SEL-2890 Data Rate: 300 bps to 115200 bps Compliance does not damage or Criteria: impede relay operation. Interface: EIA-232 2) The SEL-2890 is...
  • Page 20 1.10 Introduction & Specifications Specifications Damp Heat, IEC 60068-2-30–1980, Vibration: IEC 60255-21-1–1988, Cyclic: Test Db: 25–55C, Class 1 6 cycles, 95% humidity IEC 60255-21-2–1988, Class 1 IEC 60255-21-3–1993, Class 2 SEL-2890 Instruction Manual Date Code 20210715...

  • Page 21: Section 2: Installation

    Perform the following steps to begin communicating with the SEL-2890. Step 1. The serial port powers the SEL-2890. Table 2.1 shows the EIA-232 serial port pinout. Provide +5 Vdc between Pin 1 and Pin 5 on the serial connector with Pin 1 being the positive terminal.

  • Page 22: Figure 2.1 Programming Cable Connection

    (this may take several seconds). This LED should not remain lit if there is not a functioning Ethernet connection. This is the green “Link” LED. The red LED on the right indicates data transmission in or out of the SEL-2890 and is referred to as the “Data Transmission” LED. Step 2.

  • Page 23: Initial Checkout

    SHO command. The settings IP, SUBNET_MASK, and GATEWAY need to be obtained before the transceiver is available on your network. The serial data rate in the SEL-2890 can be set to match the target SEL relay or communications processor that will communicate with the transceiver.
  • Page 24 Initial Checkout Type PING octet1.octet2.octet3.octet4 where the octets represent the IP address of your SEL-2890. The response will be in a DOS window similar to the captured window shown below. This reply indicates that your SEL-2890 is visible on your network.

  • Page 25: Figure 2.3 Telnet Window

    Press <Enter> a few times to verify that your connection through the SEL-2890 is working. Please note that any data entered into the Telnet window at this time will be transmitted out of the SEL-2890 serial port at the set data rate. You can also use terminal programs in SEL software to establish Telnet connections to SEL equipment.
  • Page 26 This page intentionally left blank...

  • Page 27: Section 3: Settings And Commands

    Settings Settings Summary Table 3.1 lists the settings in the SEL-2890. You can modify settings with the SET command in a Console Session (see Commands on page 3.10). Table 3.1 SEL-2890 Settings Summary (Sheet 1 of 4)
  • Page 28 Settings and Commands Settings Table 3.1 SEL-2890 Settings Summary (Sheet 2 of 4) Default Setting Name Description Range Value TUNNEL Serial tunnel mode N, Cmd, Telnet, TCP, BTCP TUNNEL_IP Tunneling remote IP IP address address (hidden if TUNNEL=N or Cmd)
  • Page 29 Settings and Commands Settings Table 3.1 SEL-2890 Settings Summary (Sheet 3 of 4) Default Setting Name Description Range Value ROUTE_IP1 Routing destination 1 IP address 192.168.0.3 address HEADER1 Routing destination 1 As many as 8 bytes message header entered in...
  • Page 30 Making a point-to-point serial data connection between two serial IEDs across an Ethernet network is commonly referred to as serial tunneling. There are four modes of serial tunneling supported by the SEL-2890: Commanded (Cmd), Telnet, TCP, and BTCP. SEL-2890 Instruction Manual...
  • Page 31 Telnet tunnel with IP address 192.168.0.11 and Telnet port 3001. The receiving device may be a port server set in slave mode, a PC, an SEL-2890, or an SEL-2701. In Telnet tunnel mode, a transceiver will try to establish a Telnet tunnel with another transceiver, port server, PC, or SEL-2701 card.
  • Page 32 DHCP stands for Dynamic Host Configuration Protocol. Setting DHCP to “Yes” will allow a DHCP server to dynamically assign an IP to the SEL-2890. You should set up a unique host name if you use DHCP. This will allow you to refer to the transceiver by name rather than IP.
  • Page 33 IP addresses. For example, connect an SEL-2890 to a relay and set the transceiver host name to bkr865_351. To Telnet to the SEL-351 Relay on breaker 865, just open a Telnet session to bkr865_351 as shown below.
  • Page 34 Email messages commonly include a Subject Line. Enter any message you want in this line and it will be displayed in the subject line when the SEL-2890 sends an email message. The subject line can contain as many as 159 characters.
  • Page 35 Ethernet device. The routing IP address is the destination for the serial data the SEL-2890 received and forwarded when it was identical to the descriptive header. After a successful connection, the message will be sent.

  • Page 36: Commands

    IED that will be communicating with the SEL-2890. Force RTS Low The SEL-2890 allows you the option of forcing the Request to Send (RTS) flow control line to either high or low when Flow Control is set to None. The default value of N should work for most installations.

  • Page 37: Command Summary

    Ethernet connection for at least five seconds for the default serial configuration to be enabled. Now, enter AT+++ within four seconds. The SEL-2890 should respond with the #> prompt. You are now in a Console session.
  • Page 38 Access levels control whether you can perform different operations within SEL products. For example, at Access Level 1, you can view settings by using the SHO command. You cannot change settings unless you are at Access Level 2. The SEL-2890 contains only Access Levels 1 and 2.
  • Page 39 This is much quicker than scrolling through each setting one at a time. When you connect to the SEL-2890 Console Port over Ethernet, you are not allowed to change some settings. The settings are displayed via the SHOW command but are hidden when you use the SET command.

  • Page 40: Ethernet Network Operation Settings

    Ethernet Network Operation Settings TUNNEL Use the TUNNEL command to request the SEL-2890 to establish a serial tunnel across a network. The Tunnel setting needs to be set to Cmd (Commanded mode) for this command to be accepted. Enter TUN 192.168.0.11:3001 <Enter> to have this SEL-2890 establish a serial tunnel to an SEL-2890, SEL-2701, or other port server with IP set at 192.168.0.11 and Telnet port 3001.

  • Page 41: Table 3.4 Gateway Address Setting Examples

    Table 3.4 GATEWAY Address Setting Examples SUBNET_MASK Network Number Node Address GATEWAY 192.92.92.92 255.255.255.0 192.92.92 192.92.92.a 192.92.92.92 255.255.0.0 192.92 92.92 192.92.a 192.92.92.92 255.0.0.0 92.92.92 192.a Value in the range 0–254. Value in the range 0–255. Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 42 This page intentionally left blank...

  • Page 43: Section 4: Detailed Application Examples

    ➢ Telnet mode ➢ BTCP mode All examples assume that the SEL-2890 transceivers have been properly configured with respect to serial data rates and valid IP addresses. Job Done Example 1 EXAMPLE 4.1 Email of a Summary Event Report Figure 4.1 shows a minimal network connection needed to obtain email messages of relay Summary Event Reports.

  • Page 44: Job Done Example 1

    The SEL transceiver recognizes this as an unsolicited message and will send it via email. A port setting of AUTO=Y in the relay will enable the relay to email unsolicited data to the SEL-2890. The following SEL-2890 settings are needed to allow unsolicited messages to be emailed.

  • Page 45: Figure 4.3 Example Telnet Serial Encapsulation System

    EXAMPLE 4.2 Telnet Serial Encapsulation— QuickSet ERATOR The SEL-2890 encapsulates serial communications in a Telnet session over the Ethernet network. This allows you to use a network connection rather than dial-up or other serial leased lines to communicate with serial devices including SEL relays.
  • Page 46 DEVICE=M PROTOCOL=S FAST_OP=N PORTID="SEL-2890 Port" MODEM=N BAUD=19200 DATABIT=8 STOPBIT=1 PARITY=N RTS_CTS=Y XON_XOFF=N TIMEOUT=5.0 ECHO=Y AUTO_HELP=Y TERTIME1=1 TERSTRING="\004" TERTIME2=OFF Use the settings below to configure the SEL-2890: PORT=23 TEL_PROC=Y TUNNEL=N UDDELAY=2 MTDELAY=0.8 WEB=SEL DHCP=N DNS_IP=192.168.0.1 DOMAIN= HOST_NAME= EMAIL=N ROUTE=N SPEED=19200 STOP=1...

  • Page 47: Figure 4.4 Network Parameters Dialog Box

    MAC=(not a setting, use factory default) Next, start the QuickSet software and configure ERATOR it to communicate with your SEL-2890. Open the Communication menu and select Parameters to display the dialog box shown in Figure 4.4. Figure 4.4 Network Parameters Dialog Box Next, open the Terminal window by selecting Terminal on the Communication menu.
  • Page 48 Assume you have two SEL-2890 Ethernet transceivers, designated as #1 and #2, and an SEL-2701. Refer to Figure 4.5. You can now use the TUNNEL command in SEL-2890 #1 to dynamically establish a serial tunnel to SEL-2890 #2 or to an SEL-2701.

  • Page 49: Figure 4.5 Serial Tunneling Network Connection

    SEL-2890 #1 will now be routed through the SEL-2701 to the Host. The SEL-2890 #2 and the SEL-2701 do not actively search for a connection. They wait for someone or some device to initiate a connection. The SEL-2890 #1 is the device that actively tries to make a connection.
  • Page 50 It does not matter if the remote port server is set to master or slave because the SEL-2890 will toggle back and forth until a connection is made. Once a connection is made, the SEL-2890 will stay in that mode until the connection is terminated.
  • Page 51 The master IED sends out a serial message containing something like “Slave with address 10, send me your data.” The SEL-2890 #1 receives this serial data and broadcasts the message to all Ethernet devices on the local subnet. The SEL-2890 transceivers #2 through #5 receive the Ethernet message and forward the corresponding serial data through their serial ports.
  • Page 52 This page intentionally left blank...

  • Page 53: Section 5: Troubleshooting

    Troubleshooting an SEL-2890 installation SEL-2890 Indicator LEDs There are two indicator LEDs on the SEL-2890. The LEDs and panel label for the dual twisted-pair SEL-2890 are shown in Figure 5.1. The operation of each LED is explained in Table 5.1.

  • Page 54: Troubleshooting Procedures

    Troubleshooting procedures for common problems are listed in Table 5.2. The table lists each symptom and the possible causes and corresponding diagnosis/solutions. Relevant SEL-2890 settings are listed in all capitals. See Section 3: Settings and Commands for details of the SEL-2890 settings.

  • Page 55: Technical Support

    Entering AT+++ too soon after Wait at least 10 seconds after powering up the powering up the SEL-2890 SEL-2890 before attempting console access. Cannot Telnet through transceiver. UDDELAY setting is too short In order for data to be received from the IED through the transceiver, the IED has to respond in less than the UDDELAY time period.
  • Page 56 This page intentionally left blank...

  • Page 57: Table A.1 Firmware Revision History

    Firmware and Manual Versions Firmware This manual covers SEL-2890 Ethernet Transceivers containing firmware bearing the firmware version numbers listed in Table A.1. This table also lists a description of modifications and the instruction manual date code that corresponds to firmware versions.

  • Page 58: Appendix A: Firmware And Manual Versions Firmware

    ➤ Added automatic serial port configuration to 19200, N, 8, 1 when no Ethernet connection is present. ➤ Added BIN selection for relay.cgi type parameter. ➤ Changed UDDELAY setting maximum value to 60 seconds. SEL-2890 Instruction Manual Date Code 20210715...

  • Page 59: Instruction Manual

    ➤ Added Appendix F: Open Network Ports. 20150216 ➤ Added Preface. Section 1 ➤ Updated Certifications, renamed to Compliance, and moved to top of Specifications. Appendix A 20110121 ➤ Updated for firmware version R107. Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 60 Section 3 ➤ Added TEL_PROC setting, WEB=OFF setting range, and software flow control to Table 3.1: SEL-2890 Settings Summary. ➤ Added R_S command summary to Table 3.2: SEL-2890 Command Summary and R_S. Section 4 ➤ Removed former Job Done Example 3.
  • Page 61 ➤ Corrected description of email settings to reflect that the email address list supports only a single email address setting in Email To. ➤ Added Table 3.1: SEL-2890 Network Configuration Settings to document all settings and the factory defaults. ➤ Clarified description of Serial Tunneling.
  • Page 62 ➤ Revised to include manual change information. ➤ Updated for firmware version R103. Appendix A 20020408 ➤ Updated for firmware version R102. 20020301 Appendix A ➤ Updated for firmware version R101. ➤ Initial version. 20020208 SEL-2890 Instruction Manual Date Code 20210715...

  • Page 63: Appendix B: Firmware Upgrade Instructions

    The SEL-2890 transceiver stores firmware in Flash memory; therefore, changing physical components is not necessary. A firmware loader feature is included in the SEL-2890 transceiver. These instructions give a step-by-step procedure to upgrade the transceiver firmware by downloading a file from a personal computer to the transceiver via the serial port.

  • Page 64: Upgrade Procedure

    (e.g., send text files). Step 1. Connect the personal computer to the SEL-2890 transceiver serial port via the SEL-C663 or SEL-C642 programming cable and remove the Ethernet cable from the transceiver.
  • Page 65 SHO command. If there is still no response, press AT+++ to get the attention of the SEL-2890. If still unsuccessful, wait at least 30 seconds and repeat AT+++. Repeat the AT+++ command sequence as many as three separate times with a 10 second delay between each try if needed.
  • Page 66 Firmware Upgrade Instructions Upgrade Procedure Restart the SEL-2890. Repeat the AT+++ sequence three or more times. If the SEL-2890 is still unresponsive and you have tried the original and default data rate of 19200, then go to Step c. The transceiver firmware upgrade was unsuccessful and the transceiver will require factory servicing before it can be returned to service.

  • Page 67: Appendix C: Html Code

    Appendix C HTML Code File: index.htm <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD><TITLE>SEL-2890 Ethernet Transceiver</TITLE></HEAD> <FRAMESET FRAMEBORDER=0 BORDER=0 NORESIZE COLS= "150, *"> <!-left side: logo, menu -!> <FRAMESET ROWS="84,*"> <FRAME NAME="logo" MARGINWIDTH=0 MARGINHEIGHT=0 SCROLLING=NO SRC="logo.htm"> <FRAME NAME="menu" MARGINWIDTH=0 MARGINHEIGHT=0 SRC="menu.htm">...
  • Page 68 {color:white} BODY {background:#000080} </STYLE> </HEAD> <BODY> <!-- The tree navigation applet --> <applet hspace = "5" vspace = "30" NAME = "AliTree" ARCHIVE = "alitree.zip" CODE = "alitree.class" WIDTH = 135 HEIGHT = 250> SEL-2890 Instruction Manual Date Code 20210715...
  • Page 69 <P>You will need to activate java to view this menu.</P> </applet> </BODY> </HTML> File: nodelist.txt (partial) SEL~0 Visit~4~SEL~www.selinc.com~http://www.selinc.com Metering~0 Instantaneous~2~Metering~!~relay.cgi?type=SEL&command=MET Demand~2~Metering~!~relay.cgi?type=SEL&command=MET+D Peak Demand~2~Metering~!~relay.cgi?type=SEL&command=MET+P Energy~2~Metering~!~relay.cgi?type=SEL&command=MET+E Max / Min~2~Metering~!~relay.cgi?type=SEL&command=MET+M Access~0 Login~2~Access~!~access.htm Logout~2~Access~!~relay.cgi?type=SEL&command=QUI Figure C.1 HTML Code Shown in Figure 1.2 Date Code 20210715 SEL-2890 Instruction Manual...

  • Page 70: Table C.2 Http Files

    Use the ! symbol to set the Status Bar text to match the label associated with the tree item. The HTTP files are stored in two different memory areas in the SEL-2890. Each memory area has a maximum size of 230 kilobytes. The following table shows which HTTP files are grouped together.

  • Page 71: Figure C.2 Example Html Code

    The ACTION option defines which CGI script is called when the Submit button is pressed. Relay.cgi or access.cgi can be used with the SEL-2890 Custom HTTP option. Date Code 20210715...
  • Page 72 Therefore, if you want to download more than two application files to the SEL-2890 extension, you will have to save the files as something other than app1.zip or app2.zip.

  • Page 73: Appendix D: Alitree Applet

    This should enable the program to be run on older browsers. The supporting documentation is contained in the file alitree.zip located in the SEL-2890. FTP the alitree.zip file out of the transceiver and unzip. Instructions on how to pass parameters are contained in the file alitree.txt.

  • Page 74: Tree View Java Applet

    CD or other CD-ROM and for it to be uploaded to any online distribution sites such as JARS, TUCOWS or Gamelan. If you are the owner of said CD or website, the author would again appreciate an email at ali@squark.demon.co.uk. SEL-2890 Instruction Manual Date Code 20210715...

  • Page 75: Appendix E: Ascii Reference Table

    Decimal Code Hexadecimal Code Character Keystroke Ctrl+A Ctrl+B Ctrl+C Ctrl+D Ctrl+E Ctrl+F Ctrl+G Ctrl+H Ctrl+I Ctrl+J Ctrl+K Ctrl+L Ctrl+M Ctrl+N Ctrl+O Ctrl+P DC1 (XON) Ctrl+Q Ctrl+R DC3 (XOFF) Ctrl+S Ctrl+T Ctrl+U Ctrl+V Ctrl+W Ctrl+X Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 76 ASCII Reference Table Table E.1 ASCII Reference Table (Sheet 2 of 5) Decimal Code Hexadecimal Code Character Keystroke Ctrl+Y Ctrl+Z Space "" & & SEL-2890 Instruction Manual Date Code 20210715...
  • Page 77 ASCII Reference Table Table E.1 ASCII Reference Table (Sheet 3 of 5) Decimal Code Hexadecimal Code Character Keystroke < < > > Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 78 ASCII Reference Table Table E.1 ASCII Reference Table (Sheet 4 of 5) Decimal Code Hexadecimal Code Character Keystroke SEL-2890 Instruction Manual Date Code 20210715...
  • Page 79 ASCII Reference Table Table E.1 ASCII Reference Table (Sheet 5 of 5) Decimal Code Hexadecimal Code Character Keystroke Delete Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 80 This page intentionally left blank...

  • Page 81: Appendix F: Open Network Ports

    (HTTP) Telnet (Server) Passthrough Enabled Mode Raw TCP Passthrough Disabled (Server) Mode Telnet (Server) Console 1025 Enabled File Transfer Authentica- none Enabled Protocol (FTP) tion Proxy Internet Control System ICMP Enabled Message Protocol (ICMP) Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 82 Optional alerting method to send unsolicited messages coming in from the serial port to an email address. Ethernet Default Services: Device Port Default Can Be Protocol Destination Non-IP Function Settable State Disabled Port Protocols Address Networking Enabled Resolution Protocol (ARP) SEL-2890 Instruction Manual Date Code 20210715...

  • Page 83: Index

    See also Specifications LED Indications 5.1 Networking Concepts 4.6 Physical Interface twisted pair 5.1 Settings 3.1 SMTP 1.5 Specifications 1.9 TCP/IP 1.1 Terminal Access 1.2 User Interface serial port Console session 1.2 Telnet Console session 1.2 Date Code 20210715 SEL-2890 Instruction Manual...
  • Page 84 This page intentionally left blank...
