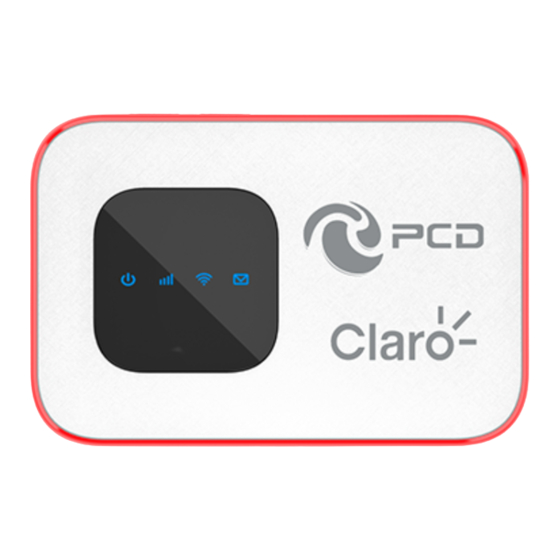

PCD J601 User Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Interface

KEY Definition:



key

Illustrate

1 Power key

Long press over 5 seconds to power on and long press to power off

2 WPS key

Press to active the WPS

7 USB port

Insert USB into LAN port

8 SIM card Slot

Insert SIM card

9 SD card Slot

Insert SD card

10 Reset

The Reset button is on the opposite side of the machine. If you forget Administrator password or

Wireless network key, you can press the Reset key to restore factory default settings.

LED Indication Definition:



J601 User Manual

Table of Contents

Summary of Contents for PCD J601

Page 1 J601 User Manual Interface KEY Definition:  Illustrate 1 Power key Long press over 5 seconds to power on and long press to power off 2 WPS key Press to active the WPS 7 USB port Insert USB into LAN port...
Page 2: Installation
Indicator Color Working Status Green Solid: booting up the device Blink: Turn on-0.5s 3 Power LED Blue Solid: Battery High(100%-60%) or Charge Completed Amber Solid: Battery Middle (60%-15%) Solid: Battery too low nearly shut down (<15%) Blue Blink: Register to LTE(not connect) Solid: Connected to LTE network Green Blink: Register to 3G(not connect)
Page 3 Wi-Fi wireless Internet access In order for a Wi-Fi device to establish a connection with the J601 for the first time, you will need to select the J601SSID (Wi-Fi name) & enter the relevant Wi-Fi password, which you may find in the following ways:...
Page 4 Method Two: Login management page view 1. Computer, open your browser, input http://192.168.1.1 and enter. ●The default Account is ClaroADM ●The default Password is Adm@XXXX ( XXXX are the 2.4G Mac’s last 4-digits Enter the Account and Password, login administration pages 2.
Page 5 SSID and a higher safety factor Wi-Fi passwords Install the driver and connecting the device USB Connection: Windows 7 for example Keep J601 powering on, Plug the device into your computer, it will shows like the following pictures step by step.
Page 6 Double-click the , wait for the installation to complete Check the network card is installed correctly, like the following pictures...
Page 7 Wi-Fi connectivity, the wireless LAN is available. Otherwise, you need to check your wireless network card is working properly. (The following will be 2.4GWi-Fi as an example) In the Wi-Fi list, select the 2.4G SSID or 5G SSID consistent with J601 Wi-Fi, click Connect...
Page 8 Enter the correct 2.4G or 5G Wi-Fi password, click Connect.
Page 10 Wait a moment, Wi-Fi connection is displayed next to the name, Wi-Fi connection is successful...
Page 11 ●Home First part of the main display settings and network status information, such as IPad dress, SIM card status, type and quality of the network signal, whether it is roaming, with or without a new message, and traffic statistics, and system uptime, and so on.
Page 12 You can quickly change the Router Gateway step by step, first set the APN, then change the 2.4G SSID and 5G SSID Modify 2.4G SSID and Wi-Fi password and 5G SSID and Wi-Fi password. At last the Device will restart automatically when you click the confirm button.
Page 13: Apn Setting
1. Connection Preferred Cellular Network: Select the Auto Mode, after you turn on J601 without additional operations, the device will automatically connect to the network; select the Manual Mode, you need to manually connect to the network after opening J601 management page.
Page 14 There are four types of networks can be choose: LTE/WCDMA/GSM is Customer customization, and WCDMA/GSM （Auto）, and WCDMA Only is using only 3G,GSM Only is using only 2G. 4. PIN Open your PIN, if you reboot the device, you need to login management page, and the page will prompted to enter the correct PIN code, you can use the SIM card.
Page 15 Start / End IP address: Changing DHCP assigned IP and IP segments. Lease Time: Each is assigned a time to use the IP name, MAC Address, IP Leased Hosts: J601 each wireless device list and USB device can view the Host Address, information about the Remaining Time. ●SMS When using SIM card to access network, you could also send text messages at the time.
Page 16 1. Basic We can setting the 2.4GWi-Ficonfiguration in this page, like B/G/N mode, Channel, SSID, Wi-Fi KEY and so on. You can also control the opening and closing of 5GWi-Fi, and set up the Wi-Fi Channel .The 5GWi-Fi of J601 supports...
Page 17 If device Wi-Fi Enabled, device supports WPS (Wi-Fi Protected Setup) and you have forgotten or do not wish to enter your password to connect to your J601, you may use the following available procedures for quick access to Wi-Fi. Open the WPS: WPS can be opened by two methods.
Page 18 Using WPS to connecting the J601 (Computer for example): You can press the WPS button on the wireless device or click the PBC button if your wireless network adapter also supports WPS authentication. Waiting for a moment, it will be prompted to connect successfully.
Page 19: Mac Filter
If the connection is successful within 120 seconds, Then you can see like the following picture. 3. MAC Filter...
Page 20: Station List
J601.The computes or wireless devices MAC address which are not in the list can able to connect to J601. Allow list Stations: Opposite with Deny list Stations. It only allows the devices in the list to connect to J601, other wireless devices are unable to connect to the J601 Disable: It means close the function of the MAC Address Filter.
Page 21 1. Firewall You can Disable or Enable the Firewall function. Also you can setting the matching packets rule to receive or reject, Then you can go to the IPV4 Firewall Entries or IPV6 Firewall Entries tab and configure the necessary parameters.
Page 22 IF you choose this function, then you can choose NAT type, and enable IPSEC VPN Pass Through, PPTP VPN Pass Through and L2TP VPN Pass Through. You can enable Web server WWAN Access, then you may access the Public address of the J601 and login J601 home page.
Page 23 DMZ Host: Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. ●System 1. About J601 displays some basic information, such as device name, soft firmware version, IMEI, HW version.
Page 24 2. TR069 The menu shows custom parameters. It is the communication between CPE and ACS.CPE can use this agreement to complete the necessary actions of service opening, function setting, file uploading and downloading, system testing and so on. 3. Configuration...
Page 25: Firmware Upgrade
Restore the factory settings, all of the personal configuration will be deleted, all configuration pages will be restored to the factory defaults. 5. Firmware Upgrade The page allows you to upgrade the router’s firmware. Remote Sever: You can on the routing connection network，check whether there is a new version, if there is a new version was detected, it can automatically upgrade in the background.
Page 26: Date And Time
Modify the login password for administrator interface. Also you can set the time to logout the automatically. 6. Date and Time You can synchronize the time with the host, you can also select the time zone 7. Language...
Page 27: Power Saving
You can change the UI language in this page. 8. Power saving You can change the time of sleep mode or deep sleep mode. In this page you also can disable the Power saving function. Sleep mode: System will enter into the sleep mode, when there is no Wi-Fi client connected to this device. Deep sleep mode: System will enter into deep sleep mode, when there is no Internet access and no Wi-Fi client connected to this device.
Page 28 10.USSD It is a new interactive data service based on GSM network. When you use the phone’s keyboard to type in numbers or symbols that are pre-defined fot the network. You can edid the content on the left, and the results will be returned to the right later. 11.UPNP UPNP means Universal Plug and Play, it is to make all kinds of devices in home network and company network connect with each other seamlessly, and simplify the implementation of related...
Page 29: Safety Warning
Safety Warning Caution:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
