3M

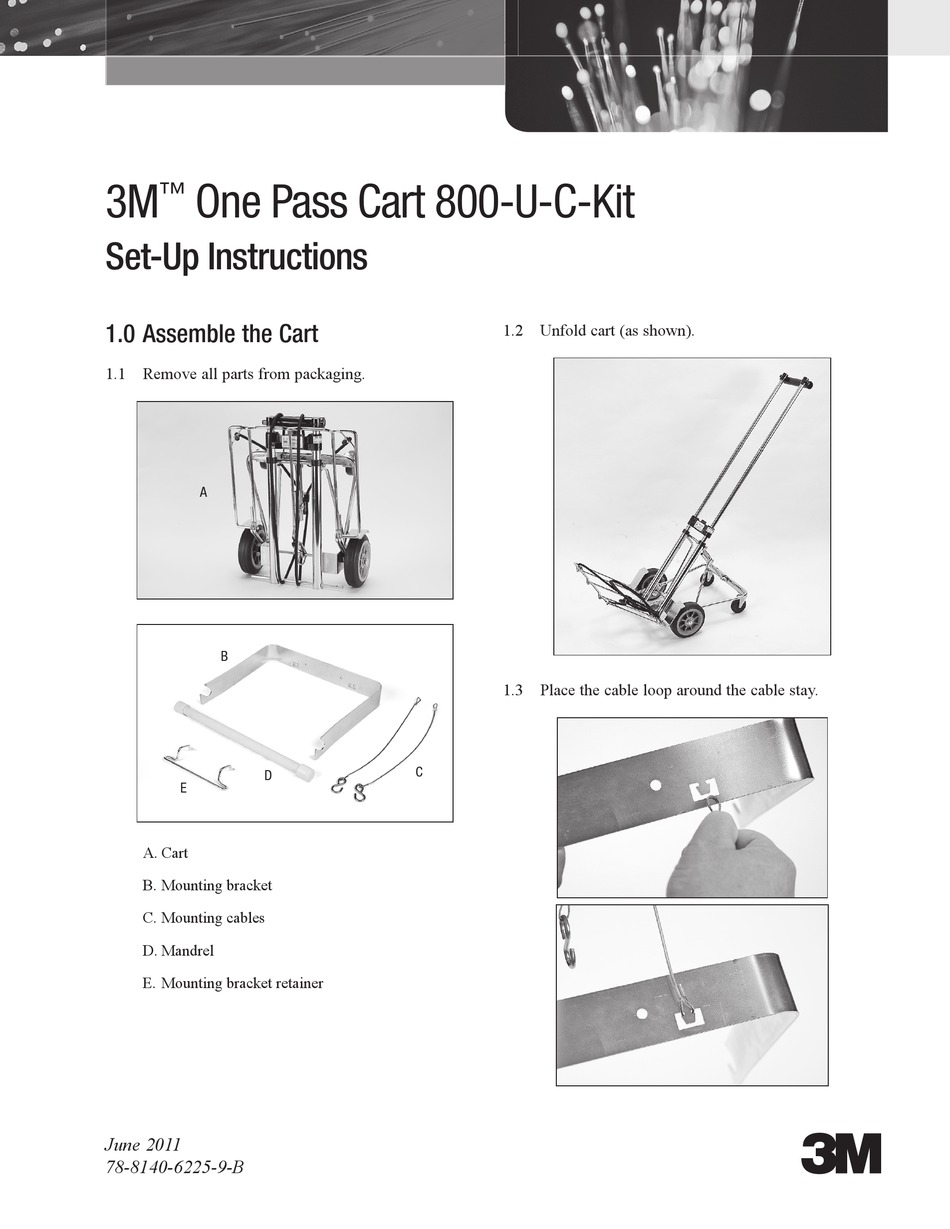

 One Pass Cart 800-U-C-Kit
™
Set-Up Instructions

1.0 Assemble the Cart

1.1 Remove all parts from packaging.

A
B
D
E
A. Cart
B. Mounting bracket
C. Mounting cables
D. Mandrel
E. Mounting bracket retainer
June 2011
78-8140-6225-9-B

1.2 Unfold cart (as shown).

1.3 Place the cable loop around the cable stay.

C
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the One Pass 800-U-C-Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for 3M One Pass 800-U-C-Kit

  • Page 1  One Pass Cart 800-U-C-Kit ™ Set-Up Instructions 1.0 Assemble the Cart 1.2 Unfold cart (as shown). 1.1 Remove all parts from packaging. 1.3 Place the cable loop around the cable stay. A. Cart B. Mounting bracket C. Mounting cables D. Mandrel E.
  • Page 2 Warranty; Limited Remedy; Limited Liability. This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
