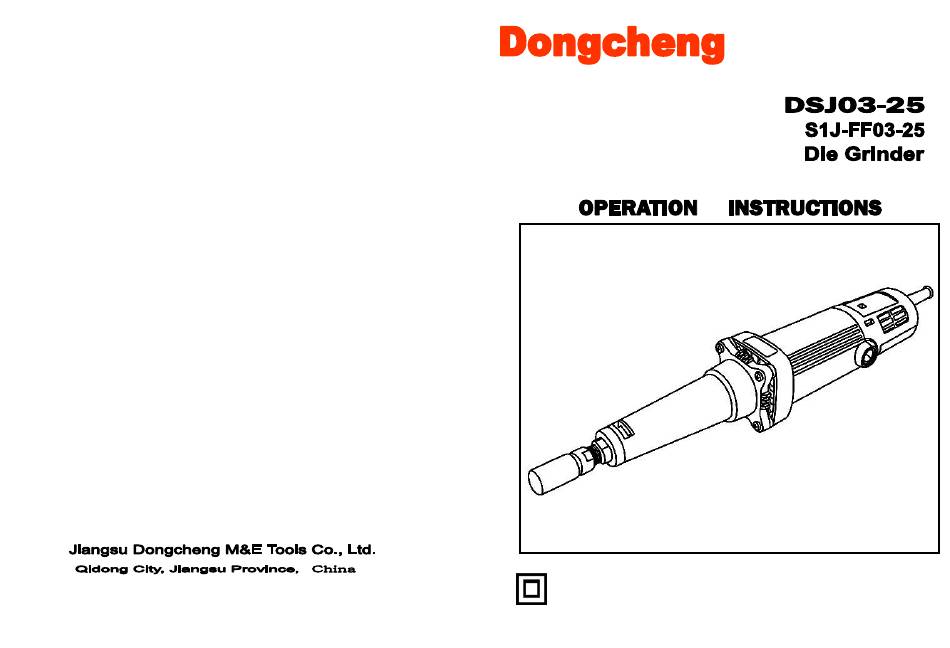

- Page 1 Read through carefully and understand these instructions before use. Edition 4 Aug., 2014...
- Page 2 9. If operating a power in a damp location is unavoidable, use a residual current GENERAL POWER TOOL SAFETY WARNINGS device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE: The term “residual current device (RCD)” may be replaced by the term (For All Power Tools) “ground fault circuit interrupter (GFCI)”...
- Page 3 18. Do not use tool if switch does not turn it on or off. Any power tool that SPECIFICATIONS cannot be controlled with the switch is dangerous and must be repaired. 19. Disconnect the plug from the power source and/or the battery pack from Rated Power Input 400 W the power tool before making any adjustments, changing accessories, or...
- Page 4 9. Always be sure you have a firm footing. Be sure no one is below when using The wheel point should not be mounted the tool in high locations. more than 10 mm from the collet nut. 10. Do not use water or grinding lubricant. Exceeding this distance...
- Page 5 4. Inspecting and replacing the carbon brushes Dressing Wheel Point Remove and check the carbon brushes When the wheel point becomes regularly. Replace when they wear down “loaded” with various bits to the limit mark (Fig. 7). particles, you should dress the wheel Keep the carbon brushes clean and free point with dressing stone.
- Page 6 EXPLANATION OF GENERAL VIEW Collet Nut Brush Holder Cap Collet Carbon Brush Collet Retainer Carbon Brush Holder Drive Spindle Motor Housing Ball Bearing 6000ZZ/C4 Nameplate Circlip for Shaft 10 Rear Cover A Barrel Pan Head Tapping Screw ST4.2×19 Pan Head Tapping Screw ST5×23 Pan Head Tapping Screw ST4×37 Circlip for Shaft 10 Switch...
