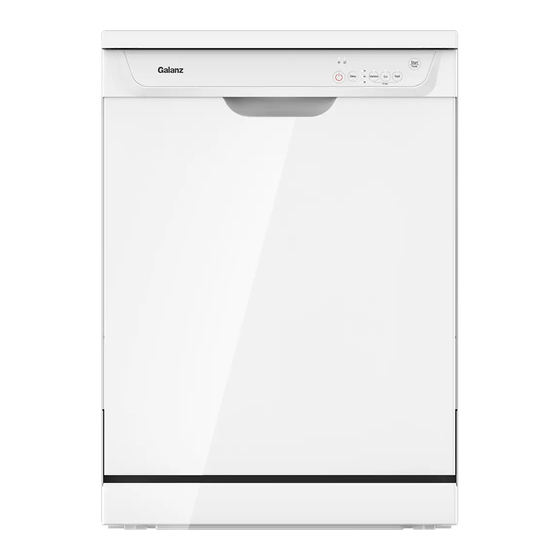

  • Page 1 Domestic Dishwasher SERVICE MANUAL Model W60A1A401D W60B1A401D...

  • Page 2: Table Of Contents

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Contents 1. FEATURES ......................1 2. SAFETY PRECAUTION ..................... 2 3. WASH CYCLE TABLE ....................4 4. HOW TO KEEP YOUR DISHWASHER IN SHAPE............6 5. FAULT FINDING ..................... 7 6. MAINTENANCES SERVICES AND TROUBLE SHOOTING ........... 11 7.

  • Page 3: Features

    Edition: 2012-02 Model: W60A1A401D、 W60B1A401D 1. Features ●A grade for energy consumption of European standard to W60A1A401D. ●A+ grade for energy consumption of European standard to W60B1A401D. ●A grade for washing efficiency of European standard. ●A grade for drying efficiency of European standard.

  • Page 4: Safety Precaution

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 2. Safety precaution At time of delivery --Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay.
  • Page 5 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D appliance could tip forward. --The water inside the dishwasher is not suitable for drinking. --Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger. --Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

  • Page 6: Wash Cycle Table

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 3. Wash Cycle Table W60A1A401D Cycle Selection Description Detergent Running Program Energy(KW/h) Water(L) Information of Cycle Pre/main Time(min) For the heaviest soiled loads, Pre-wash such as pots, pans, casserole Pre –wash Intensive dishes and dishes that have Wash (60 ℃)
  • Page 7 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D W60B1A401D Detergent Running Cycle Selection Description Energy(KW/h) Water(L) Program Pre/main Time(min) Information of Cycle For the heaviest soiled loads, Pre-wash such as pots, pans, casserole Main wash (60 ℃) Intensive dishes and dishes that have...

  • Page 8: How To Keep Your Dishwasher In Shape

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 4. How to keep your dishwasher in shape After Every Wash After every wash, turn off the water supply the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

  • Page 9: Fault Finding

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance. 5. Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.
  • Page 10 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Fill Press “Normal” button The inlet valve work about 1 minute Dispenser Press “Delay” button The dispenser work 60 seconds Motor Auto The washing pump work about 5 seconds Heater Auto The water will be heated up 60℃...
  • Page 11 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D --Blockage or kind in drainage hose. --Pump is jammed. --Filters are blocked. --The programme is still running. Wait for the programme to end ..during washing Unusual amount of foam is creased --Normal washing up liquid has been poured into the rinse-aid container.
  • Page 12 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D --Not enough detergent was added to dispenser. --Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance --Not enough detergent was added to dispenser compartment.

  • Page 13: Maintenances Services And Trouble Shooting

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 6 Maintenances Services and Trouble Shooting 6.1 maintenances services With the aid of the following guide, minor problems can be easily corrected without calling for the assistance, saving you both time and money. Before Calling for Service Reviewing the charts on the following pages may make you be free of calling for service.
  • Page 14 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Use only the special dishwasher detergent to avoid suds. this occurs, open dishwasher suds evaporate. Improper detergent Add 1 gallon of cold water to the Suds in tub. Close and latch the dishwasher, then start the tub "soak"...
  • Page 15 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Using a solution of 1/2 cup of bleach and 3 cups of warm water to remove the stains by hand. WARNING Yellow or Tea or coffee stains You have to wait for 20 minutes brown...
  • Page 16 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 6.2 Error Codes When some malfunctions happen, the appliance will display error codes to warn you. Codes Meanings Possible Causes The door is opened when the Intensive、Normal flash Door open dishwasher is operating Intensive、6h flash...

  • Page 17: Malfunction Diagnostic

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 7. Malfunction Diagnostic Wiring Diagram...
  • Page 18 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 7.1Connector of PCBA...
  • Page 19 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 7.2 Dishwasher Strip Circuits The following individual circuits are for use in diagnoses. Do not continue with the diagnoses of the appliance if a fuse is blown, a circuit breaker is tripped, or if there is less than a 230 volt power supply at the wall outlet.
  • Page 20 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Drain Pump PCBA 90 ℃ thermostat Drain CN1-2 triac door switch 30W max 230V/50Hz 110-120 ohm Fill and Over Flow PCBA CN2-1 CN3-1 inlet valve triac door switch Over Flow 30W max (Pin1 and Pin3 closes in 230V/50Hz normal position;Pin1 and...

  • Page 21: Trouble Shooting Guide

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 8 Trouble shooting guide Water inlet malfunction...
  • Page 22 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Water drainage malfunction...
  • Page 23 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Temperature malfunction E4 Malfunction CN5-6 and CN5-5 short or open circuit? Temperature short or open circuit? Replace control wire Replace TS Power on E4 ? Replace PCB Maintenance record...
  • Page 24 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Overflow Malfunction E5 Malfunction CN3-1 and CN3-2 Tilt the dishwasher short circuit？ backward for 10° Leakage? Overflow floater be locked Replace the overflow switch Replace the leakage Reassemble the component overflow floater Power on Power on...
  • Page 25 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Water leakage malfunction E2: water inlet E3: water drainage E4: Temperature sensor E5: overflow E6: water leakage...
  • Page 26 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Warning Electrical Shock Hazard! Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock. Specifications Electrical Supply: Lower Spray Arm Rotation:32 to42 rpm (Under load)50Hz,220-240VAC Supply Water Flow Rate: Upper Spray Arm Rotation:42 to 52 rpm To fill about 4.0L in 1 minute...

  • Page 27: Net Dimension

    Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D 9. Net dimension Technical data Width 60 cm Depth 60 cm Height 85 cm Capacity 12/14 standard place settings Mains water pressure 0.04-1.0MPa Power voltage 220-240V~ 50Hz Total absorbed power 1850W Maximum current intensity...
  • Page 28 Dishwasher Edition: 2012-02 Model: W60A1A401D、W60B1A401D Sincere Forever ZhongShan Galanz Consumer Electric Appliance Co.,Ltd Maxin Industrial Zone Huangpu Town, Zhongshan, Guangdong 528429, P.R. China http://www.galanz.com...
