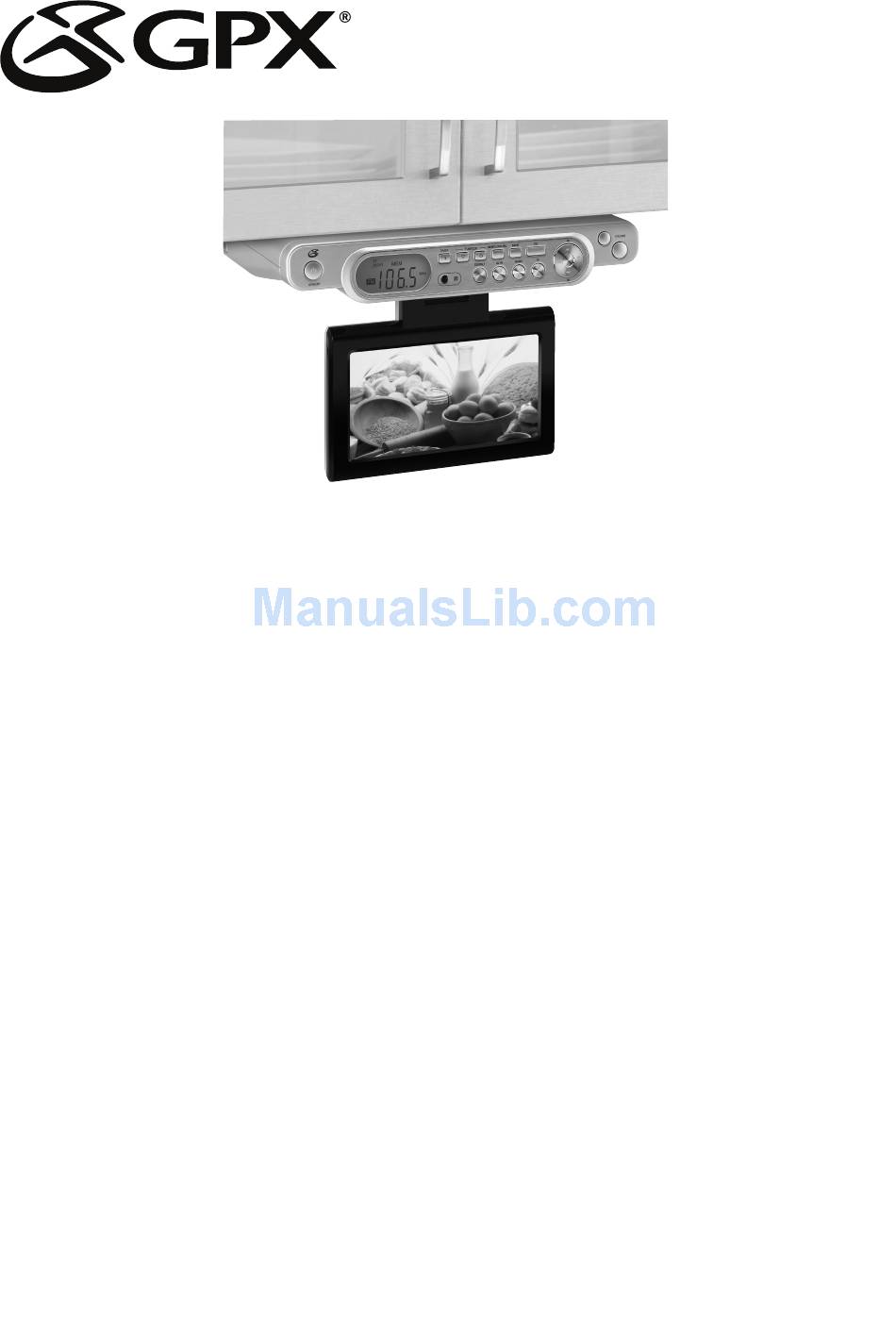

KL858S INSTRUCTION MANUAL Contents Warnings & Precautions 2 Important Safety Instructions 3 What’s in the Box & Features 4 Mounting the Unit & Powering the Unit 5 Setting the Clock 6 Connecting to a TV Signal 7 AM / FM Radio & Station Presets 8 Setting the Timer 9 Audio &... -
Page 2: Warnings & Precautions
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All the safety and operating instruction should be read before the product is operated. 2. Keep these instructions. The safety and operating instruction should be retained for future reference. 3. Heed all warnings. All warning on the product and in the operating instructions should be adhered to. -
Page 4: What's In The Box & Features
• 4 - Spacers • Documentation Features • Adjustable LCD TV Screen • 181-Channel Cable-Ready Tuner • Digital TV Tuner built in • Digital Tune AM/FM Stereo Radio with Station Presets • LCD Display with Blue Backlight • Digital Clock with Timer •... -
Page 5: Mounting The Unit & Powering The Unit
1. To power the unit, simply connect it to an AC outlet using the attached AC cord. . The plastic extensions on the back of the unit provide a holder for excess cord. DC 12V VIDEO IN AUDIO IN FM ANT TV ANT AC 10V / 60Hz... -
Page 6: Setting The Clock
Button to make the selection. The time will blink several times to indicate that the time has been set. 6. Press the Display Button to view the time when in AV Input Mode, Radio Mode, or TV Mode, TIMER TIMER TUNE/CLK MEM/CLOCK ADJ. -
Page 7: Connecting To A Tv Signal
Button. . Lower the LCD TV Screen, and rotate it until it is front facing. 4. Press the TV Button to switch the unit to TV Mode. 4. If an Off Air Antenna connection was made, switch the unit to ATSC Mode by pressing the TV Mode Button. -
Page 8: Am / Fm Radio & Station Presets
Tuning the AM & FM Radio & Creating Station Presets 1. Turn the unit on by pressing the Standby Button. . Press the Radio Button to switch to Radio Mode. . Press the Band Button to select AM or FM radio band. -
Page 9: Setting The Timer
Setting the Timer to Turn the Unit On or Off 1. Press the Timer Button consecutively to change the timer in 10 minute intervals starting at 40. Press the Tune/Clk Buttons to change the timer one minute at a time. . -
Page 10: Audio & Video Inputs
The Audio/Video Inputs on the side of the unit connect in the same way as the inputs on the back. Set-Top Box Audio/Video RCA Cable DC 12V DC 12V VIDEO IN AUDIO IN FM ANT FM ANT Not Included TV ANT TV ANT... -
Page 11: Special Features
LCD Swivel Screen Opening the LCD TV Screen Swiveling the LCD TV Screen Battery Backup Use AAA Batteries to serve as a backup power source for the clock only. (Batteries not included) -
Page 12: Controls & Definitions
Location of Controls: Front View RADIO TIMER TUNE/CLK MEM/CLOCK ADJ. DISPLAY BAND RADIO SCAN MODE... - Page 13 Location of Controls: Side & Back Views DC 12V VIDEO IN AUDIO IN FM ANT TV ANT...
- Page 14 Standby Button Press the Standby Button to turn the unit on and off. LCD Display The LCD displays clock and radio information. LCD TV Screen The LCD TV Screen displays a TV signal as well as TV information. Memory/Clock Adjust Button Press the Memory Button to save a radio station to the unit’s memory.
- Page 15 AC Cord Hooks Use the AC Cord Hooks to wrap and store excess from the AC Cord. TV Antenna Input Use the TV Antenna Input to connect a digital (ATSC) or an analog (NTSC) TV signal to the unit.
- Page 16 Location of Controls: Remote STANDBY FUNCTION AIR/CATV TIMER ENTER VOL. SETUP TUNE/CLK ON/OFF MEM+ BAND DISP TV MODE AUDIO INFO MENU SCAN MEM/CLK WIDE...
- Page 17 EPG Button Press the EPG Button to display the Extended Program Guide. Info Button Press the Info Button to view channel/show information. CH Delete Button Press the CH Delete Button to delete a TV channel from the unit’s memory. To retrieve deleted channels, use the TV Scan Button.
- Page 18 TV Setup Menu To access the TV Setup Menu, press the TV Menu Button. Language Screen Format Time Closed Caption Source Transparent Default MENU English... Auto...
- Page 19 Choose the closed captioning option to be used when watching a digital TV signal. Source Press the Enter Button to use the source option to change the source of the TV signal. Use the source option that best matches your cable providers signal.
-
Page 20: Contact Information
© 007 DPI, Inc. All trademarks appearing herein are the property of their respective owners. All products subject to change without notice. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.gpx.com. Pour télécharger manuel d’instruction en anglais, espagnol,...
