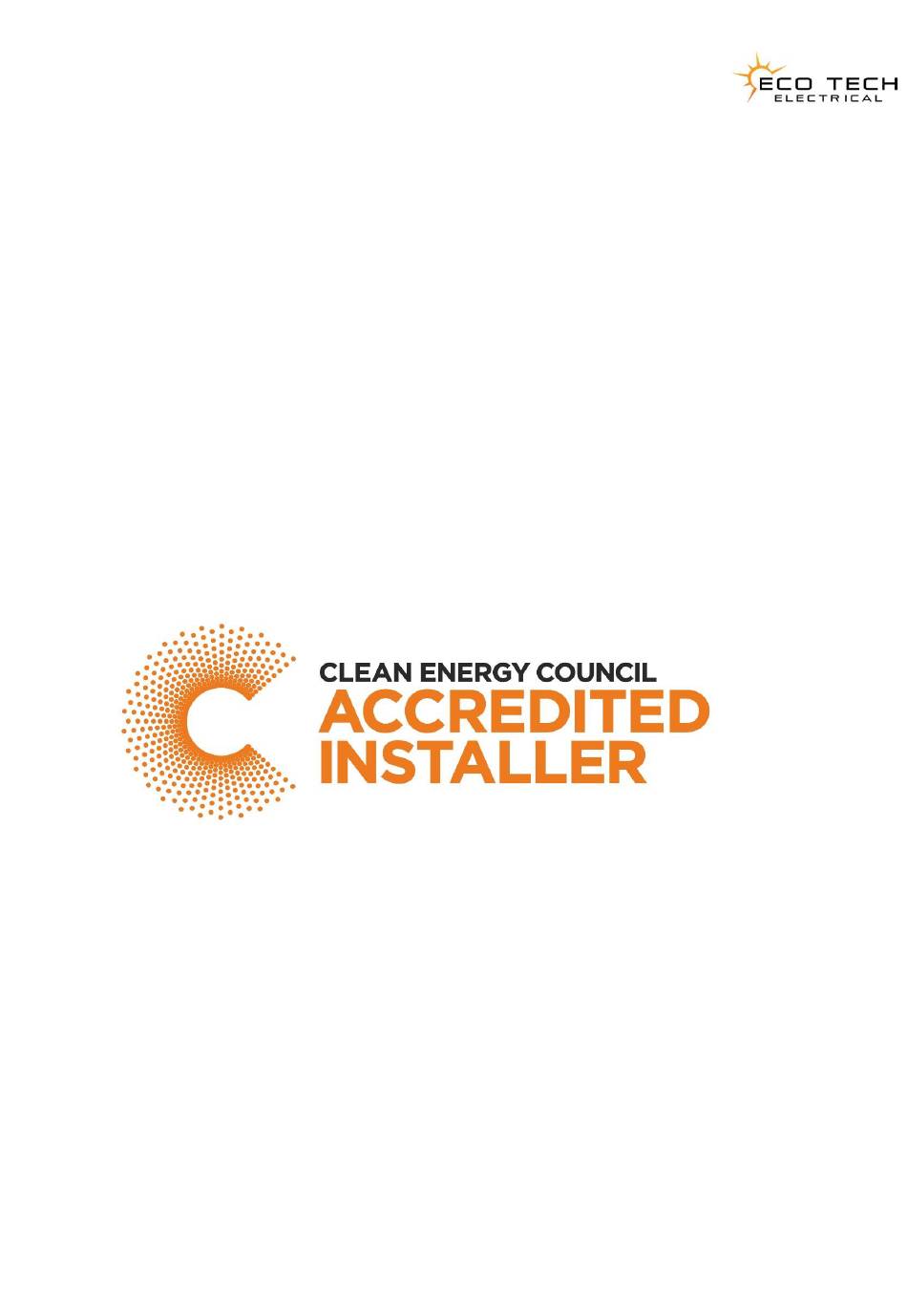

- Page 1 GRID CONNECT SOLAR USER MANUAL Phone: 0499003158 Or 0450696606 Email: info@ecotechelectrical.com.au Web: www.ecotechelectrical.com.au...
-
Page 2: Table Of Contents
GRID CONNECT SOLAR USER MANUAL CONTENTS 1. Introduction----------------------------------------------------------------------------------------3 1.1 Installation process-------------------------------------------------------------------------------3 2. System description----------------------------------------------------------------------------------4 2.1 Private/residential class 1 installs--------------------------------------------------------------4 2.2 Private-residential or small commercial class 2 installs-----------------------------------4 3. System savings----------------------------------------------------------------------------------------5 4. System maintenance--------------------------------------------------------------------------------5 4.1 Maintenance schedule----------------------------------------------------------------------------6 5. System operation procedures and alarms-----------------------------------------------------7 5.1 Start-up procedure---------------------------------------------------------------------------------7... -
Page 3: Introduction
GRID CONNECT SOLAR USER MANUAL 1. INTRODUCTION Thank you for choosing Eco Tech Electrical to install your PV solar system. By choosing to install solar you are offsetting green house gas emissions which when in a surplus are detrimental to the environment and atmosphere. -
Page 4: System Description
GRID CONNECT SOLAR USER MANUAL 2. SYSTEM DESCRIPTION The sun produces photons which your solar panel cells capture and then produce a flow of electricity into the metal strands of the module through your array of panels down to your inverter which converts the voltage type from DC to AC which runs through your premises. -
Page 5: System Savings
GRID CONNECT SOLAR USER MANUAL Solar systems work best when the sun is shining directly down on the panels and the ambient temperature is cooler. The panels will still generate power as long as there is enough ambient light even on cloudy days. It will shut itself down over night once there isn’t enough light to keep the inverter running and start itself up in the... -
Page 6: System Maintenance
GRID CONNECT SOLAR USER MANUAL The average home in the NT uses around 25kwh per day which would amount to a system just over 5kw’s worth, so in order to at least break even you would need a system of this size as a minimum which wold save approximately $2360.00 per annum. -
Page 7: Maintenance Schedule
GRID CONNECT SOLAR USER MANUAL 4.1 Maintenance schedule Maintenance schedule Component What to Inspect Quarterly Anually 5 Yearly Solar Panels Clean panels for dust and bird droppings Inspect for panel discolouration and micro cracks Monitor shading issues that may develop over time Check for corrosion of frame and any visual defects Inverter &... -
Page 8: System Operation Procedures And Alarms
GRID CONNECT SOLAR USER MANUAL Note: All maintenance work should be carried out by a licensed electrician as dangers of electric shock may be present under inspection conditions, as solar modules remain live and cannot be turned off. 5. SYSTEM OPERATION PROCEDURES AND ALARMS 5.1 Turning inverter on... -
Page 9: Earth Fault Alarm
22.5kwh per day (depending on shade and other factors). If your system is producing close to zero kWh per day try turning the inverter on and off again as mentioned above, if this fails to rectify the problem please contact Eco Tech Electrical. 5.4 Earth fault alarm In the event of an earth fault alarm which may be recognised by one of the following: 1. -
Page 10: Inverter Faults And Diagnosis
2. If there is a fault code on the display screen, there is a fault diagnosis section in the inverter manual that will tell you what is wrong. 3. If all else fails contact Eco Tech Electrical. Note: keep in mind if there is some type of grid failure the inverter will not turn on at all until the grid has been re-energised. - Page 11 GRID CONNECT SOLAR USER MANUAL 6.1 Guarantees applying to goods A supplier and a manufacturer guarantee that: • Goods are of acceptable quality • Goods will match any description provided • Any express warranties will be honoured. A supplier guarantees that a consumer is buying goods: •...
