BD707B-IB

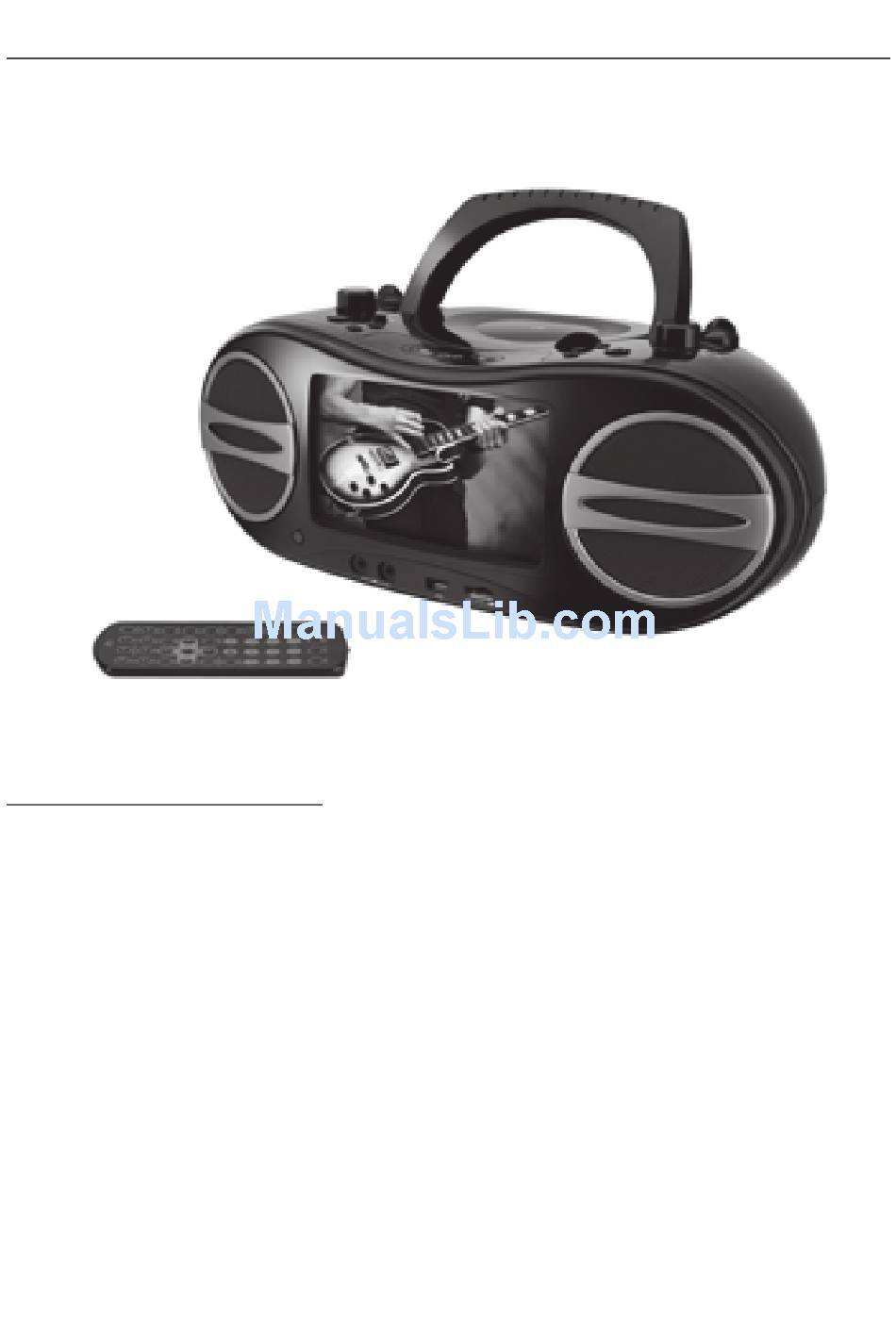

Portable Movie & Music System
C o n t e n t S
Warnings and Precautions ........................ 2
Important Safety Instructions ..................... 3
Video output ..............................................4
Playing a DVD or CD ................................. 5
Playing the AM or FM Radio ...................... 5
Locations of Controls & Definitions.........6-9
Setup Menu ........................................ 10-11
Service & Parts Information ..................... 12
Advertisement
Related Manuals for GPX BD707B
Summary of Contents for GPX BD707B
-
Page 1: Table Of Contents
Portable Movie & Music System C o n t e n t S Warnings and Precautions ... 2 Important Safety Instructions ... 3 Video output ...4 Playing a DVD or CD ... 5 Playing the AM or FM Radio ... 5 Locations of Controls &... -
Page 2: Warnings And Precautions
Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Important Safety Instructions
Important Safety Instructions Read Instructions - All the safety and operating instruction should be read before the product is operated. Retain Instructions - The safety and operating instruction should be retained for future reference. Heed Warnings - All warning on the product and in the operating instructions should be adhered to. -
Page 4: Video Output
Video output Step 1. When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Yellow to Yellow) Step 2. Plug one end of the RCA Video Cable (not included) into the Video Output on the unit. -
Page 5: Playing A Dvd Or Cd
Playing a DVD or CD Step 1. Turn the DVD/OFF/RADIO Dial to the DVD position. Step 2. Open the DVD/CD door, and insert the DVD or CD to be played. Step 3. Press the Play Button to begin playing the loaded disc. Playing the AM or FM Radio Step 1. -
Page 6: Locations Of Controls & Definitions
Locations of Controls... - Page 7 Controls Defined DVD/OFF/RADIO Switch the player between DVD, Off, and Radio mode. VOLUME Turn clockwise to increase the volume and counter-clockwise to decrease the volume. DBBS Press the DBBS button to activate the Dynamic Bass Boost System. MENU Press the MENU button to Adjust the color, brightness, and contrast on the TFT-LCD Display. NEXT/PREV Press NEXT or PREV button to skip forward or backward through chapters of a movie or through images on a JPEG disc.
- Page 8 Locations of Controls...
- Page 9 Controls Defined 29 USB/DVD Press the USB/DVD to switch between USB and DVD modes. 30 A-B Press the A-B button once to mark a starting point during a DVD. Press the button a second time to mark an ending point. After doing so the DVD will loop that section of video. Press the button a third time to cancel this function.
-
Page 10: Setup Menu
Setup Menu To enter the setup menu, press the Setup Button on the remote control. SYSTEM SETUP LCD MODE 4:3 The 4:3 ratio shows the DVD movie in a converted format. In this for mat you will see less of the DVD movie than in 16:9 ratio. 16:9 The 16:9 ratio shows the DVD movie in its original format. - Page 11 Setup Menu AUDIO SETUP AUDIO OUT SPDIF/OFF, SPDIF/RAW, or SPDIF/PCM. Select “SPDIF/OFF” unless connecting to a receiver via the digital coaxial or digital optical audio out- put. VIDEO SETUP Adjust the Brightness, Contrast, Hue, and Saturation of the TFT- LCD Display. SPEAKER SETUP DOWNMIX LT/RT or Stereo.
-
Page 12: Service & Parts Information
Address: 2116 Carr Street, St. Louis MO, 63106 Phone: 1-314-621-2881 Fax: 1-314-588-1805 Email: prodinfo@gpx.com Website: www.gpx.com Version: v.070308 To download this Instruction Manual in English, Spanish, or French visit the Support section at www.ilive.net. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayuda en www.ilive.net.
