This manual shows how to operate the MIFARE SAM AV3 Evaluation board

Revision history

Rev Date

1.0

2022- 01-19

User manual COMPANY PUBLIC

Information provided in this document is subject to legal disclaimers

Description

Initial version

Rev. 1.0 19-JAN-2022

User Manual

MIFARE SAM AV3 Evaluation Board

Table of Contents

Need help?

Do you have a question about the MIFARE SAM AV3 and is the answer not in the manual?

Questions and answers

Summary of Contents for GMMC MIFARE SAM AV3

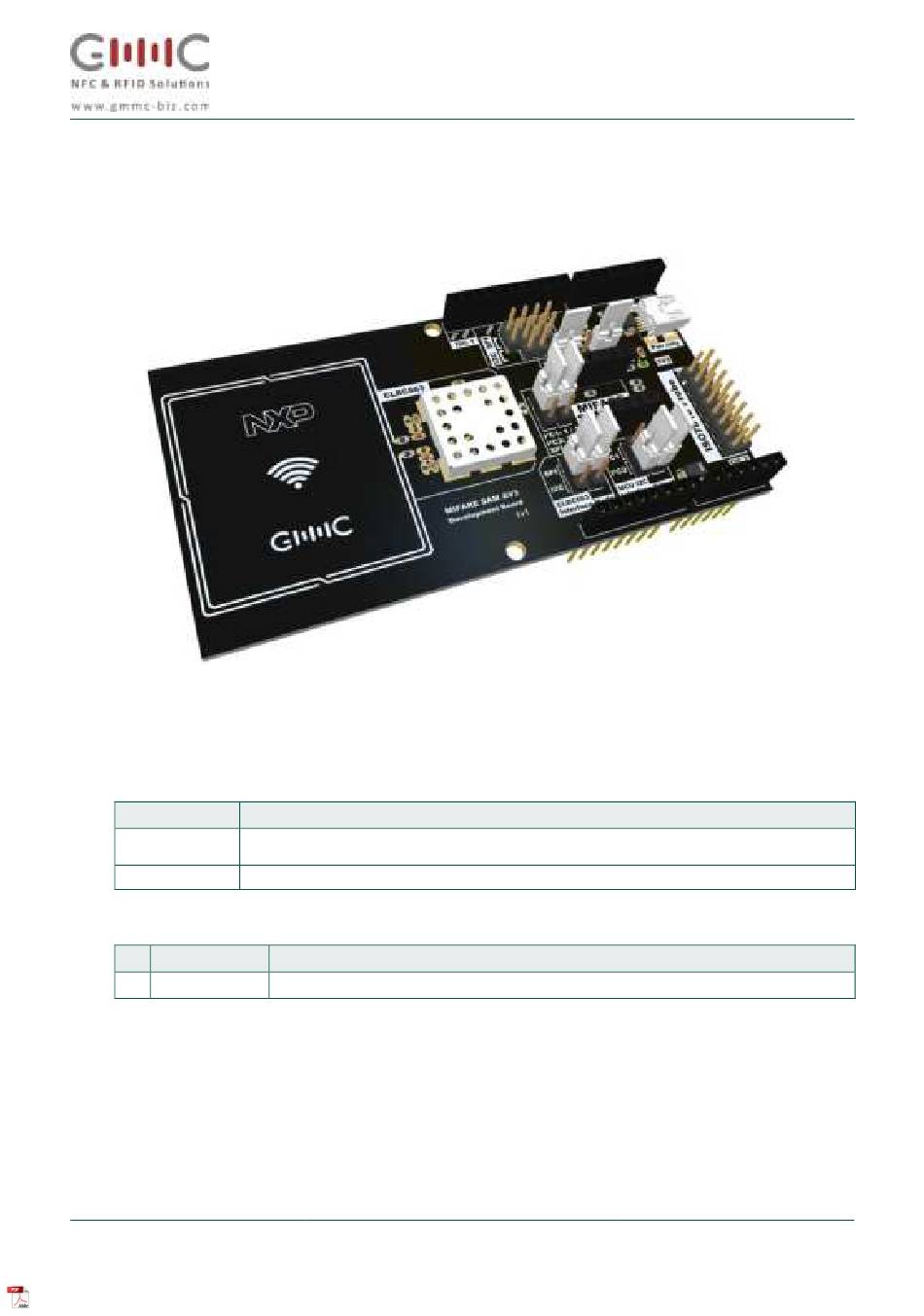

Page 1 MIFARE SAM AV3 Evaluation Board Document information Information Content Keywords MIFARE SAM AV3, evaluation board, Direct Mode (X-mode), Satellite Mode (S-mode), I²C, SPI, ISO/IEC 7816, CLRC663 family, MCU, Arduino Abstract This manual shows how to operate the MIFARE SAM AV3 Evaluation board Revision history...
Page 2 1 Introduction The MIFARE SAM AV3 Arduino shield shaped evaluation board is designed to help evaluate the features and of the MIFARE SAM AV3 IC in combination with any MCU and to quickly and easy development secure contactless tag applications.
Page 3 The necessary compliance information label can be found at the bottom of the PCB. There are to possible options. Silk screen and label or silk screen only. Figure 1 Label location User manual COMPANY PUBLIC Rev. 1.0 19-JAN-2022 Information provided in this document is subject to legal disclaimers © GMMC GmbH. 2020. All rights reserved.
Page 4: Figure 2: Mifare Sam Av3 Evaluation Board Block Diagram
User Manual MIFARE SAM AV3 Evaluation Board 3 Block Diagram Figure MIFARE SAM AV3 evaluation board Block Diagram Figure Building Blocks and connectors Figure 4: typical development setup User manual COMPANY PUBLIC Rev. 1.0 19-JAN-2022 Information provided in this document is subject to legal disclaimers...
Page 5: Figure 5: Arduino Header Pin Assignment
Power management Figure 6: Power Management The MIFARE SAM AV3 evaluation board is equipped with a mini-USB connector to power the system. The port is used only to provide for power only. The entire board can be powered by either the USB port or the 5 V line on the Arduino header.
Page 6: Figure 7: Clrc663 Communication Interface Selection
The SPI-Interface is directly connected to the Arduino header, the I²C interfaces are meant to be used by the MIFARE SAM AV3 for its X-mode. Jumper setting details can be found in the section jumper settings in this document User manual COMPANY PUBLIC Rev.
Page 7: Figure 9: I²C Interface Selection With Protection
5 MIFARE SAM AV3 – Add-on Board Add-on board The MIFARE SAM AV3 itself is placed on an add-on board, to be able to easily exchange the MIFARE SAM AV3 in case it has been misconfigured. The pullups for the MCU_I²C_xxx interface, as well as the voltage level divider are placed on the add-on board.
Page 8: Figure 12: Mifare Sam Av3 Jumper Options
6 MIFARE SAM Evaluation Board - Jumper Setting Figure 12: MIFARE SAM AV3 Jumper options The MIFARE SAM AV3 evaluation board comes with 3 different colors of Jumpers: • GREEN: Configuration of RC663 interfaces • YELLOW: MCU board I²C interface selection •...
Page 9: Figure 14: Jumper Settings Spi Or I²C Host Interface Mode
6.1.1 In case I²C is selected, the CLRC663 will be controlled by the MIFARE SAM AV3 in X- mode. The 4 jumpers need to be inserted in the 10 pin header as shown, these correspond to the ADR0 and ADR1 pins on the CLRC663 host interface in I²C configuration.
Page 10: Figure 16 Sam Av3 Vdd And Iso7816 Selection
VDD is selected on JP9, the options are permanent 3V3 or IO6 on the Arduino header. Permanent 3V3 means that the MIFARE SAM AV3 will stay in the state it is, until the whole board is power cycled. The ATR of the SAM only needs to be retrieved once.
Page 11 I²C processing clock speed: 6 MHz This reduces the I²C communication speed on the X-mode interface to ~400 kbit/s. All details about the MIFARE SAM AV3 configuration and features can be found in the respective NXP documents. User manual COMPANY PUBLIC Rev.
Page 12: Figure 17: X-Mode Configuration Example
8 Modes of Operation X-Mode The easiest way to get started with the MIFARE SAM AV3 evaluation board is to operate the MIFARE SAM AV3 in X-mode. See an example configuration below where the SAM can be accessed via the I²C1 interface from the MCU, and will communicate to the CLRC663 via its host interface, configured as I²C.
Page 13: Figure 19: Xs-Mode Configuration
In this configuration, the CLRC663 is connected on its host interface via SPI to the MCU, and on the second interface via I²C to the SAM. The MIFARE SAM AV3 is connected via I²C1 to the MCU. In this way, the MCU can control the CLRC663's LPCD procedure, and if a card is detected, the SAM can be switched on and take over the control over the CLRC663.
Page 14: Table Of Contents
ISO7816 ID1 to SIM-SAM Adapter Table of Figures Figure 1 Building Blocks and power supply _______________________________________________________ 3 Figure 2: MIFARE SAM AV3 evaluation board Block Diagram _________________________________________ 4 Figure 3 Building Blocks and connectors _________________________________________________________ 4 Figure 4 typical development setup _____________________________________________________________ 4...
Page 15 2. Application Notes – please visit NXP.com The document content may see additions and modifications in future releases. GMMC GmbH does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information.
