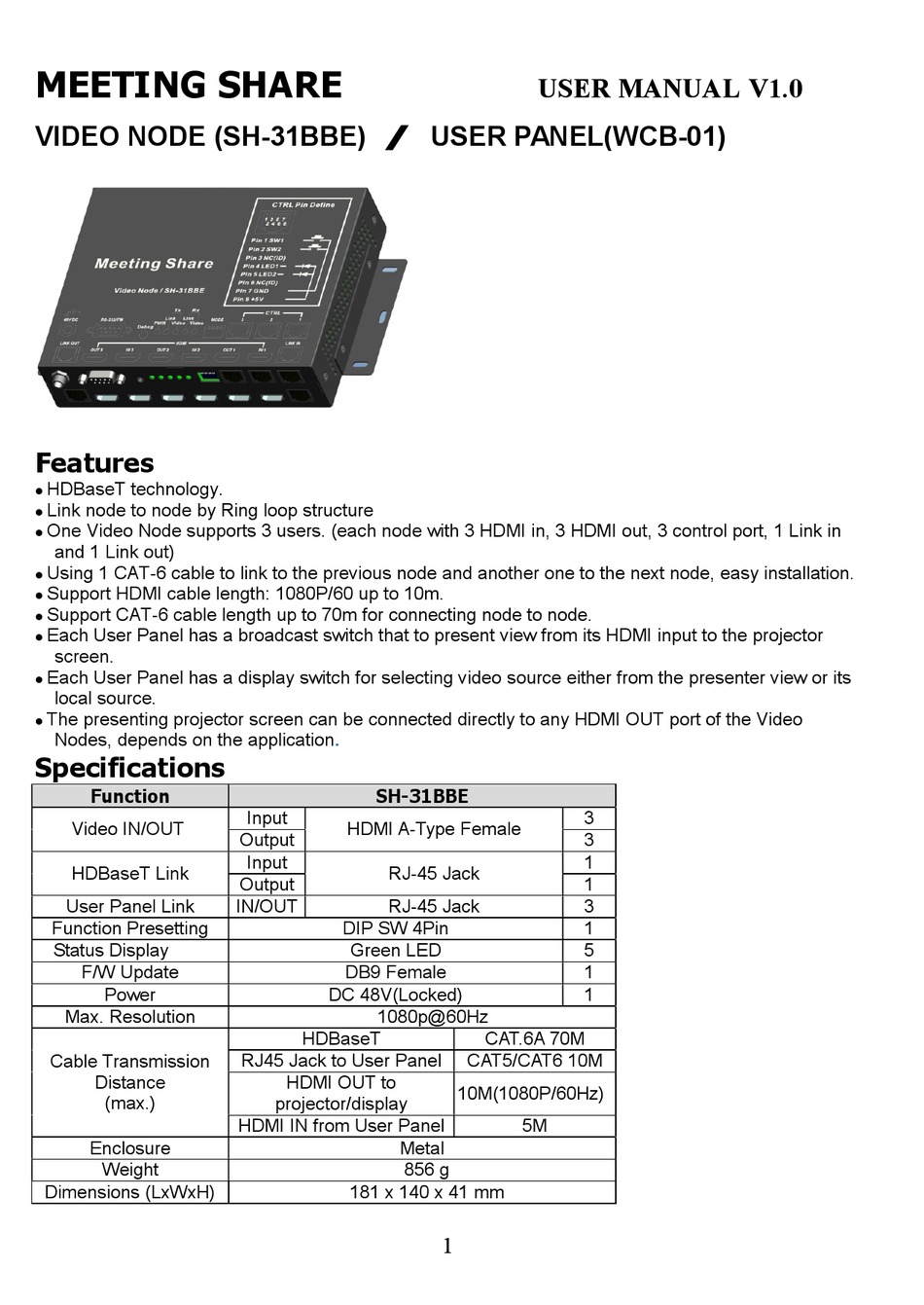

Elite Image MEETING SHARE User Manual

MEETING SHARE
VIDEO NODE (SH-31BBE) / USER PANEL(WCB-01)

Features

HDBaseT technology.

Link node to node by Ring loop structure

One Video Node supports 3 users. (each node with 3 HDMI in, 3 HDMI out, 3 control port, 1 Link in

and 1 Link out)
Using 1 CAT-6 cable to link to the previous node and another one to the next node, easy installation.

Support HDMI cable length: 1080P/60 up to 10m.

Support CAT-6 cable length up to 70m for connecting node to node.

Each User Panel has a broadcast switch that to present view from its HDMI input to the projector

screen.
Each User Panel has a display switch for selecting video source either from the presenter view or its

local source.
The presenting projector screen can be connected directly to any HDMI OUT port of the Video

Nodes, depends on the

Specifications

Function
Video IN/OUT
HDBaseT Link
User Panel Link
Function Presetting
Status Display
F/W Update
Power
Max. Resolution
Cable Transmission
Distance
(max.)
Enclosure
Weight
Dimensions (LxWxH)
application.
SH-31BBE
Input
HDMI A-Type Female
Output
Input
RJ-45 Jack
Output
IN/OUT RJ-45 Jack
DIP SW 4Pin
Green LED
DB9 Female
DC 48V(Locked)
1080p@60Hz
HDBaseT
RJ45 Jack to User Panel
HDMI OUT to
projector/display
HDMI IN from User Panel
181 x 140 x 41 mm
USER MANUAL V1.0
CAT.6A 70M
CAT5/CAT6 10M
10M(1080P/60Hz)
5M
Metal
856 g
1
3
3
1
1
3
1
5
1
1
