STEP 4:
FENCE RAILS
Attach the fence rails to posts as shown.
F15
First attach the corner posts, allow a few
minutes for the glue to set, then attach
the remaining posts.
F11
F12
F13
F11
F6
F14
F4
STEP 5:
DECKING
Place the deck panels as shown.
STEP 6:
SWING GATES & LADDERS
Assemble the gates and as shown in inset
then place as depicted below.
Attach ladders to sides of loading dock.
G2
G4
G1
G3
©2013 TW TRAINWORX • Dallas, TX • MADE IN U.S.A.
F21 F17
F18
F8a
F8b
F16
F9
F7a
F10
F6
F5
F1
NOTE: Attach the fence rails so they
are facing the INSIDE of the corral.
F2
G6
G5
G7
G8
G9
For all of our
GREAT products
visit us online at
www.twtrainworx.com
F7b
F3
F20

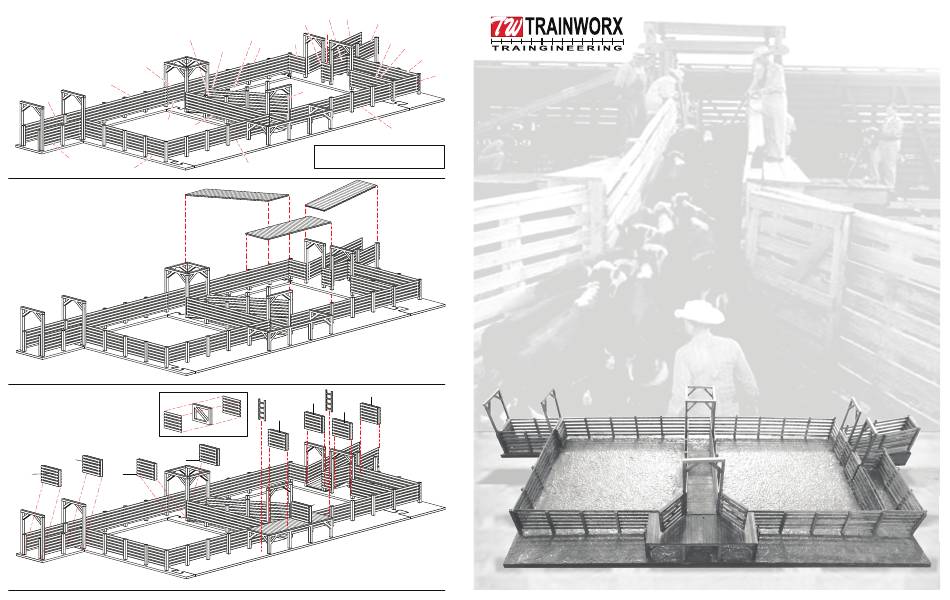

CORRAL / STOCK PEN KIT
© 2 0 1 3 T W T R A I N W O R X
CLS-87520
ASSEMBLY INSTRUCTIONS
•
2 8 0 8 M c G o w a n S t r e e t
•
D a l l a s , T e x a s 7 5 2 0 3
CLS-87520
•
( 8 7 7 ) 8 8 1 - 4 9 9 7
•
M A D E I N U . S . A .
