ADEN POWERKIT SPORT Instruction And Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION AND
ASSEMBLY MANUAL
POWERKIT SPORT
ADEN GmbH
www.aden-sports.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the POWERKIT SPORT and is the answer not in the manual?

Questions and answers

Summary of Contents for ADEN POWERKIT SPORT

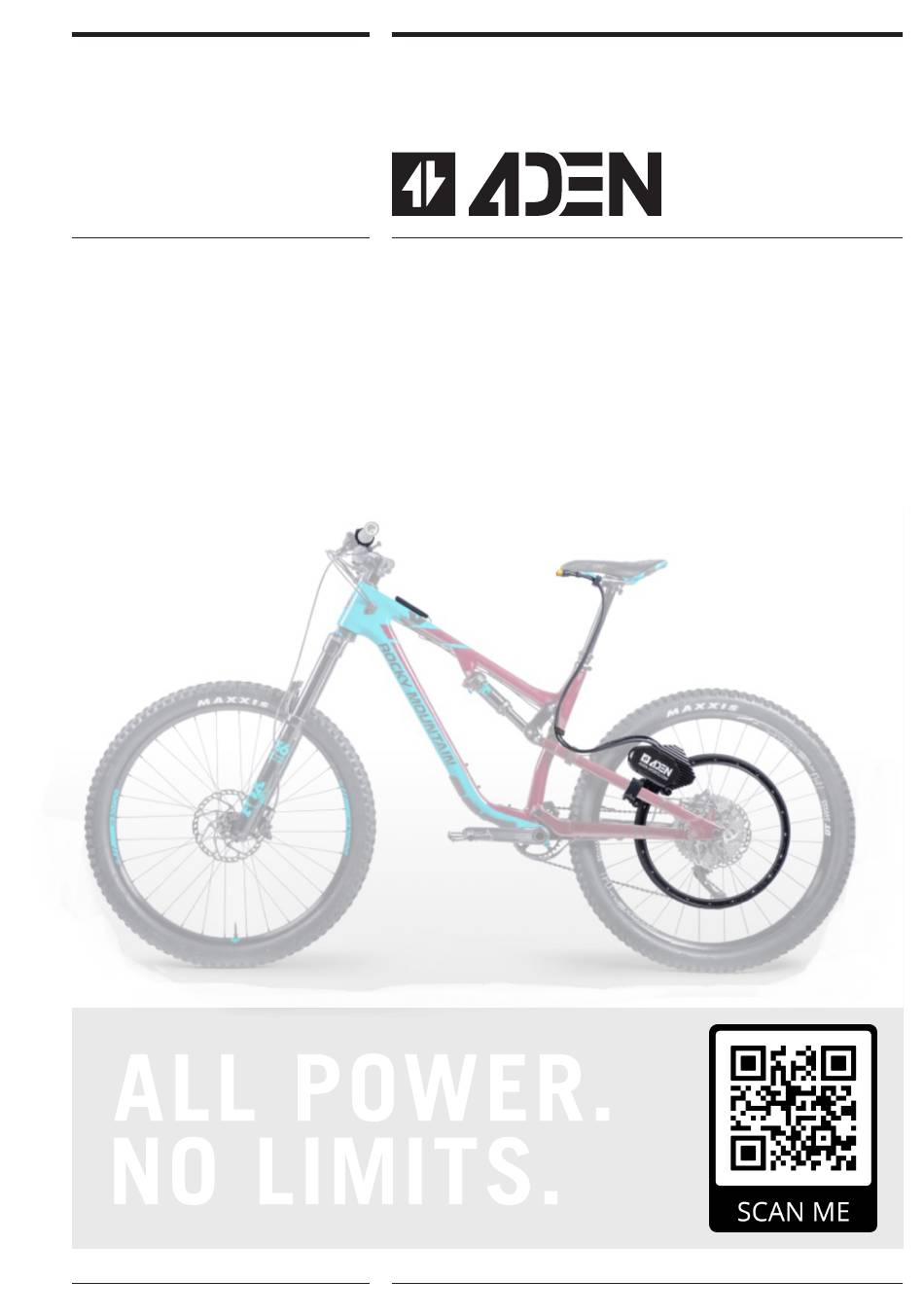

  • Page 1 INSTRUCTION AND ASSEMBLY MANUAL POWERKIT SPORT ADEN GmbH www.aden-sports.com...

  • Page 2: Table Of Contents

    POWERKIT SPORT- ASSEMBLY INSTRUCTIONS CONTENT Table of content Important details ............3 Bike view and scope of delivery......... 4 Assembly ..............5 Commissioning and Battery Use ......11 Service and care ............ 13 Change of translation …………………………………14 Terms and conditions ..........16 Contact ..............
  • Page 3 Please store this manual in a safe place for future reference. If you sell your ADEN Powerkit at a later stage, make sure that the buyer receives this manual. The latest version of the assembly instructions is always available on our website www.aden-sports.com...

  • Page 4: Important Details

    POWERKIT SPORT- ASSEMBLY INSTRUCTIONS Important details ADEN Powerkit are not accredited for the public road traffic. We also expressly recommend that you only ride with appropriate protective clothing (helmet, gloves and sturdy shoes). After a fall, it is particulary important to inspect the helmet and bike thoroughly for possible damage.

  • Page 5: Bike View And Scope Of Delivery

    Bike view and scope of delivery (The Bike is not included in the scope of delivery Powerkit Sport included: drive ring, backpack with storage battery and a charging device, thumb lever/ twist grip, drive unit, battery indicator and diverse bits and pieces.

  • Page 6: Assembly

    POWERKIT SPORT-ASSEMBLY INSTRUCTION ASSEMBLY Needed tools: » Allen key size 2,5 » Allen key size 3 » Allen key size 4 » TX 20 screwdriver » Pocket rule » Side cutter » Cable tie Assembly Put the bicycle on an assembly stand or turn it upside down.
  • Page 7 POWERKIT SPORT-ASSEMBLY INSTRUCTION ASSEMBLY Fix the frame bracket to the upper seat stay (Allen key size 4). The ideal distance to the centre of the axle is 21.5 cm - 22.5 cm. Please choose the appropriate screw length. Note: There should be sufficient distance between lever and plastic ring, at least 1 cm.
  • Page 8 POWERKIT SPORT- ASSEMBLY INSTRUCTION ASSEMBLY A cable tie is used to finally center the drive ring attached to the swing arm, place it on the ring and check the concentricity of the ring. The belt ring is brought into the correct position by pressing or lightly tapping it with a blunt object.
  • Page 9 POWERKIT SPORT-ASSEMBLY INSTRUCTION ASSEMBLY Wrong position !!! So that the motor does not hang on the gear wheel as in the picture, you can turn the drive unit by means of 3 screws. First you remove the pinion guard with an Allen key size 3 and then the pinion with an Allen key size 4.
  • Page 10 POWERKIT SPORT-ASSEMBLY INSTRUCTION ASSEMBLY Use an Allen key size 4 to move the torque arm so that the holding rod fits between them. Then tighten the screws well (approx. 3Nm) The fastening bolt is screwed into the torque arm with an Allen key size 4.
  • Page 11 POWERKIT SPORT-ASSEMBLY INSTRUCTION ASSEMBLY There is also an optional twist grip, which is always mounted on the right side of the handlebar with a Allen key size 3. The cables are laid as in the previous point. Connect the plugs from the thumb lever and the indicator to the drive.

  • Page 12: Commissioning And Battery Use

    POWERKIT SPORT- ASSEMBLY INSTRUCTION COMMISSIONING AND BATTERY USE The cable from the drive is passed between the legs and connected to the battery cable. After approx. 5 seconds the drive is active. It should always be ensured that the plug is firmly connected! If you fall or get off the bike, the connection is disconnected for safety reasons.
  • Page 13 POWERKIT SPORT- ASSEMBLY INSTRUCTION BATTERY USE Battery almost empty - please charge! The Powerkit automatically regulates the power down when the battery level is below 20%. USING THE CHARGER The charger is connected to a socket with the power plug and then the yellow plug is connected to the battery.

  • Page 14: Service And Care

    » Check the spoke tension and » Check all cables for damage. In any case, maintain the ADEN Powerkit regularly. If you have any questions we can be reached by phone or email. You can find spare and wear parts in our online shop at www.aden-sports.com/shop.

  • Page 15: Change Of Translation

    POWERKIT SPORT- ASSEMBLY INSTRUCTION GENERALBUSINESS CONDITION Allgemeine Geschäftsbedingungen Art. 6 Haftung auf Schadensersatz Art.1 Geltungsbereich und Vertragsgrundlagen Diese allgemeinen Geschäftsbedingungen gelten für alle Leistungen und Lieferungen nur Im Fall unserer Haftung auf Schadensersatz gilt folgendes: gegenüber Verbrauchern im Sinne von § 13 BGB.

  • Page 16: Contact

    POWERKIT SPORT_ ASSEMBLY INSTRUCTION CONTACT Kontakt ADEN GmbH Kranzhaldenstr. 23 · 73249 Wernau · GERMANY Telefon:+49 (0) 7153 7036300 00 info@aden-sports.com aden-sports.com facebook.com/adensports ADEN GmbH www.aden-sports.com EN | S. 16...
