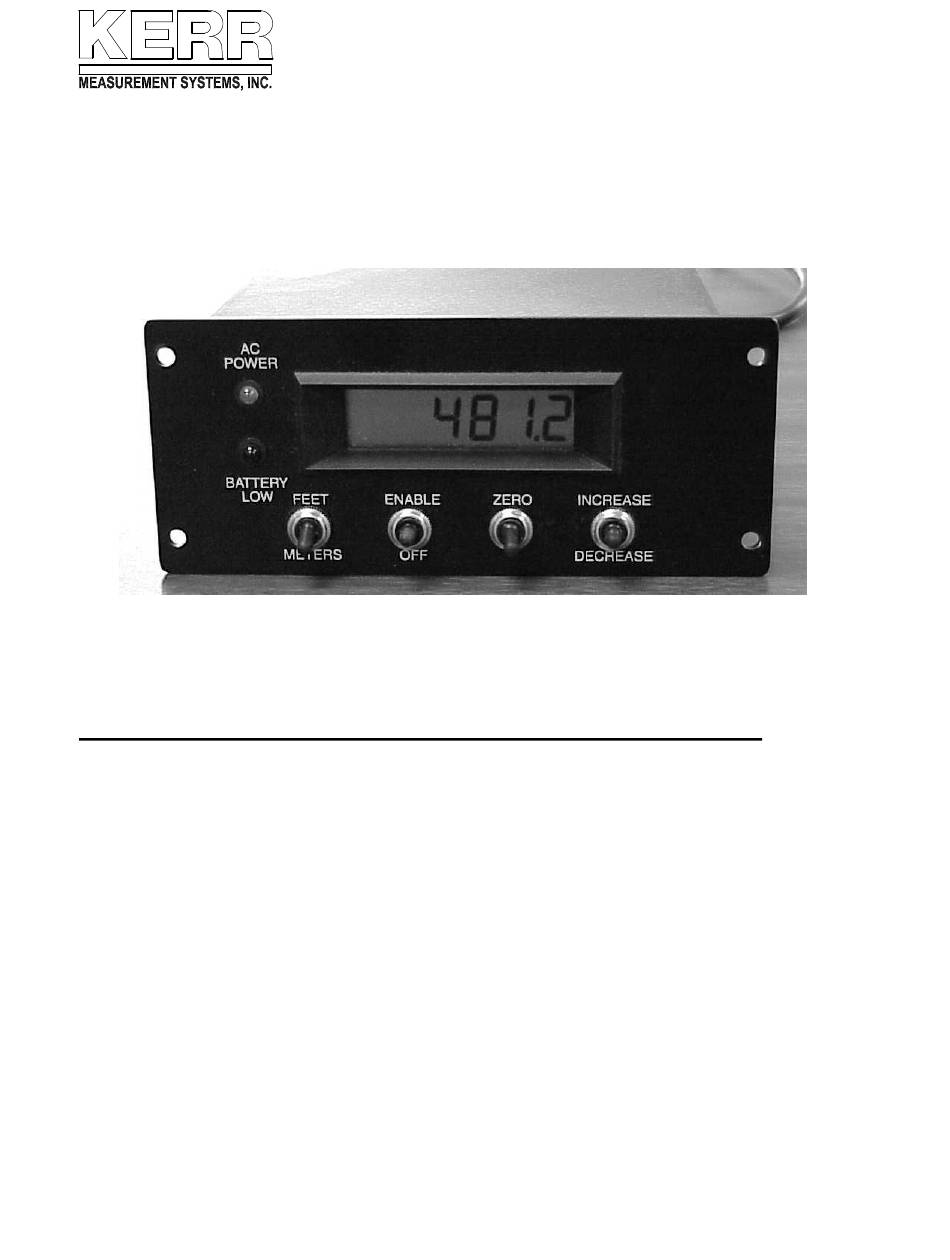

AM5KP060 BACKUP DISPLAY UNIT
Operations and Maintenance Manual
SECTION
1.0
2.0
3.0
4.0
5.0
6.0
Property of Kerr Measurement Systems Inc.
6415 Reading Road
Rosenberg, TX 77471
Phone:
281-342-6415
Fax:
281-342-4848
Homepage: www.kerrms.com
E-Mail: mail@kerrms.com

TABLE OF CONTENTS

DESCRIPTION
PROCEDURE
Page 1 of 15 Rev A.
Mar-2002

Advertisement

loading
Need help?

Need help?

Do you have a question about the AM5KP060 and is the answer not in the manual?

Questions and answers

Summary of Contents for KERR AM5KP060

  • Page 1: Table Of Contents

    AM5KP060 BACKUP DISPLAY UNIT Operations and Maintenance Manual TABLE OF CONTENTS SECTION DESCRIPTION GENERAL DESCRIPTION DESCRITION OF FEATURES INSTALLATION PROCEDURES OPERATING PROCEDURES SERIAL PORT COMMUNICATION PROCEDURE SPECIFICATIONS AND DIAGRAMS Property of Kerr Measurement Systems Inc. Page 1 of 15 Rev A. Mar-2002...

  • Page 2: General Description

    If the magnetic pickup is subjected to vibration, the displayed value may oscillate or yo-yo. If the displayed value yo-yos, the system uses an anti-yo-yo algorithm to set a value so that the unit can power off. Property of Kerr Measurement Systems Inc. Page 2 of 15 Rev A. Mar-2002...

  • Page 3: Descrition Of Features

    Hold both the enable and the increase/decrease switches up and the display value increases Hold the enable switch up, and the increase/decrease switch down and the display value decreases. Property of Kerr Measurement Systems Inc. Page 3 of 15 Rev A. Mar-2002...
  • Page 4 00: Magnetic pickup Underflow. This is displayed if the count is below the lowest allowed value 01: Magnetic pickup Overflow. This is displayed if the count is above the highest allowed value Property of Kerr Measurement Systems Inc. Page 4 of 15 Rev A. Mar-2002...

  • Page 5: Installation Procedures

    Before you start to use the display unit, leave it connected to the external power for 24 hours to ensure that the batteries are fully charged. Property of Kerr Measurement Systems Inc. Page 5 of 15 Rev A. Mar-2002...

  • Page 6: Operating Procedures

    0 by using the zero switch. The system is now ready to measure depth. After each run in the hole, reset the zero value before entering the hole again. Property of Kerr Measurement Systems Inc. Page 6 of 15 Rev A. Mar-2002...

  • Page 7: Serial Port Communication

    Baud: 9600 Data Bits: Stop Bits: Parity: Hand shaking: NONE 5.4.2 Data packets will be displayed on the PC as they are transmitted, e.g. {10DF33252.286} {10DF33252.286} {10DF33252.286} Property of Kerr Measurement Systems Inc. Page 7 of 15 Rev A. Mar-2002...
  • Page 8 The unit defaults to 2.00000 ft, if you type a value outside the valid range 5.4.5 To save the value into the permanent (non-volatile) memory, type W, the system shows: Saving 200000 Property of Kerr Measurement Systems Inc. Page 8 of 15 Rev A. Mar-2002...
  • Page 9 $Id: DEPTH.C 1.30 1997/02/12 14:59:32 imt Exp imt $ {10DF33377.597} {10DF33377.597} {10DF33377.597} Type D Diameter=200000 {10DF33377.597} {10DF33377.597} Type F then 250000 Diameter=250000 {10DF41724.592} {10DF41724.592} {10DF41724.592} Type W Saving 250000 Diameter stored as 250000 {10DF41724.592} {10DF41724.592} Property of Kerr Measurement Systems Inc. Page 9 of 15 Rev A. Mar-2002...
  • Page 10 The tens and units digits are transmitted in ASCII form. The checksum digits are not included in the sum. Example data packets: {10DF33252.286} {10DF33252.286} Property of Kerr Measurement Systems Inc. Page 10 of 15 Rev A. Mar-2002...

  • Page 11: Specifications And Diagrams

    10% - 80% RH non-condensing. Electrical Input power Voltage 100 - 240 VAC or 12 VDC Input power frequency 50 - 60 Hz Input power current 0.2 A Property of Kerr Measurement Systems Inc. Page 11 of 15 Rev A. Mar-2002...
  • Page 12 250 mA fuse DC Power-input Live Pin 1 Neutral Pin 2 Earth Pin 3 DC connector spec: AM5KP063 -CONN KPT06E8-33S 3 SOCKET Property of Kerr Measurement Systems Inc. Page 12 of 15 Rev A. Mar-2002...
  • Page 13 MS3116 W/STRAIN RELIEF AM5KP058 CONN KPT08F10-6S RT ANGLE PLUG W/STRAIN RELIEF OR EQUIVALENT AM5KP059 DUST CAP KPT8010C CANNON SHELL SIZE 10 OR EQUIV AM5KA034 BUSHING #9779-513-4 AMPHENOL Property of Kerr Measurement Systems Inc. Page 13 of 15 Rev A. Mar-2002...
  • Page 14 DC signal path with a series resistance below 100 ohms. Earth leakage should be below 10 µA. The signal frequencies are approximately 30 Hz at 1000 ft/min. Excessive capacitive loading should be avoided. Property of Kerr Measurement Systems Inc. Page 14 of 15 Rev A. Mar-2002...
  • Page 15 Minimum Line Speed 0 ft/min Maximum Line Speed 1200 ft/min 6.13 Power management Power time-out with idle 60 min magnetic pickup Anti yo-yo region 2 quadrature counts Property of Kerr Measurement Systems Inc. Page 15 of 15 Rev A. Mar-2002...
