Summary of Contents for Brose F74738

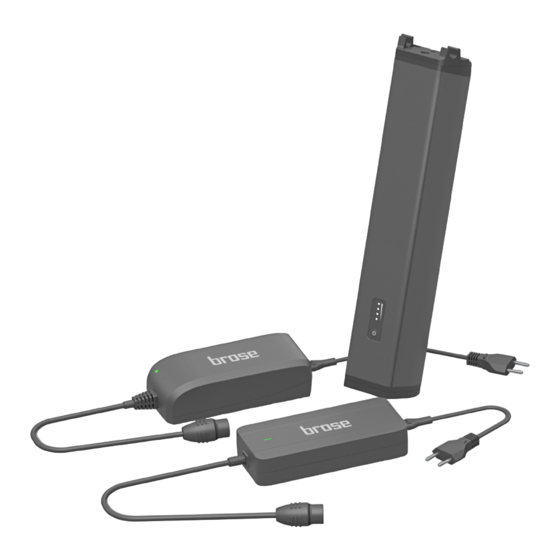

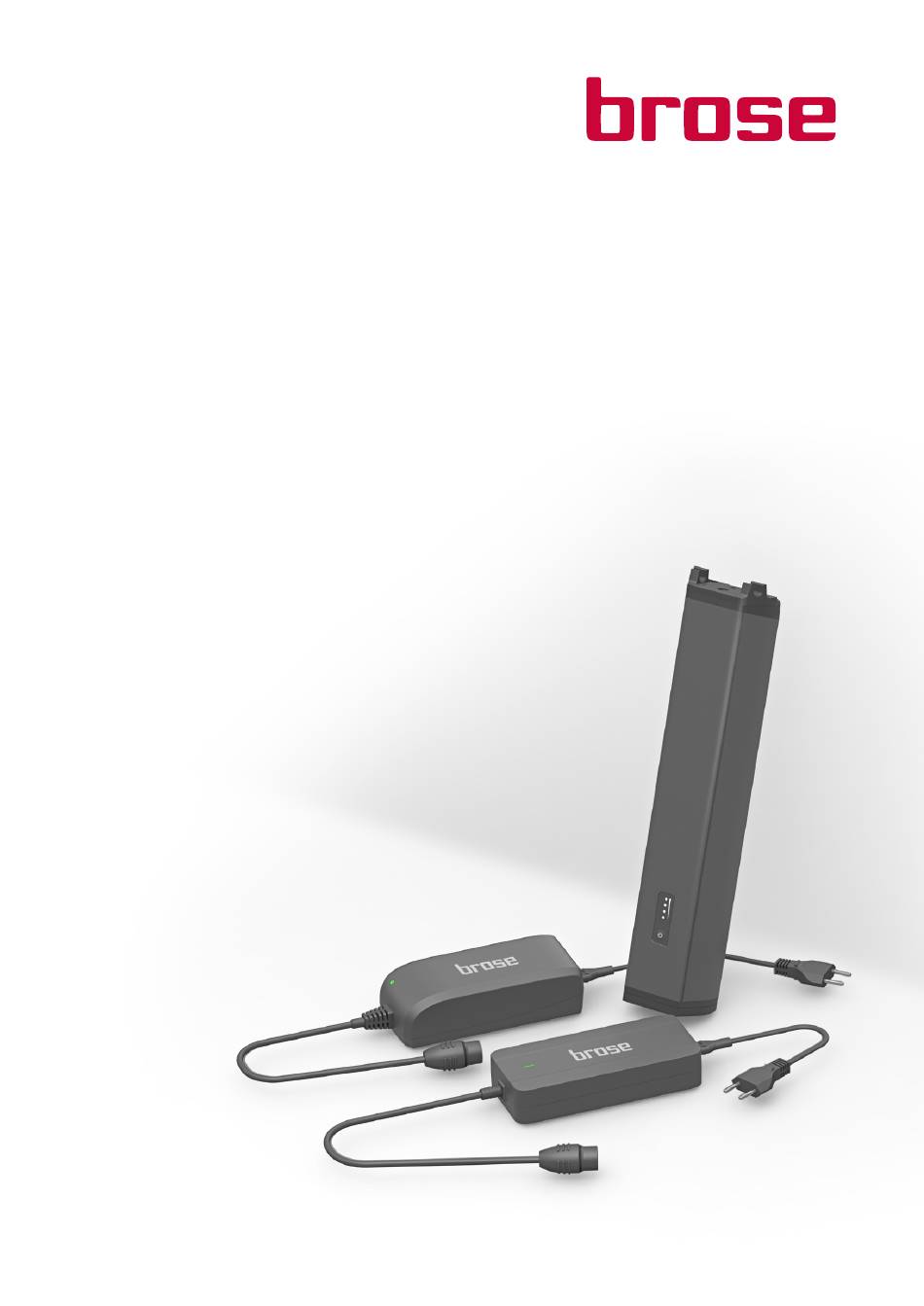

- Page 1 Brose Battery 630 Charger F74738 G01767 F67261 ORIGINAL OPERATING INSTRUCTIONS...
- Page 2 EN | 2 Brose Battery 630 Charger Li-Ion Battery Charger VORSICHT Model: BC222360040 Brand- und Stromschlaggefahr. Nur für den Innenbereich. Input: 100-240V~,2.5A(MAX.) Andere Batterietypen können platzen und Verletzungen und Schäden verursachen. Bitte lesen Sie vor der Benutzung die 50/60Hz Bedienungsanleitung.
- Page 3 TEMPERATURE RANGE Only use the approved charger to charge this battery. Only use this battery with Brose system and compatible frame. Charging Temperature 32℉~104℉ / 0℃~40℃ Do not store in direct sunlight or in places ( such as inside cars) where the Do not modify or disassemble the battery.
- Page 4 EN | 4 Brose Battery 630 Charger (1) / (2) C. Charger start-up (17) (16) D. Charging the battery...
- Page 5 Brose Battery 630 Charger 5 | EN (14) (13) E. Charging battery on the e-bike F. Removing the battery...
- Page 6 EN | 6 Brose Battery 630 Charger (19) (17) (18) KLICK G. Inserting the battery (20) H. Vibration absorbers...
-
Page 7: Table Of Contents
5 Residual risks 6 Explanation of illustrations 23 Cleaning 7 Explanation of Technical Data symbols and signs 24 Brose Battery 630 For your safety 25 Brose Charger 8 Information regarding safety and warning notices Disposal 9 Warning notices on the product 14... -
Page 8: About These
These original operating instructions – referred to as the user manual in the following – is based on the standards and regulations applicable in the European Union and contain important information on the use of Brose components. Additionally applicable documents... -
Page 9: Intended Use
Brose Battery 630 Charger 9 | EN About these original operating instructions Intended use The Brose Drive System is designed as Battery an e-bike drive system. It consists of The battery is intended for supplying several components. power to the Brose Drive System. -
Page 10: Residual Risks
EN | 10 Brose Battery 630 Charger About these original operating instructions Residual risks Certain residual risks unavoidably remain Unforeseeable residual risks associated when using the e-bike - despite a well- with the use of the e-bike described here calculated design by the manufacturer... -
Page 11: Explanation Of Illustrations
Device plug manufacturer. Detailed information on Charger safety label your entire e-bike is available from your Battery F74738 authorized Brose dealer and e-bike manufacturer. Battery lock Key for battery lock The numbering in the following tables (10) Battery safety catch... -
Page 12: Explanation Of Symbols And Signs
Brose Battery 630 Charger About these original operating instructions Explanation of symbols and signs The following symbols can be found on the components of the Brose Drive System and in this user manual. Products marked with Read and observe the... -
Page 13: For Your Safety
For your own safety, please read all danger. safety notices and information in this The danger levels with the corresponding chapter carefully before using the Brose signal words and warning symbols are Drive System or the components. explained below. Explanation of safety and war-... -
Page 14: Warning Notices On The Product
10 Safety notices on the product for the battery 630 Stickers with warning notices have been WARNING affixed to the components of the Brose Drive System for your protection: Risk of fire and electric shock! › fig. A, page 2 If you handle the battery improperly, ›... - Page 15 Improper handling of the battery may improperly. result in chemical burns and/or injury to you and others. » Only use an original Brose charger for charging. » Protect the battery from impacts, » Use only original Brose batteries for mechanical...
-
Page 16: Safety Notices For The Charger
EN | 16 Brose Battery 630 Charger For your safety 11 Safety notices for the charger WARNING » Do not grab the charger plugs with wet or damp hands. Risk of electric shock! » Never use the charger when the There is a risk of electric shock if the connections are damp or wet. - Page 17 » Only use the charger to charge the have been given supervision or pertinent original Brose battery. instruction concerning the safe use » Never use the charger to charge of the device and understand the unsuitable batteries (e.g., vehicle...
- Page 18 EN | 18 Brose Battery 630 Charger For your safety NOTE Risk of damage! Improper handling can lead to damage to the charger. » Never carry the charger by the electric cable. » Disconnect charger from the mains before connecting or disconnecting the battery.
-
Page 19: Commissioning
Always switch off the battery and the (see chap. level for about 5 seconds Brose Drive System before connecting 13.2 on page 22) the battery to the charger. The drive unit is deactivated during the... -
Page 20: Charging The Battery
If you handle the charger improperly, improperly. there is a risk of fire or electric shock. » Please use only the original Brose » Check the charger, cable and plug charger with the article number for damage before each use. - Page 21 1. Connect the device plug (5) with the device socket (3) of the charger. 1. Switch off the Brose Drive System via the control unit. 2. Connect the charging plug (4) of 2. Open the charging socket cover (14) the charger to the charging socket on your e-bike.
-
Page 22: Displays And Controls
(12) show the battery charge 13.2 on page 22) level. If you press the Charge level key (11) on The Brose Drive System cannot be switched on with it. the battery, the battery charge level is displayed for about 5 seconds. - Page 23 Brose Battery 630 Charger 23 | EN Commissioning Charging During the charging process, the LEDs on the battery’s charge level indicator (12) light up. › A flashing LED shows that the next 25% is charging. › When the battery is fully charged, all four LEDs light up constantly for about 5 seconds.
-
Page 24: Assembly
The brakes, motor and battery different ways. For detailed information, can heat up considerably during please contact your authorized Brose operation. dealer or e-bike manufacturer. » Always let the components cool down first before handling them or Special Brose vibration absorbers working in the vicinity of them. - Page 25 (18) of Detailed information on the battery cover the frame. is available from your authorized Brose › Even a very small slide angle is suffi- dealer or e-bike manufacturer. cient. › Make sure that the battery is 14.2 Removing the battery...
-
Page 26: Switching On/Off
Please contact an authorized Brose dealer to replace the battery. INFORMATION · If the Brose Drive System is not LED error indicator requesting any power (e.g. when the e-bike is stationary) or no key is... -
Page 27: Troubleshooting Charger
2. Restart the charging process. › To do so, the charger must be The contact information for authorized completely disconnected from the Brose dealers can be found in the battery and power supply for at Service area at: least 15 seconds. -
Page 28: Transport And Dispatch
EN | 28 Brose Battery 630 Charger Storage, transport and dispatch Storage, transport and dispatch 18 Service life The life of the battery can be extended if A significantly reduced operating time it is well cared for and, above all, stored after charging indicates that the battery at the right temperatures and conditions. -
Page 29: Transport
Please moisture penetrate system contact your authorized Brose dealer in components even at low speeds. this regard. » Remove the battery from the e-bike. · Never ship the battery yourself. -
Page 30: Maintenance And Cleaning
» Cover the power supply contacts. » Do not use any water or other For service or repairs to the Brose Drive cleaning fluids! System or in case of a component failure » Do not immerse the charger and (e.g. - Page 31 31 | EN Maintenance and cleaning NOTE Risk of damage! Improper cleaning can damage the Brose Drive System or the individual components. » Do not use aggressive cleaning and care agents, especially penetrating oils and brake cleaners. » Do not use sharp-edged or metallic cleaning objects.
-
Page 32: Technical Data
EN | 32 Brose Battery 630 Charger Technical Data Technical Data 24 Brose Battery 630 Charging: 0 °C to +40 °C Brose Ambient F74738 Battery 630 temperature Riding: -10 °C to +40 °C Short-term storage Nominal voltage 36 V -20 °C to +25 °C... -
Page 33: Disposal
Brose Battery 630 Charger 33 | EN Disposal Disposal Batteries, chargers, control units, drive ONLY FOR EU COUNTRIES units, speed sensors, accessories According European and packaging must be recycled in an Directive 2006/66/EC environmentally-friendly manner. defective or used batteries/ throw... - Page 34 · RoHS directive (2011/65/EU) long-life batteries or rechargeable batteries instead disposable Please return Brose e-bike components batteries. that are no longer fit for use to an authorized Brose dealer. · Always ensure proper disposal to counteract littering in public spaces.
-
Page 35: Service
All rights reserved. The contents of this document were prepared with the utmost care. However, Brose accepts no liability for the accuracy, completeness and currentness of the content. The contents are for information purposes only and do not... - Page 36 Brose Antriebstechnik GmbH und Co. Kommanditgesellschaft, Berlin Sickingenstr. 29-38 10553 Berlin Germany Phone: +49 30 343498 100 service.ebike@brose.com www.brose-ebike.com V 2.2 01/2021 en (uk)
