DIMENSIONS
32¾"
TOP VIEW
MATERIALS LIST
Pressure Treated
Pressure
2x2 Baluster, 36"
Treated 2x4, 10-ft.
• 12 boards
• 2 boards
34
/
"
1
8
Pressure
Treated 1x6, 8-ft.
• 10 boards
19"
FRONT VIEW
Coated Deck Screws
• 1¼" long, 64 screws (0.3 lbs.)
• 2" long, 102 screws (0.7 lbs.)
• 3" long, 58 screws (0.6 lbs.)
#10 Wood Screws,
4" Strap Hinges
3/4" long
• 4 hinges
• 20 screws
COMPOST BIN
home.crs
32¼"
SIDE VIEW
Double Hinge Hasp
5-1/2" Utility
• 2 hasps
Door Pull
• 1 pull
End Cut Wood
Preservatives
• 1 can
Advertisement
Summary of Contents for Co-op COMPOST BIN

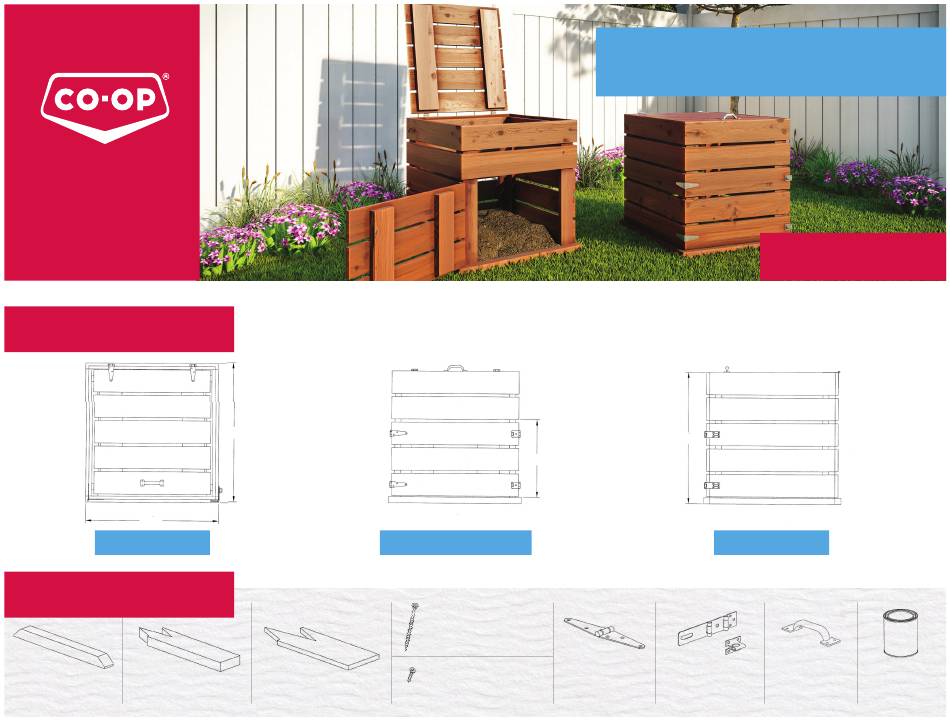

- Page 1 COMPOST BIN home.crs DIMENSIONS " 32¼” 19” 32¾” TOP VIEW FRONT VIEW SIDE VIEW MATERIALS LIST Coated Deck Screws • 1¼" long, 64 screws (0.3 lbs.) • 2" long, 102 screws (0.7 lbs.) • 3" long, 58 screws (0.6 lbs.)
-
Page 2: Components List
COMPONENTS LIST COMPOST BIN CONSTRUCTION Component Name Quantity Component Name Quantity Cutting. Diagrams Base Trim Front Front Rail Side Slat 2x2 Pressure Treated Baluster CUTTING THE COMPONENTS Rear Rail Front Slat ® . G) , (J), Twelve (12) boards 36"1ong are required for components... - Page 3 ASSEMBLE THE COMPONENTS NOTE: • lt is good practice to drill clearance and pilot holes before installing Doing so makes it easier to align and assemble the joint, increasing its strength, screws in narrow boards or near the end of a board. and reducing the chance of splitting the wood.
- Page 4 COMPOST BIN ASSEMBLY (continued) NOTE: STEP 3. BIN FRAME ASSEMBLIES STEP 4. INSTALL THE THRESHOLD • The orientation of the front, rear, and side assemblies is critical. • The screws are driven through the front and rear assemblies into the sides.
- Page 5 COMPOST BIN ASSEMBLY (continued) NOTE: STEP 5. TRIM THE BASE STEP 6. ATTACH THE TOP SLATS • The top slats should project 3/4" above the top of the frame assembly. • The side slats are installed first. The ends 3/4” Projection should sit flush with the back and front of the frame assembly.
- Page 6 COMPOST BIN ASSEMBLY (continued) STEP 7. ATTACH THE SLATS STEP 8. DOOR ASSEMBLY NOTE: • Only two (2) slats are installed on the front of the bin. 3/8" Spacer Block 4¾" 3/4" Spacer Framing Square 1¼" Deck Screws - 24 2"...
- Page 7 COMPOST BIN ASSEMBLY (continued) STEP 9. LID ASSEMBLY STEP 10. ATTACH THE HNGES AND HASP 5½" 20¼" 5½" 1½" 1¾" Double Hinge Hasp Framing Square 1¼" Deck Screws - 40 4" Strap Hinge 4" Strap Hinge - 4 Double Hinge Hasp -2 #10 x 3/4"...
- Page 8 Please ensure the manufacturer's instructions are followed in the ® use of all tools and materials and heed all recommended safety guidelines. ®CO-OP and design trademark are registered trademarks of Federated Co-operatives Limited, Saskatoon S7K 3M9...
