Summary of Contents for Konic KUD65MD686AS2

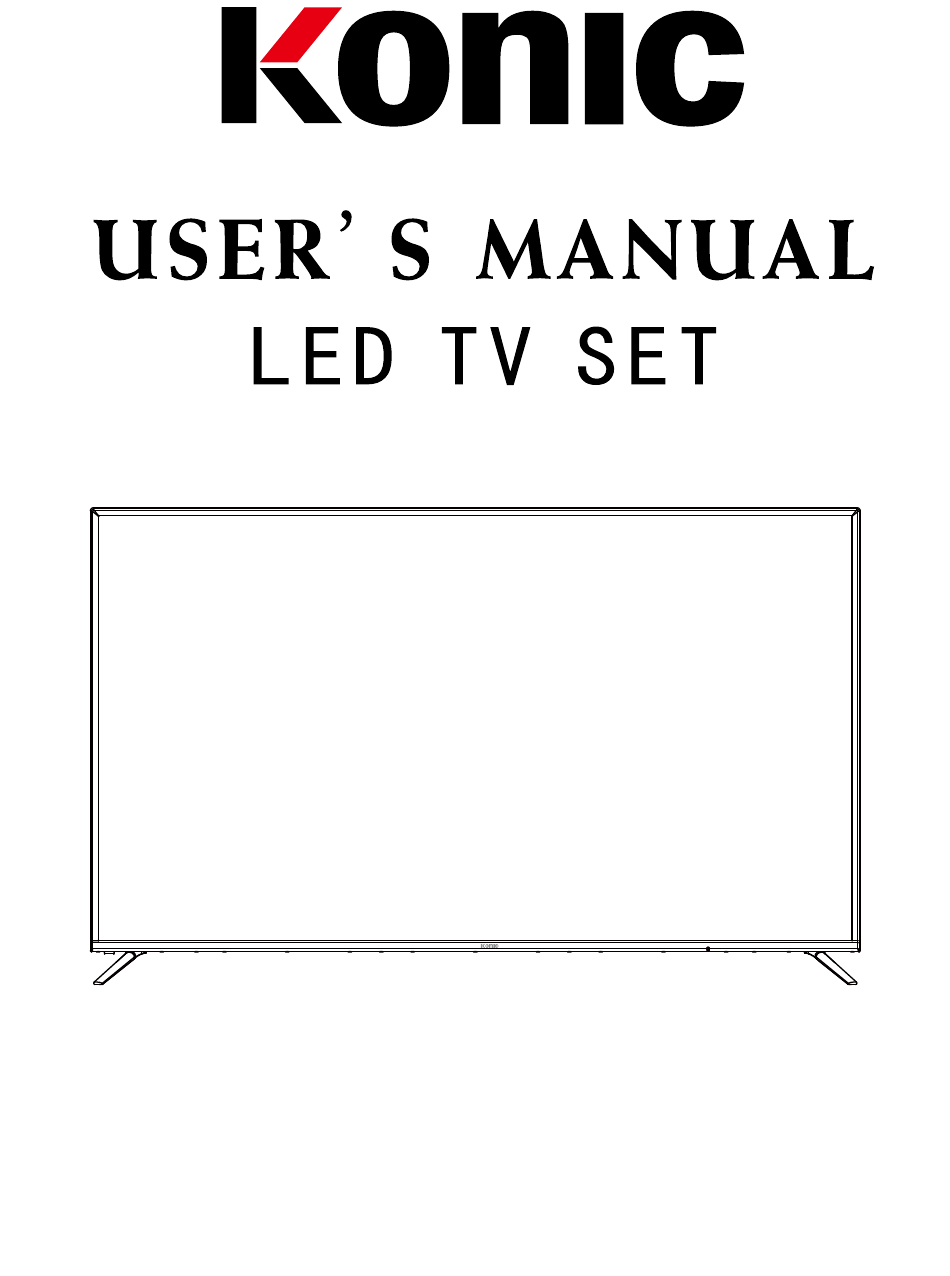

  • Page 1 MODEL:KUD65MD686AS2...
  • Page 5 Specifications Overview External connection Remote Control...

  • Page 6: General Description

    General Description (CEC ARC at HDMI2)

  • Page 7: Specifications

    Specifications KUD65MD686AS2 65 " 3840x2160 NTSC:M;PAL: M/N;DVB-T/T2/S2 NTSC 2x8W 165W 480I/P 576I/P 720P 1080I/P 2160P HDMI support resolution...
  • Page 8 Source Select. CH+/-:Select channel. VOL+/-:Adjust Volume. Connect Coaxial out. AV input. Connect to an antenna or satellite antenna.
  • Page 9 BM4X30(3pcs) BM4X30(3pcs)
  • Page 10 (Only DTV/ATV)
  • Page 12 Press input button and start changing settings. Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Advanced Channel Setup Signal information Software Update(USB)
  • Page 13 * Auto tuning Select option of Auto Tuning under the up and down button.After pressing OK button, the screen will appear the country list and you are able to choose what you want with arrow button.Press OK button to start auto channel tuning and the screen show the programs number.
  • Page 14 Through the up and down button to select \"LCN\" option, then can use left and right uttons to open or close the logical channel number. Software update Please prepare USB and relevant update files before software update. Then insert USB and choose this option.You should do according to system hint and remember not to pull out USB before finishing software update.

  • Page 15: Auto Tuning

    Auto Tuning DVB-S Manual Tuning ATV Manual Tuning Satellite Edit Programme Edit Advanced Channel Setup Signal information REGION AUCKLAND Software Update(USB) Auto Tuning Photo1 Photo2 Select option of Auto Tuning under the The system provides three channel types including free, scramble, all. You can set the source of satellite and there will be different operations you should know.
  • Page 16 * Satellite auto tuning setting The Specific parameter setting includes userband/SRC Add. , frequency and position. The userband have many options, such as 1/0, 2/1 , 4/3, 7/6. The range of frequency swing and you can set according to your need. The position can change to A/B DVB-S manual tuning Press OK button to show satellite name list and choose one when TV is in main manual tuning.

  • Page 17: Set L I Mit

    Motor First choose one satellite signal and press red button to set motor . You can modify specific direction for move auto ,move continue , move step.In this main interface,Goto position and preference can be set after pressing OK button. Please pay attention that the GotoX can change in the Diseqc1.3 Set l i mit , location Choose one satellite signal and press green button to set limit.Not only...

  • Page 18: Satellite Edit

    you choose specific location , you have chance to set longitude angle. Note: you also can set limit and location in the satellite edit interface. Satellite edit (1) Choose one of satellite signal list and press OK button to enter setting interface. The orbit positions you can select are just 019.2E and 019.2W.For LNB type, the system provides many options to fit your needs.
  • Page 19 DTH Tuning On the initial scan the receiver shall perform an automatic scan based on the Freeview NIT information found on the “home transponder” at 12.483GHz. It shall find all transport streams and services referenced within the NIT and shall tune in to the correct DVB structure, channel coding, modulation. However, the receiver shall only display services that are referenced in the regional Freeview BAT selected by the user during initial setup.
  • Page 20 Back light Picture Mode Color temperature Choose the picture menu with left and Select the option of color temperature by the above-mentioned way, then change its setting right button. Then the up and down with left and right button. The color temperature arrows can be used to select this item.
  • Page 21 Sund Mode Standard Bass Treble Balance Auto Volume Surround Sound AD Switch SPDIF MODE Spdif Audio Delay Sound mode Auto volume, Surround sound Choose the sound menu with left and right button. Then the up and down Select the option of Auto volume and press arrows can be used to select this item.
  • Page 22 Clock Select the “Clock” and press OK button to enter interface you can adjust data, month, year and so on with left and right button. Off time Select the “off time” option and press OK button to enter interface. Then the left and right button can be used to adjust specific settings.
  • Page 23 On time Select the “on time” option and press OK button to enter interface at left. Then the left and right button can be used to adjust specific settings. For off time, you can choose Mon. ~Fri.,Sat.~Sun and other mode. The hour and minute can change at random.
  • Page 24 Time Zone Select option of time zone and press OK button to enter. There will appear list and you can choose one from it. Sleep timer Choose option of Sleep timer and press right button to alter sleep timer value. The system provides specific values that the min.
  • Page 25 OSD Language English Audio Language English Subtitle Language English Hearing impaired PVR File System Restore Factory Default HDMI CEC Color Range Auto First Time Installation Reset After selecting the option of reset and pressing OK button, you can find a prompt box for confirming reset. Please note that the reset will influence your previous setting.

  • Page 26: Pvr File System

    PVR File system Before PVR, you should select address of PVR file and check PVR system. The PVR file system can set as FAT32/FAT 64. After setting PVR file system size, you are able to start PVR. HDMI CEC The function of HDMI CEC can make your life intelligent and convenient. You can choose the function of HDMI ARC, Auto standby, Auto TV on, device control to your requirements.
  • Page 27 first time installation Select first time installation item and press OK button to enter setting interface. The options you can modify include OSD language, country, and TV connection. You should press OK button to make sure your setting. Choose the option of lock system with up and down button in the main interface. Then press OK button and there will appear prompt box for inputting password.

  • Page 28: Set Password

    Set password When you want to change password, you can choose the option of set password. Please input correct old password and enter new password .The new password can be successfully after confirm.

  • Page 29: Block Program

    Block program Choose the programs you don’t like .Then press green button to lock these programs. Please press menu button if you want to go back previous interface. Parental guidance , button lock The grade of parental guidance ranges from 4 to 18. Please pay attention that you can’t do specific operation after opening button lock.

  • Page 30: Hotel Mode

    Hotel mode Choose the option of source lock to enter source list. With left and right button,you are able to open or close input source. Default source, default volume, Max volume can change through left and right button. The above settings should be in accordance with your need.
  • Page 32 Pick the image of picture with left and right button.Then click “C port” and open concrete photo. Press OK button and there will appear image for further operation.
  • Page 33 Pick the image of music with left and right button. Then click “C port” and open concrete song. Press OK button and there will appear image for further operation.
  • Page 34 Pick the image of movie with left and right button.Then click “C port” and open concrete movie. Press OK button and you can do operation as following: (1) Play or pause film ;( 2) stop play ;( 3) FB or FF; (4) Play previous film ;( 5) Play next film ;( 6)step forward;...

  • Page 35: Usb Multimedia Playback Format

    Pick the image of text with left and right button.Then click “C port” and open concrete text. Press OK button and there will appear image for further operation USB MULTIMEDIA PLAYBACK FORMAT Supernova Multimedia Spec. - Video MPEG1/2,MPEG4,DivX 3.11,DivX 4.12,DivX 5.x,DivX 6, XviD,Sorenson H.263,H.264,HEVC/H.265,MVC,,WMV3,VC1,Motion JPEG,VP8,VP9,RV30/RV40.
