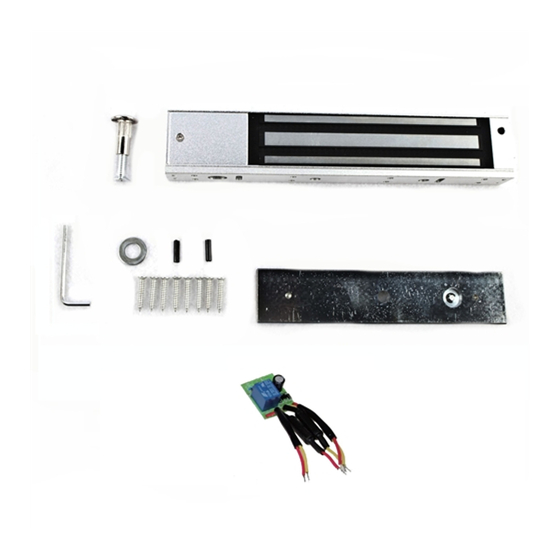

Aleko LM176 User Manual

☆Technical Parameters:

A. Holding power: 280KGS、
C. Working Current:250mA
Typical Installation：Flushing（A） 、Hanging（G）
E.

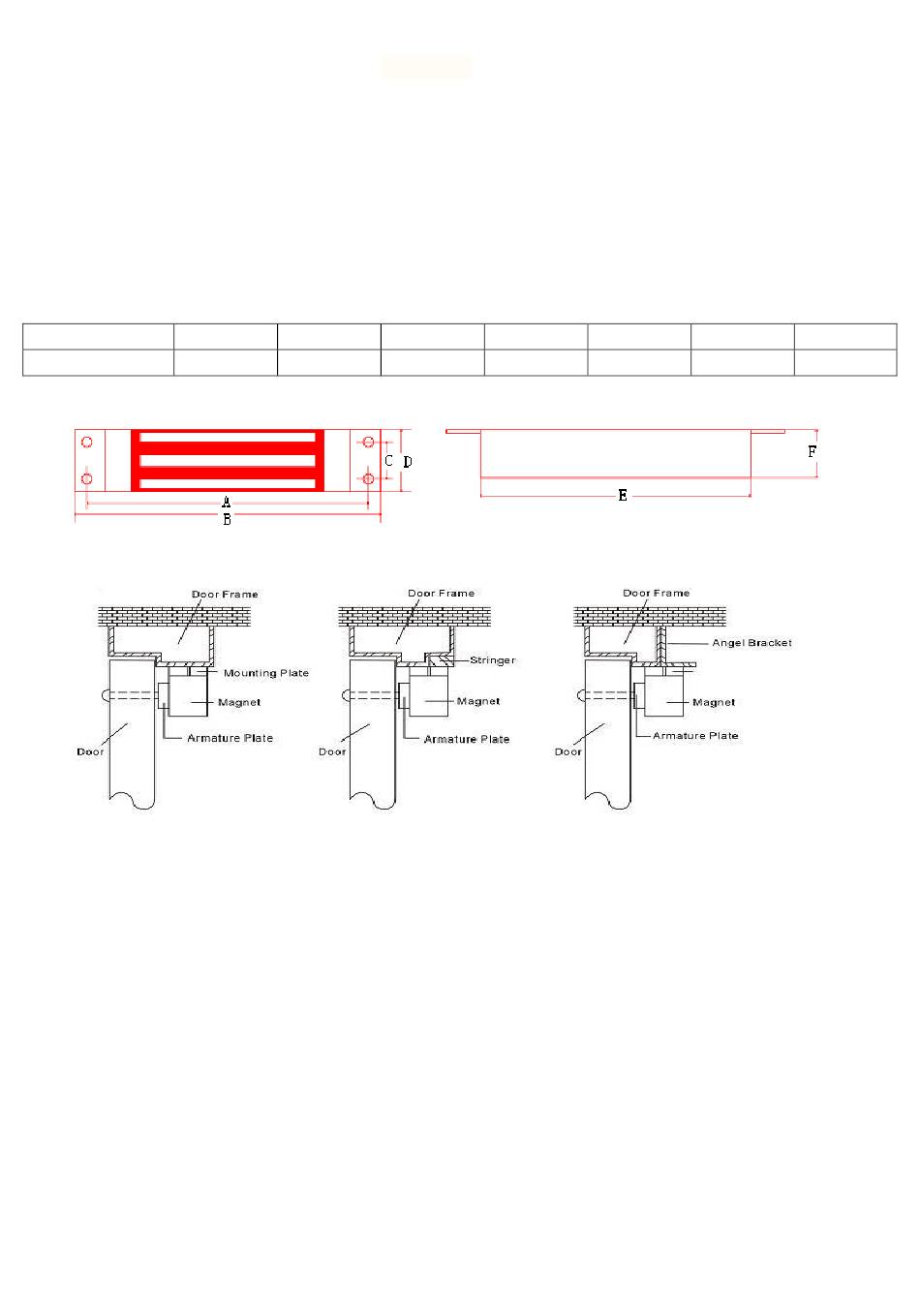

☆Installtion chart
Hanging Type Electromagnetic Lock
Model
280GF/X
Flush Bonding Type
☆ Typical Installation：
STEP 1
A． Fold template along dotted line.
B． Place template against door and head frame.
C． Drill holes as indicated on temple.
STEP 2
A． Mount the armature palte to door using 1 rubber washer sandwiched between 2 steel washer(the rubber washer and 2 steel washer are installed on the
through sexnut between the armature plate and door).
STEP 3
A． Install the mounting plate with 2 flat head screws(the 2 M5X5 flat head screws are installed in the solotted holes for adjustment).
B． Adjust mounting plate so that it forms right angle with the armature plate.
C． Using the mounting plate as a temple,drill the wire hole.
D． Drill and remaining mounting screws.
STEP 4
A． Instal magnet to mounting plate with 2 M4 screws supplied.
STEP 5
A． Test all functions of this model(see wiring instruction).
User Manual of Electromagnetic Lock
（Model：LM176）
L1 L2
250 210
B. Working Voltage: 24VDC
D. Safety mode: Power-on to lock, Power-off to open.
Electromagnetic Lock fitting for all kinds of doors.
A B
27 16.5
- 1 -
D E
2.3 6
F
50.5
