WONDOM 5S 26650 Quick Start Manual

Battery Charging and Protection Series
5S 26650 Lithium-Ion Battery Charging,
Protection and Balancing Board
w MPPT – BCPB4 (PS-BC12113)

Overview:

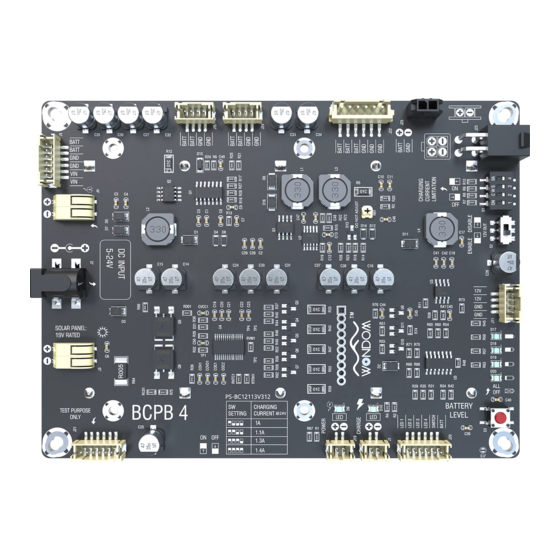

BCPB4 is a highly reliable Lithium-Ion Battery Charging, Protection, and Balancing Board that operates with wide input range, 5-24V.
This board able to charge the batteries from input voltages above, below, or equal to the output voltages. It is designed for 5 in series
26650 Lithium-Ion Battery which provides approximately 90-125Wh energy. The MPPT charging integrated feature supports a 15-24V
power supply. BCPB4 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is
equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection. The battery
balancing IC allows constant battery voltage between 5 in series 26650 Lithium-Ion cells. It is designed for industrial application with
verified MTBF for low-temperature increment under rigorous design.
Distributors:
All BCPB Series are complied with
RoHS
and pre-tested with our
power supply solution adheres to
FCC and CE. FCC, CE, and RoHS
certification will be provided per
customer requests. The test reports
for high and low temperature with
200 cycles of HASS Test will be
provided once requested by
customer through emails and this
request is applicable for bulky
purchases of MOV USD$10,000 or
MOQ 500pcs only. RoHS 3 (EU
Ready for:
Contact Info
·Email:
info@wondom.com
E
l
e
c
t
Block Diagram
r
i
c
a
l
S
p
e
c
i
f
Note: All the components in the block diagram are grounded except Charging LED for External Port
(J1) and LED Display for External Port (J20). Lithium-Ion Cells are connected to battery protection
i
and balance circuit and then grounded. All the Power Output, including the battery level indication
module will be disconnected once the board goes into a protection mode. When the battery is fully
c
charged, the voltage across the charging LED shunt resistor is approximately 28V and drops
drastically to 0V when there is no power supplied to the board.
a

Applications:

· Industrial Applications
t
· DIY and IoT Purposes
i
· Power Bank for Router/
Drone/
o
· High Power Portable
Speaker
n
· Time Lapse Camera

Notes:

s
1. Sure Electronics does not provide technical support for any behavior of connecting the board with power supply
out of the recommended range. Any damage/problem arises due to this, will not be covered by the warranty.
2. Remove battery from the circuit board if it is not use for a long time.
3. For initial charging, it is normal for the board to take longer time to fully charge.
4. If the board goes into a protection mode or the battery has been re-installed, please recharge the board with DC
Input Jack to reactivate.
5. Please check the battery polarity before installation. This board can be used with Lithium-Ion battery ONLY. Other
batteries, including LiFePO4 is prohibited.
6. Please note, this board is prohibited to be connected in parallel or in series.
* A power supply must
be replugged-in for the
BCPB4 to have a power
output after installing or
reinstalling batteries.

Key Features:

·5-24V Wide Range Charging Voltage
·Large Battery Capacity with 5S
26650 Cells
·Battery Voltage Balancing
·Solar Charging Supported
·Multiple Output Ports
·Charge and Discharge at the Same
Time
1
·LED Indicators for Battery
Level
·Full Protection Circuit;
Short Circuit, Over-
temperature, Over/Under
Voltage, Over-current, Over-
charge and Over-discharge
Protection
