Hugo M Scaler | Quickstart Manual V.1.3
Quickstart Manual
Introduction
Welcome to the Hugo M Scaler Quickstart Guide. This shortened guide
is supplementary to the main manual which should be referred to for
full safety and operational information.
Please note, more information on any of these topics is listed within the
full manual found under the product page:
chordelectronics.co.uk/product/hugo-mscaler
Warranty
Hugo M Scaler comes with a comprehensive 3-year warranty. To
activate this warranty, please register your device via the Chord
Electronics website:
chordelectronics.co.uk/register-product
Note: please do not use a third-party charger with the Hugo M Scaler
as it voids the warranty.

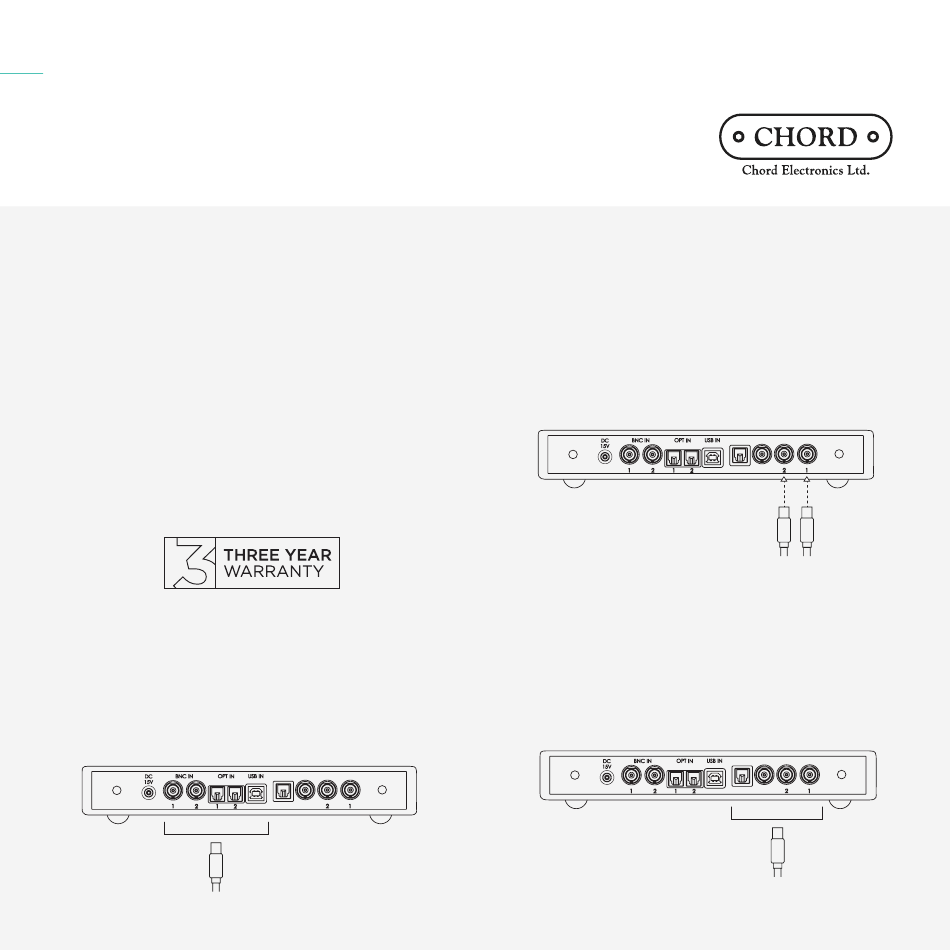

Connecting your source to Hugo M Scaler
In order to use the Hugo M Scaler, you must connect your source to any
input of the device. You can connect multiple sources if you wish and
select between them later from within the menu.
Please note that if you are using the USB input with a MAC/Linux
device you will not need a driver but if you are connecting a Windows
device it will need a driver from the Hugo M Scaler section of our
website:
chordelectronics.co.uk/product/hugo-mscaler
Input
