Summary of Contents for Zero IGNITION

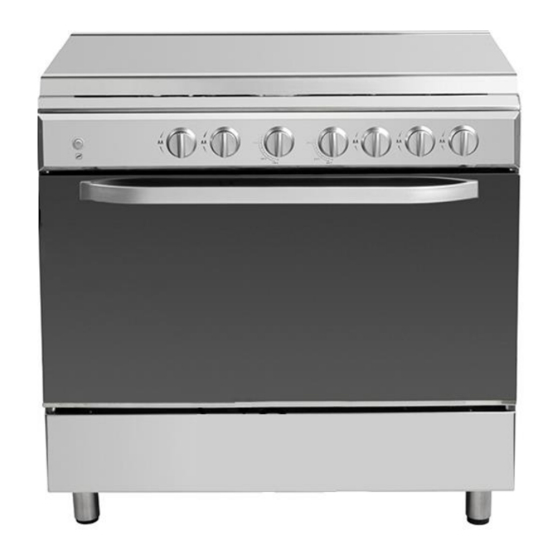

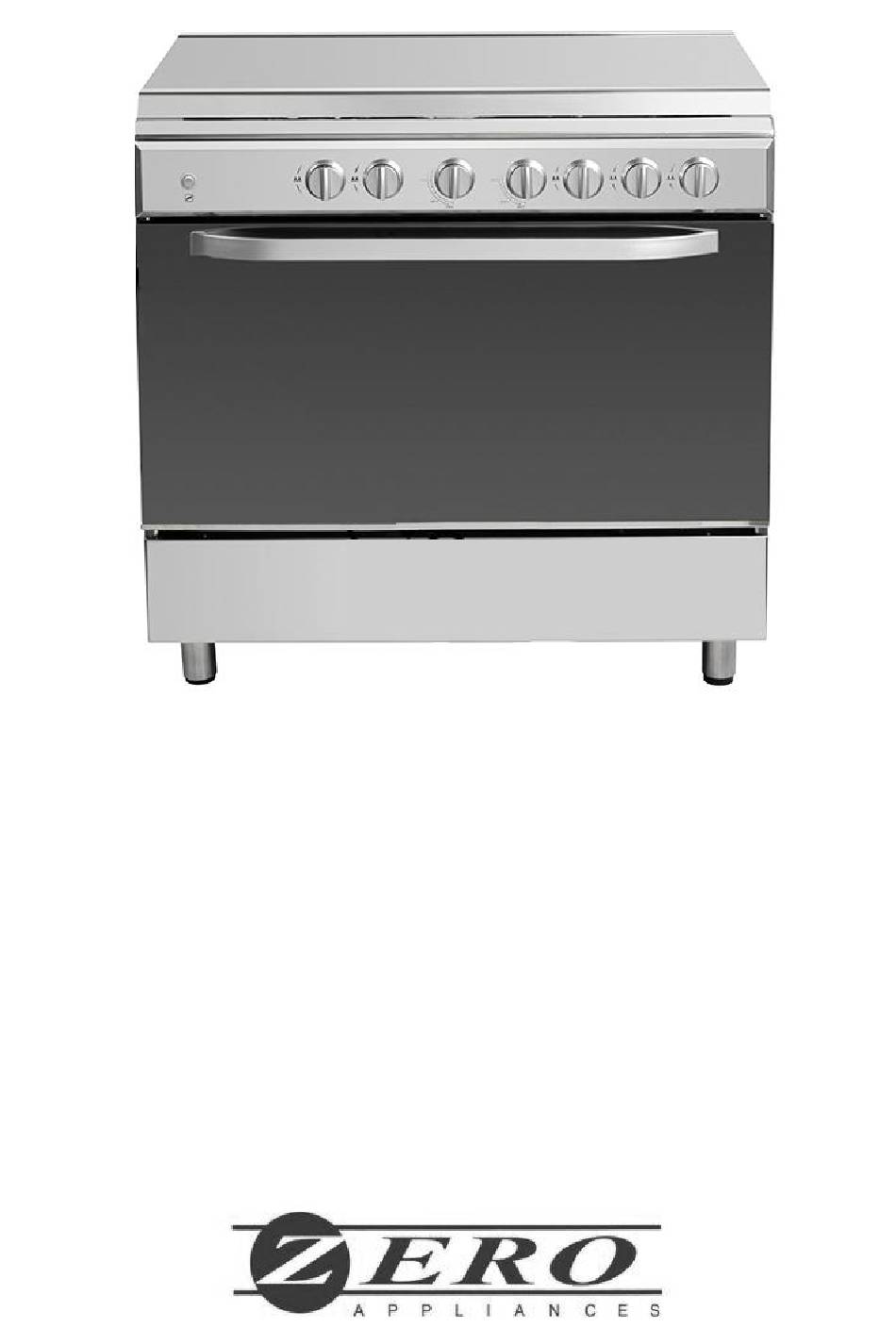

- Page 1 INSTRUCTION MANUAL FOR 5 BURNER UNITS WITH ELECTRONIC IGNITION GAS COOKERS...
- Page 2 This stove requires an operating pressure of 2.8 kPa. The gas bottle should be between 300mm to 500mm away from the appliance. 3. Battery: A D type battery (not included) can be used for electronic ignition. The battery holder is located at the back of the stove.
- Page 3 5. Knobs The cooker knobs are designed with safety locks to prevent them from being turned on accidentally. To operate push the knob inwards and turn in an anti-clockwise direction from the maximum to minimum position. The off position is when the blue stripe on the knob is on top. Ignitor switch Top Burner knobs Top Burner knobs...
- Page 4 the cooking through the oven window. Never place anything directly on the oven floor. When using roasting pans place them centrally on the oven grid leaving about 3 to 5cms between the sides of the dish and the oven walls. Meats and dough should be placed on the second level in the oven. 10.
- Page 5 Figure1 Figure2 15. Troubleshooting Before attempting any work on the stove ensure that the main gas supply has been closed. Possible causes for the stove not functioning correctly could be: • The gas supply being very low i.e., there is insufficient pressure for the gas to reach the burners.
