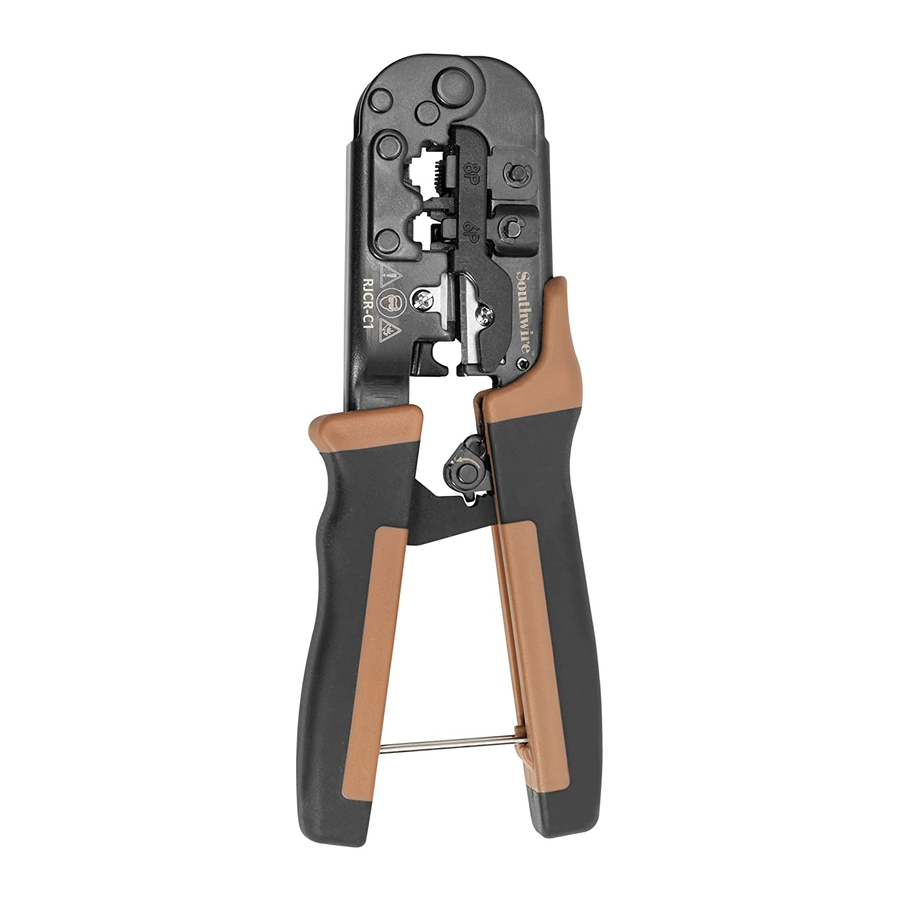

Southwire RJCR-T1 Quick Start Manual

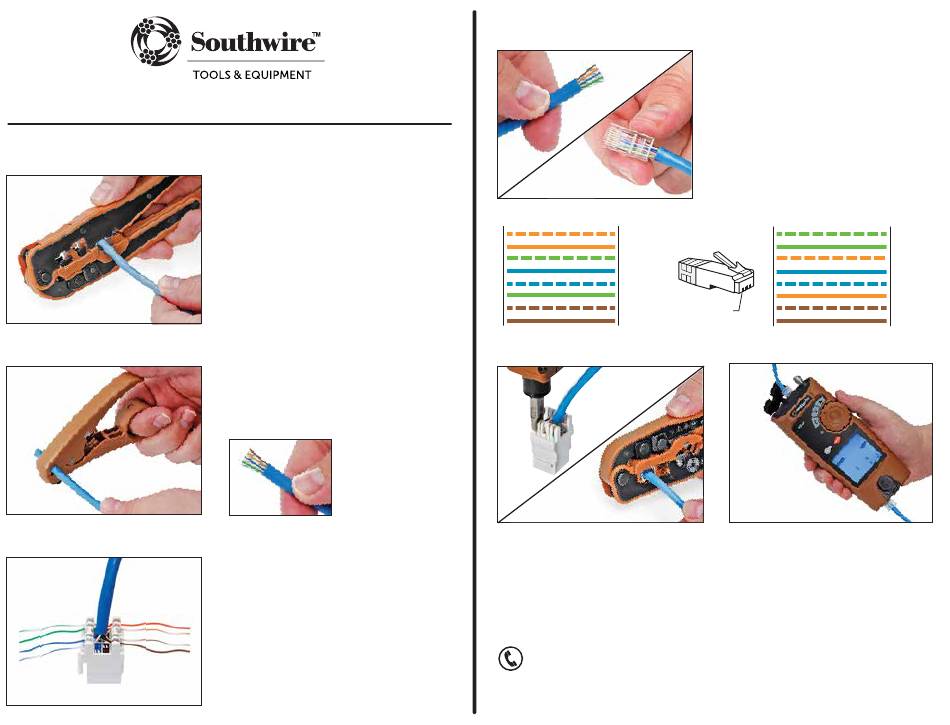

Terminating Category-Style Twisted Pair Cable
Cut
RJCC-T1
Strip
XSR-T1
Prep - RJ45 Data Jack
A. Cut cable to length.
B. Use an appropriate stripping tool to remove
1.5" (38mm) of outer jacket from the end of the
cable. Inspect conductors to make sure there are
no nicks in the insulation.
C. Untwist the conductors.
Lace the conductors into the corresponding color
coded slots. The jack will have color-code guides
for T568A and B wiring schemes.
All the cables in the facility should be wired
to the same scheme to prevent network errors.
Minimize the amount of wire untwisted between
the cable jacket and the termination slots.
Prep - RJ45 Plug
T568B
1
White/Orange
2
Orange
3
White/Green
4
Blue
5
White/Blue
6
Green
7
White/Brown
8
Brown
Terminate
PDTP-K1
RJCC-T1
southwiretools.com
1-855-SW-T00LS
Toll Free Technical Help
Línea de Ayuda Técnica Gratuita
Product distributed by Southwire Company, LLC
One Southwire Drive, Carrollton, GA 30119
©2014 Southwire Company, LLC. All rights reserved.
D. Untwist and straighten the conductors.
Arrange the conductors into the proper sequence as
shown below (either 568A or B).
Cut the wires approximately ½" (13mm) from the end
of the jacket. Orient the plug as shown.
Insert the wires into the plug checking that they go all
the way into the correct pin slots.
T568A
1
RJ45 Plug
2
3
4
5
6
7
Pin 1
8
Test
M300P
3/15 Rev. 0
UTPInstruct manual
White/Green
Green
White/Orange
Blue
White/Blue
Orange
White/Brown
Brown
