INSTRUCTION MANUAL
DC/FREQUENCY CONVERTER
BEFORE USE ....
Thank you for choosing M-System. Before use, check the package
you received as below.
If you have any problems or questions with the product, please
contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner (body + base socket + input resistor)
Input resistor is provided only with current input type.
Ordering Information Sheet
Not included when the unit is shipped with default settings.
MODEL NO.
Check that model No. described on specification label is exactly
what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you use
this product, installation and connection, hardware setting, and
basic maintenance procedures.
When you need to change software settings, please refer to the
Operation Manual for Model PU-2
This unit is factory adjusted and calibrated according to the Ordering
Information included in the product package. If you don't need to
change the pre-adjusted setting, you can skip the sections on
hardware setting and calibration in this manual and the Operation
Manual for Model PU-2 .
FUNCTION & FEATURES
• Providing a pulse rate output in proportion to DC input signal
• Micro-processor based
• Parameters are field-programmable via hand-held programmer
PU-2
• Input signal and parameters can be monitored with the PU-2
during operation
• Duty cycle of the output pulse: 50%
(field-programmable)
(1)
(EM-9255), Section B.

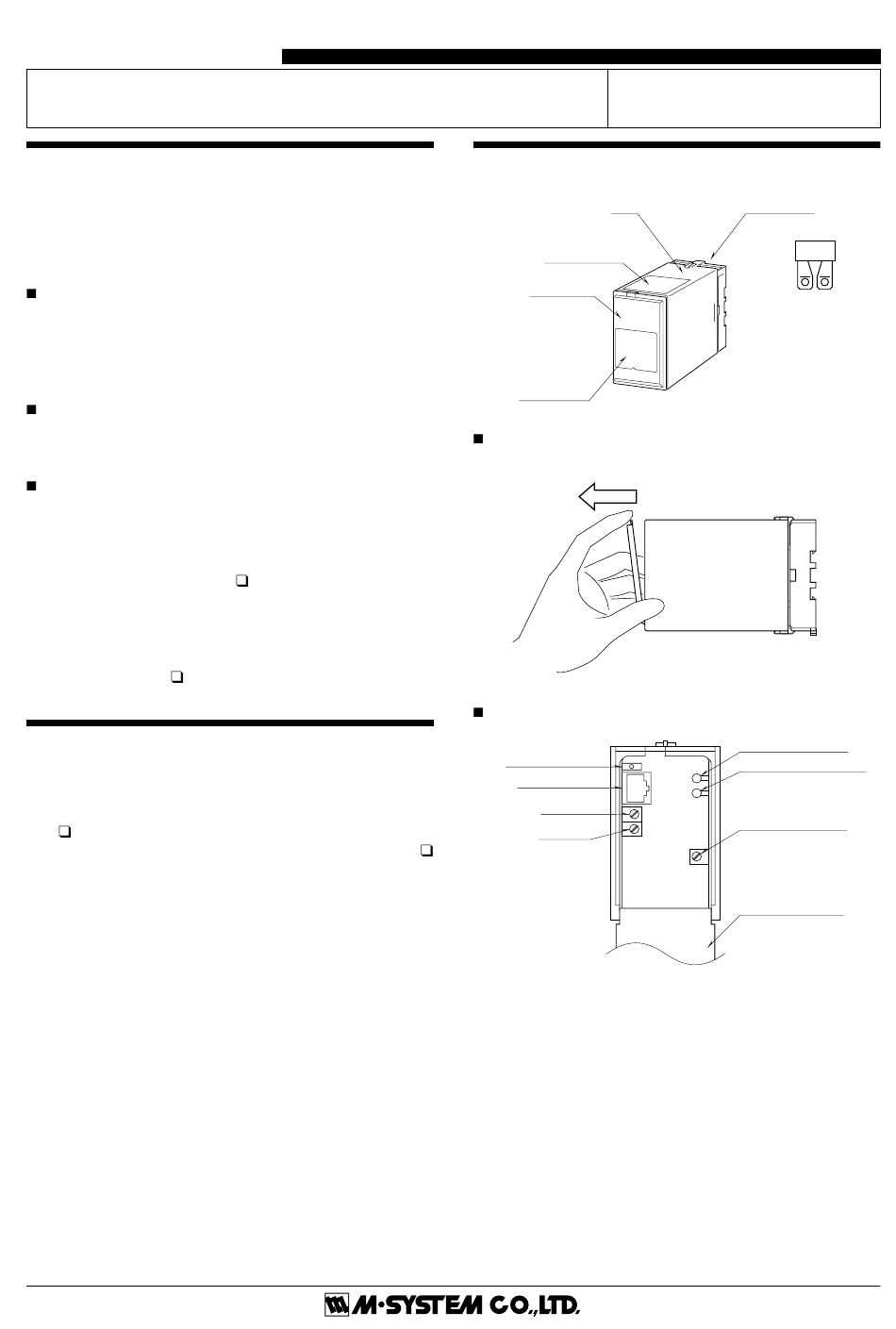

COMPONENT IDENTIFICATION
Connection
Diagram Label
Front Cover
(1)
Specification
Label
HOW TO OPEN THE FRONT COVER:
Position your finger on the hook at the top of front cover and pull.
FRONT PANEL CONFIGURATION
Status Indicator
Modular Jack
Zero Adj.
Span Adj.
JAPD
MODEL
Body Base Socket
Input Resistor
The shape of base socket may be different
for some models.
Output Monitor LED
Monitor LED (not used)
Output Voltage Adj.
DO NOT TOUCH it for RS-
422 line driver output.
The output voltage is already
adjusted at the factory and
paint-locked.
Front Cover (open)
P. 1 / 5
