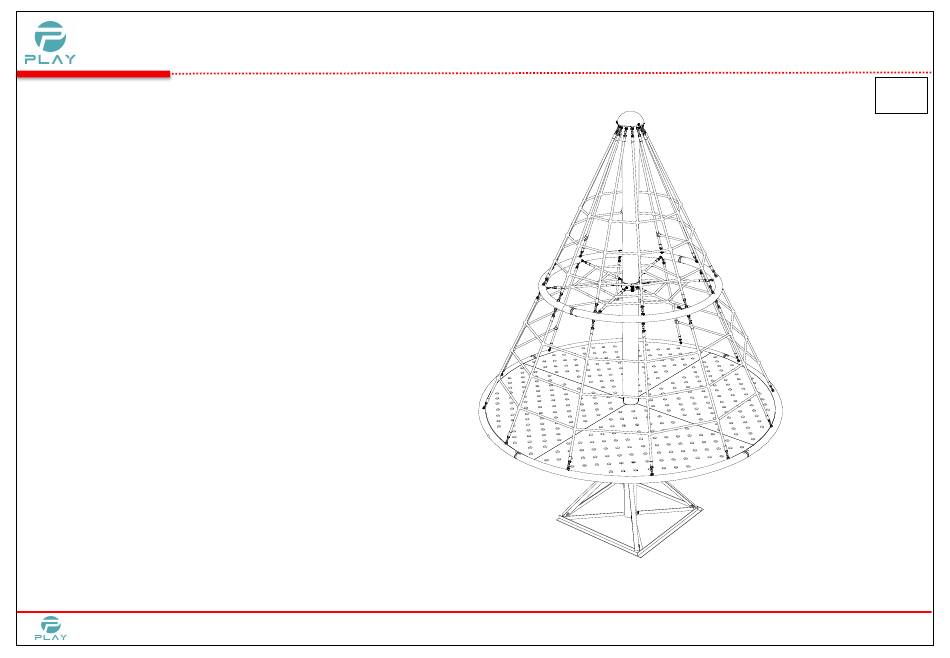

SPACE CRAFT
W INAM GROUP
INSTALLATION MANUAL
Safety Checklist after first assembly
● Test intervals of Safety: 6 months
● Test Component and contents:
1. Removing the reticulated system:
- Check of removing condition each rope
- Screwing the turn buckle and conversion the turnbuckle
in anchors plate(see for this workstep turnbuckle assembly)
2. Abrasion condition of rope:
- Checking of all rope surface
- Strengthened of rope: Coating on the surface
3. Attachment condition of the anchors plate and turnbuckle
4. Screwing condition of all bolt
5. Galvanizing condition of the steel component:
- Protection of steel component from corrosion.
● Measure
In case of the appearance the defect detail is
repaired usually within 3 days after checking.
WINAM GROUP
Room 101, 226/4 A Le Trong Tan, Tay Thanh
ward, Tan Phu district, Ho Chi Minh city, Viet Nam
E-mail) info@playground.com.vn
Tel) (028) 22 494 333
Web site) www.playground.com.vn
MODEL NO.
GS-SC2100
Rev_1
2017.07
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPACE CRAFT GS-SC2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Play SPACE CRAFT GS-SC2100

  • Page 1 MODEL NO. SPACE CRAFT W INAM GROUP INSTALLATION MANUAL GS-SC2100 Rev_1 Safety Checklist after first assembly 2017.07 ● Test intervals of Safety: 6 months ● Test Component and contents: 1. Removing the reticulated system: - Check of removing condition each rope - Screwing the turn buckle and conversion the turnbuckle in anchors plate(see for this workstep turnbuckle assembly) 2.
  • Page 2 MODEL NO. SPACE CRAFT W INAM GROUP INSTALLATION & MAINTENANCE INSTRUCTIONS GS-SC2100 Rev_1 Features 2017.07 The Spacecraft launches the merry-go-round into the future with a space- age look. Children love the flying-saucer design that helps their imaginations fly into orbit. Our special bearing system controls the rotation speed so that the children can safely enjoy the same exhilarating experience as a merry-go-round.

  • Page 3: Safety Area

    The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 ▼ Fall Height and safety area The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. 7,300...
  • Page 4 MODEL NO. SPACE CRAFT W INAM GROUP Foundation Information GS-SC2100 Rev_1 Foundation 2017.07 Measure location and dig a hole 1525mm x 1525mm x 1370mm deep centered on the center of the spacecraft !Attention It is very important to keep a bottom of the lower ring 100 mm apart from Finished level according to safety standard.

  • Page 5: Overall Assembly

    MODEL NO. SPACE CRAFT W INAM GROUP Overall Assembly GS-SC2100 Rev_1 2017.07 Overall Assembly Assemble the parts in the following order: No. A 1. Attach the upper net to the post head Upper Net 2. Attach the ring to the net 3.

  • Page 6: Post Installation

    MODEL NO. SPACE CRAFT W INAM GROUP Post installation GS-SC2100 Rev_1 2017.07 7. Screw the eye bolt to the top of the galvanized post NYLON STRING 8. Lift the assembly and place in the hole, inserting the post into EYE BOLT the pre-assembled base.

  • Page 7: Base Assembly

    MODEL NO. SPACE CRAFT W INAM GROUP Base Assembly GS-SC2100 Rev_1 2017.07 Assemble all parts of base as shown below No. 23: Base Half Collar No. 22 Angle Brace No. 101. M12 x L35 Bolt set No. 101. M12 x :35 Bolt set NO.21 : Galvanized Base ▲...
  • Page 8 MODEL NO. SPACE CRAFT W INAM GROUP Upper Half Ring Assembly GS-SC2100 Rev_1 2017.07 No. 63: Nylon Joint Attach the two half rings with the nylon joints. Align the opening in the net with the opening in the ring fasteners before attaching the net to the ring. No.
  • Page 9 MODEL NO. SPACE CRAFT W INAM GROUP Spider Net & Upper net Assembly GS-SC2100 Rev_1 2017.07 Attach the upper ring to the upper net Attach the spider net to the upper ring and the post Fix bolt and nut No. B Spider Net No.

  • Page 10: Deck Assembly

    MODEL NO. SPACE CRAFT W INAM GROUP Deck Assembly GS-SC2100 Rev_1 2017.07 No. 41A to 41H Deck No. 104: M10 X L100 Bolt Set No. 106: M12 x L35 Bolt Set Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333...
  • Page 11 MODEL NO. SPACE CRAFT W INAM GROUP Deck (A to H) Assembly GS-SC2100 Rev_1 * Bottom 2017.07 ! Attention Please follow the assembly sequence. ▲ Bottom of the deck Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333 ward, Tan Phu district, Ho Chi Minh city, Viet Nam...
  • Page 12 MODEL NO. SPACE CRAFT W INAM GROUP Deck Cover Plate Assembly GS-SC2100 Rev_1 Assemble Deck Cover Plate like A ,B ,E and F before assembling bottom decks 2017.07 No. 109 RH Bolt Set No. 42 Dec k Holder No. 41-A to 41-H Deck Cover Plate Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn...
  • Page 13 MODEL NO. SPACE CRAFT W INAM GROUP Deck Cover Plate Assembly GS-SC2100 Rev_1 No. 42 2017.07 Deck Holder No. 109 RH Bolt Set Assemble Deck Cover Plate like C,D,G and H after assembling decks Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333...
  • Page 14 MODEL NO. SPACE CRAFT W INAM GROUP Deck Cover Plate Assembly GS-SC2100 Rev_1 No. 106: 2017.07 M12 x L35 Bolt Set No. 61 L-Angle No. 41-A to 41-H Deck Cover Plate No. 108 RH Bolt Set Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333...
  • Page 15 MODEL NO. SPACE CRAFT W INAM GROUP Lower net assembly GS-SC2100 Rev_1 2017.07 Assemble net in the attach with fix bolt and nut No. 5 Upper Half RING No. C Lower Net No. 6 LOWER RING Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333...

  • Page 16: Cap Assembly

    MODEL NO. SPACE CRAFT W INAM GROUP Cap assembly GS-SC2100 Rev_1 2017.07 Remove the eye bolt Install the cap on the top of post Remove the eye bolt. No. 62 Post cap No. 111 RH Bolt Set Room 101, 226/4 A Le Trong Tan, Tay Thanh E-mail) info@playground.com.vn WINAM GROUP Tel) (028) 22 494 333...
  • Page 17 MODEL NO. SPACE CRAFT W INAM GROUP PARTS LIST GS-SC2100 Parts check list No. 62 Rev_1 Post cap 2017.07 A. Upper Net Spider Net Lower Net No.1 Outer Post No. 111 Outer Post Inner post RH Bolt Set Upper Half Ring No.
  • Page 18 MODEL NO. SPACE CRAFT W INAM GROUP Deck Assembly GS-SC2100 Parts check list Rev_1 No. 42 2017.07 Upper Net Deck Holder Spider Net No. 109 Lower Net RH Bolt Set Outer Post Inner post Upper Half Ring Lower Ring 21. Galvanized Base 22.
  • Page 19 MODEL NO. SPACE CRAFT W INAM GROUP PARTS LIST GS-SC2100 Parts check list Rev_1 2017.07 No. 106: Upper Net M12 x L35 Bolt Set Spider Net Lower Net Outer Post Inner post No. 61 Upper Half Ring L-Angle Lower Ring 21.

  • Page 20: Maintenance

    MODEL NO. SPACE CRAFT W INAM GROUP Maintenance GS-SC2100 Rev_1 2017.07 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground;...
  • Page 21 MODEL NO. SPACE CRAFT W INAM GROUP Maintenance GS-SC2100 Rev_1 C. Routine maintenance 2017.07 To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
