Summary of Contents for tbs electronics SD-900 One

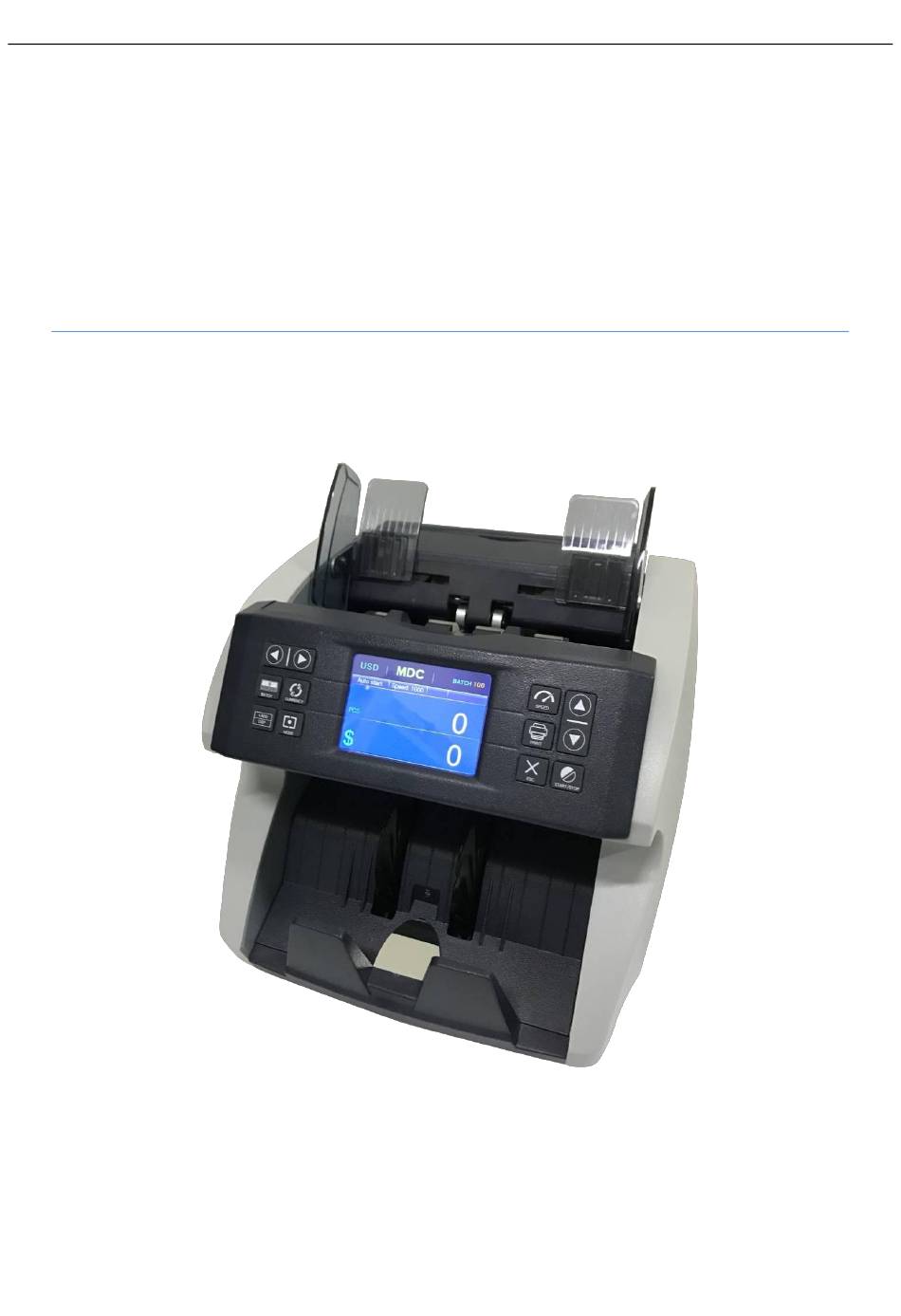

- Page 1 USER MANUAL 1 Pocket Multi-currency Banknote Counter P a g e...
-
Page 2: Table Of Contents
Contents 1. Introduction ......................................2 2. Specifications ......................................3 3. Control Panel ......................................4 4. Operation Modes ....................................5 5. Maintenance and notice ................................. 5 P a g e... -
Page 3: Introduction
1. Introduction Thank you for choosing this professional multi-currency value counter based on CIS sensor. We hope you enjoy using it. This professional counter features its unique feeding mechanism and best performance of counting and detecting your banknotes. P a g e... -
Page 4: Specifications
Please be sure to close the back middle cover before opening the machine. 2. Specifications Unit Dimensions: 28CM(W)*26CM(D)*27CM(H) / 11”(W)*10.2”(D)*10.6”(H) Unit Package: N.Weight: 6.5KGS G.Weight: 7.5KGS Counting Speed: 800/1000/1200/1500notes/min for CNT mode, 800/1000/1200 notes/min for SDC & MDC modes Size of Countable notes: Minimum 110x60 mm, Maximum 185x90 mm Thickness 0.08~0.12 mm Feed system:... -
Page 5: Control Panel
3. Control Panel MODE: This button is used to switch among CNT mode (Count), SDC mode (Single Denomination Count) & MDC mode (Mixed Denomination Count). Button BATCH: This button is used to switch on/off batch mode. When BATCH is on, then use ↑→↓← buttons to input the batch number. -
Page 6: Operation Modes
Button SPEED: The default function is to select different available counting speeds. Button ↑: This button is used to move up the cursor or adjust number magnitude in batch setting mode. Button ←: The default function is to move the cursor left. When in batch setting mode it chooses the number digits. - Page 7 -Product: 1 pocket Multi-currency Banknote counter P a g e...
