Heat distribution kit

Advertisement

Quick Links

Please
ensure
that
Disribution Kit has not been damaged.
IMPORTANT: When installing the Heat
Distribution Kit, the clearances shown
in Figure 12 must be maintained.
Rear of the Unit
Duct Cover Plate
Figure 2: Remove the duct cover.
1. Remove the rear standoff and the duct
cover plate from the back of the unit.
Rear of the Unit
Hot Air Duct Angle
Figure 3: Install the hot air ducts.
Distribution Kit
your
Heat
Item
Rear Standoff
2. Insert the hot air duct and the hot air duct angle into the cut out
3. Cover the hot air duct opening with the Fireplace Vent Duct
Hot Air Duct
50-1935 Heat
Description
1
Hot Air Duct
2
Hot Air Duct Angle
3
Fireplace Vent Duct
4
Fan Bezel
5
Front Access Cover
6
Fan
7
Fan Housing Assembly
8
Fan Housing Mounting Bracket
9
5" Round Flex Line Air Duct

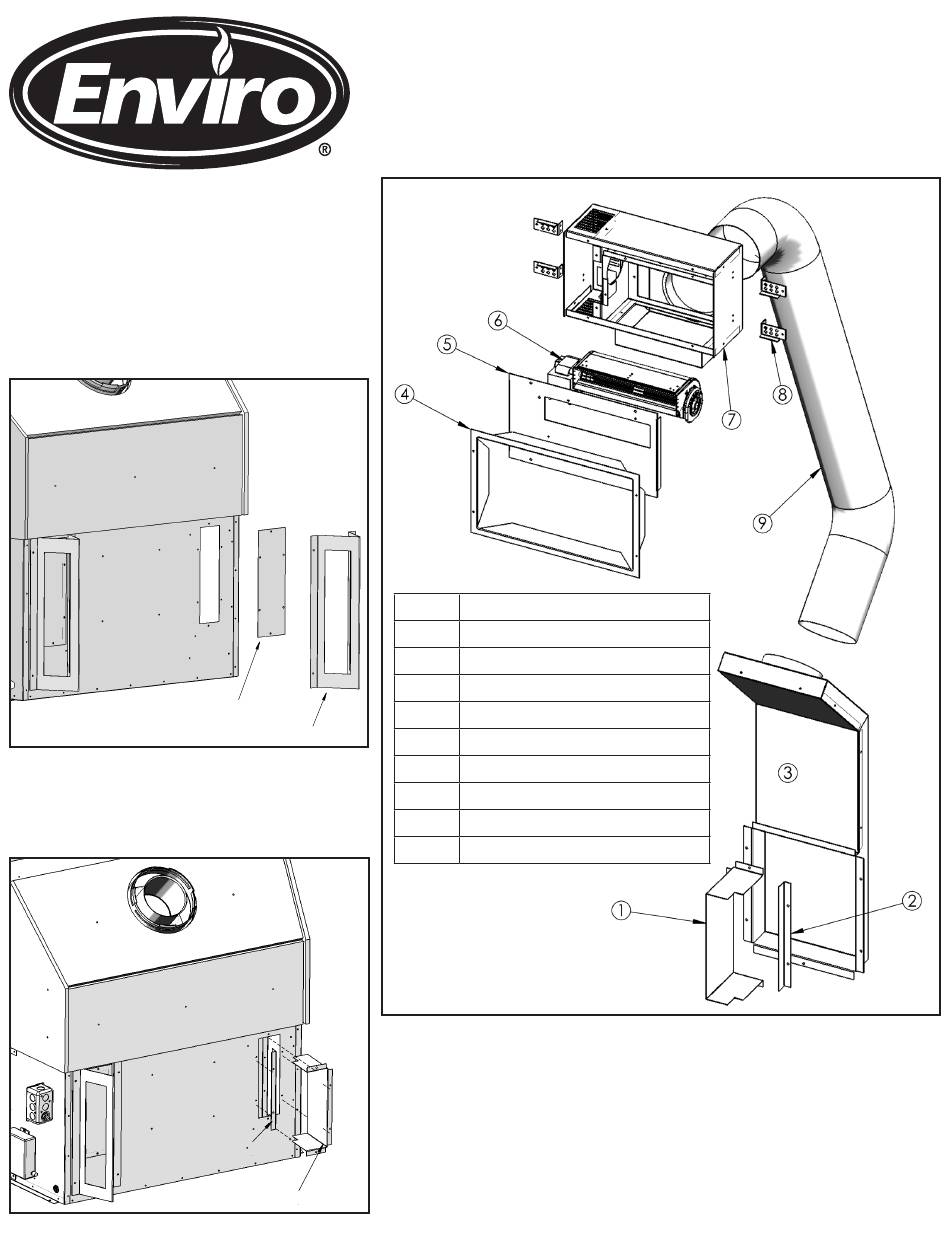

Figure 1: Heat Distribution Kit's Parts Diagram.
(refer to Figure 3). Secure the ducts to the back of the fireplace
through the pre-drilled holes with hex head screws.
(refer to Figure 4). Push the vent duct kit against the back of
the fireplace and secure it in place with five (5) ¼" HWH self
drilling screws.
