Installation & Operation Manual
AccuStation
Manufactured by:
21 Commerce Drive
Danbury, CT 06810 USA
WWW.ACCUTROLLLC.COM
Contents of this Manual are Subject to Change Without Notification
- Model VTS
Airflow Measurement
Station
Accutrol Representative:
VTS MANUAL REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Accutrol VTS

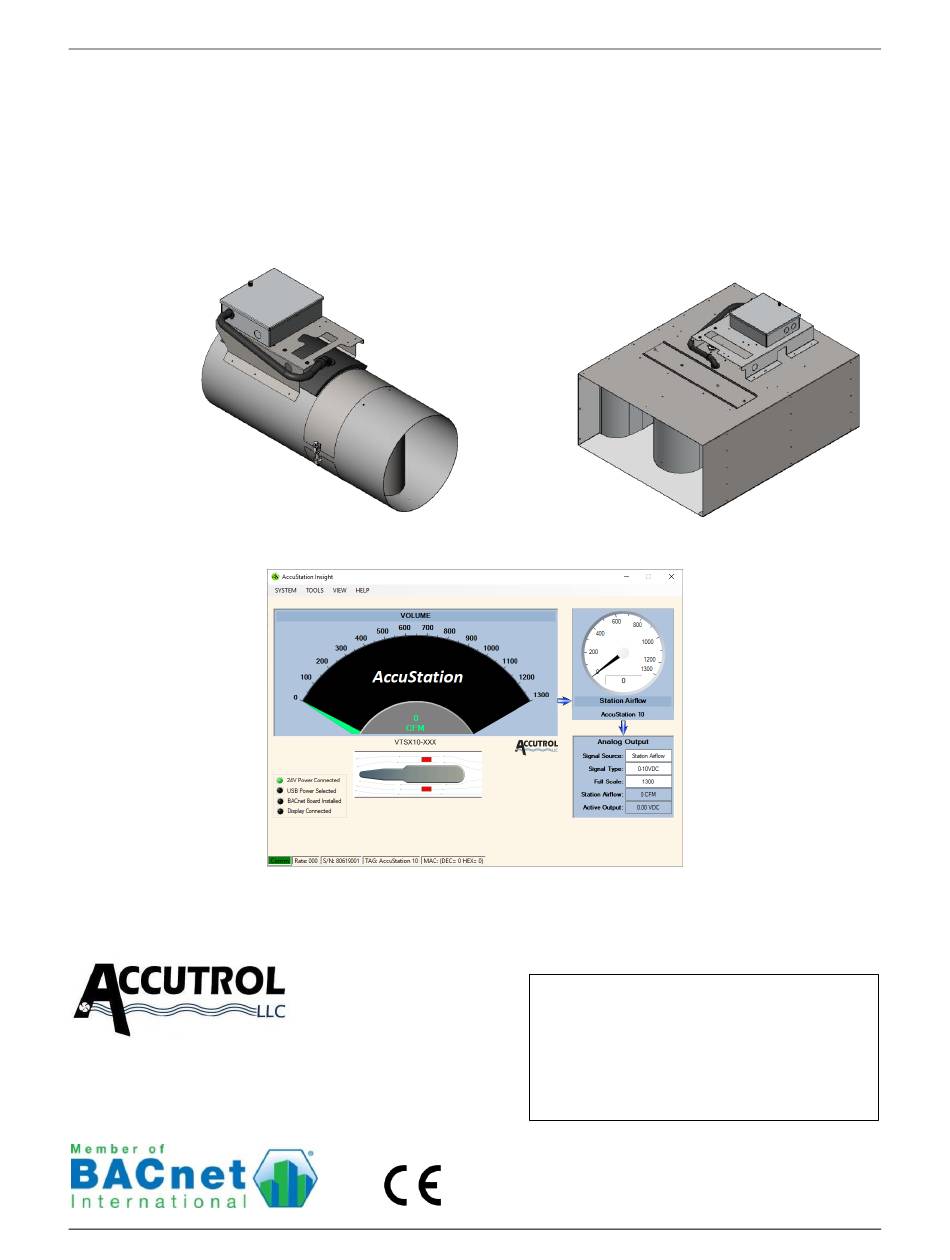

  • Page 1 Installation & Operation Manual - Model VTS Airflow Measurement AccuStation Station Manufactured by: Accutrol Representative: 21 Commerce Drive Danbury, CT 06810 USA WWW.ACCUTROLLLC.COM VTS MANUAL REV A Contents of this Manual are Subject to Change Without Notification...
  • Page 2: Limited Warranty

    Installation & Operation Manual - Model VTS LIMITED WARRANTY Accutrol LLC, having its principal place of business at 21 Commerce Drive, Danbury, CT USA ® ("Manufacturer") warrants its AccuStation , Model VTS product (the "Products") as follows: 1. Limited Warranty.
  • Page 3: Table Of Contents

    Installation & Operation Manual - Model VTS TABLE OF CONTENTS LIMITED WARRANTY ........................ ii TABLE OF CONTENTS ....................... iii SECTION 1 - INTRODUCTION ....................4 SECTION 2 - SPECIFICATIONS ....................5 SECTION 3 – PHYSICAL DIMENSIONS & WEIGHTS ............9 SECTION 4 - INSTALLATION ....................
  • Page 4: Section 1 - Introduction

    - Model VTS SECTION 1 - INTRODUCTION The VTS product family is intended for applications that require accurate and repeatable airflow measurement with high turn-down for applications that have challenging inlet conditions. The VTS incorporates a state-of-the-art vortex shedding digital transmitter with an intuitive user- interface software known as the AccuStation Insight.
  • Page 5: Section 2 - Specifications

    Installation & Operation Manual - Model VTS SECTION 2 - SPECIFICATIONS PERFORMANCE Accuracy +/- 5% of reading or 5 CFM, whichever is greater Min Operating Pressure Reference Section 2.1 Airflow Range Reference Section 2.1 ENVIRONMENTAL Temperature Airstream: -20 to 165 deg. F Ambient: -20 to 125 deg.
  • Page 6 Installation & Operation Manual - Model VTS 2.1 Operating Range The operating range of each AccuStation is provided below along with a characteristic curve showing the relationship between the minimum operating pressure and maximum airflow volume as tested in accordance with ANSI/ASHRAE STD 130.
  • Page 7 Installation & Operation Manual - Model VTS 0.45 0.40 0.35 0.30 12” AccuStation Operating Range: 0-1790 CFM 0.25 Min. Measurement: 180 CFM 0.20 0.15 0.10 0.05 0.00 1000 1200 1400 1600 1800 Max Airflow (CFM) 0.45 0.40 0.35 0.30 14” AccuStation 0.25...
  • Page 8 Installation & Operation Manual - Model VTS 0.45 0.40 0.35 0.30 12x24” AccuStation 0.25 Operating Range: 0-4000 CFM Min. Measurement: 350 CFM 0.20 0.15 0.10 0.05 0.00 1000 1500 2000 2500 3000 3500 4000 Max Airflow (CFM) 0.45 0.40 0.35 0.30...
  • Page 9: Section 3 - Physical Dimensions & Weights

    Installation & Operation Manual - Model VTS SECTION 3 – PHYSICAL DIMENSIONS & WEIGHTS 3.1 Round AccuStation Sizes Transmitter Access Cover Housing Dimensions Weight Model Size “D” “L” “H” Stainless Steel Aluminum Lbs. Lbs. 5.88 7.88 9.88 11.88 10.0 13.88 11.3...
  • Page 10: Section 4 - Installation

    AccuStation is not position sensitive, it can be installed in any plane or rotational axis without having impact on the performance. NOTE: Screws, nuts, fasteners, duct sealant, hangers, companion flanges and gaskets are NOT provided by Accutrol. Page 10 Contents of this Manual are Subject to Change Without Notification...
  • Page 11 For corrosive exhaust applications, apply PTFE tape Locate duct supports within 12” of each end of the station. (available from Accutrol) over the station/duct seams. 6. Secure both ends of station to the duct using draw band clamps. Flanged Station “Option –F” Secured to Duct with Companion Flanges and Hardware 1.
  • Page 12 Installation & Operation Manual - Model VTS 4.2 Rectangular Station Installation Diagrams Station Sizes 18 and 24 1. Verify the opening in the duct is properly sized for the station and installation method being used. Also verify both ends of the duct where the station is to be attached are true and square before attempting to install station.
  • Page 13: Section 5 - Wiring

    Installation & Operation Manual - Model VTS SECTION 5 – WIRING 5.1 VTS Transmitter Description Cover Tab Slot Captive Thumb Screw for Removing/Securing Cover Connection from optional monitor using factory supplied cable. NOTE: If a direct conduit connection is required, remove strain relief fitting and...
  • Page 14: Section 6 - Accustation Insight Configuration Software

    Accutrol LLC at 203-445-9991. 6.4 Connecting the PC to the VTS Transmitter 6.4.1 For connecting directly to the VTS Transmitter, remove the cover from the transmitter and connect the USB cable into the USB C type connector located on the transmitter per the figure below.
  • Page 15 - Model VTS 6.4.1.1 Power Source Switch The VTS Transmitter pcb has a Power Source Switch which should always be in the “Operational Position” for the transmitter to function normally. The “Nonoperational Position” is provided so the transmitter can be programmed or configured when there is no 24v power source available.
  • Page 16 Start Menu and select Programs > AccuStation Insight. To communicate to the VTS via USB connection, select “Locate Accutrol Devices” then select the com port associated with the VTS that your computer is connected to. 6.5.1 Insight Dashboard The Insight Dashboard is the primary screen for accessing the transmitter parameters and viewing the real-time performance of the VTS transmitter.
  • Page 17 Analog Output. To change the full-scale range, click on the gauge face. 6.5.5 Analog Output Configuration The VTS’s Analog Output is primarily used to provide an analog signal representing the Airflow Volume flowing through the station. The signal type and full-scale range of the Analog Output are user-defined values that are configured by clicking on the boxes adjacent to each heading.
  • Page 18 Installation & Operation Manual - Model VTS The following examples show the two different options for configuring the Analog Output. Example 1 shows the Signal Source set to “Station Airflow” which is the most common configuration. Example 2 shows the Signal Source set to “Manual Output” which is typically used for troubleshooting wiring issues.
  • Page 19 Retrieve Generic Configuration Files from the Cloud (Downloaded w/ Insight) ➢ If connected to the internet, this command will bring you to the Accutrol Cloud where configuration files can be retrieved. Print ➢...
  • Page 20 This offset is applied as an Equal % Cal. Adj. which does not overwrite the factory calibration of the VTS. Using this function is not normally required with the AccuStation (or advisable) and is only provided as a tool for the Airflow Balancer to correlate the VTS airflow measurement to a field airflow measurement.
  • Page 21 Installation & Operation Manual - Model VTS ➢ Filters: Provides the ability to filter the airflow volume reading and the analog output. Measurement ➢ Airflow Measurement: Opens the Airflow Measurement Window Configuration ➢ Airflow Units: Opens the window required for configuring the units.
  • Page 22: Section 7 - Optional Bacnet Ms/Tp

    6 = LPM Notes: 1. The VTS transmitter has an internal counter which limits the number of flash writes to 10,000. BACnet point AI2 is provided so the number of remaining flash writes available can be monitored over the BACnet.
  • Page 23 Objects; AI and AV shall support the COV_INCREMENT property which shall also be writable. 7.1.1 Save Active Configuration to Nonvolatile Flash Memory The Accutrol VTS Transmitter has both volatile (RAM) and nonvolatile (Flash) memory. RAM memory does not have a limitation on the number of times it can be written, whereas Flash memory does.
  • Page 24: Section 8 - Maintenance

    Installation & Operation Manual - Model VTS SECTION 8 – MAINTENANCE Scheduled maintenance for the VTS is not required; however each AccuStation does include an access cover which can be removed to inspect the airflow sensors if desired. 8.1 Round Station Access Cover CAUTION: Wear eye protection, cut-resistant gloves and clothing suitable for working with sheet metal.
  • Page 25 Installation & Operation Manual - Model VTS 8.2 Rectangular Station Access Cover CAUTION: Wear eye protection, cut-resistant gloves and clothing suitable for working with sheet metal. Failure to do so may result in personal injury. Access Cover 8.2.1 The access cover is secured to the station using (4) #2 blunt-head Phillips head screws. To inspect the sensors, remove the access cover by removing the screws using a #2 Phillips head screw driver.
