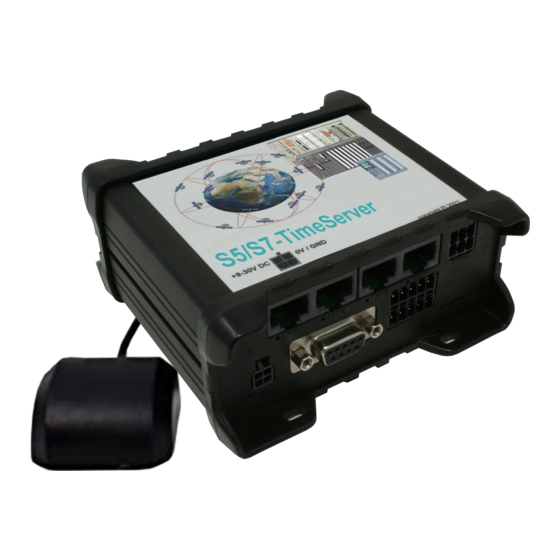

9367-TimeServer-EUROPE
Operation Quick Start Guide V1.0 for
S5/S7-TimeServer - EUROPE
S5/S7-TimeServer - WORLD
This page contains the brief instructions for the S5/S7-TimeServer-devices. Here you will find an overview of
the various components on the front and back, basic hardware installation, initial login information, device
specifications and general safety instructions. It is highly recommended that you familiarize yourself with the
quick start guide before using the device. If you have a CONNECT-CONTROL-device, you will also find a
printed version of the quick start guide in the device packaging or online on the device's product page.
The only difference between the devices is the used built-in LTE modem. The Europe variant can only be used
in Europe, the World variant anywhere in the world.
Connections:
Frontside:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for process-informatik S5/S7-TimeServer - EUROPE
- Page 1 9367-TimeServer-EUROPE Operation Quick Start Guide V1.0 for S5/S7-TimeServer - EUROPE S5/S7-TimeServer - WORLD This page contains the brief instructions for the S5/S7-TimeServer-devices. Here you will find an overview of the various components on the front and back, basic hardware installation, initial login information, device specifications and general safety instructions.
- Page 2 Backside: Power connector: Description Wire-color +9 – 30V DC Black Green White Hardware-installation 1.) Attach WiFi and GPS antennas (WLAN antenna only if access is to take place via WLAN ) 2.) Connect the power adapter to the power socket located on the front panel of the device. Then plug the other end of the power adapter into a power outlet.
- Page 3 Computer-configuration (Windows): 1.) Enable the wireless network connection (go to Start → Control Panel → Network and Internet → Network and Sharing Center. In the left panel click the Change adapter settings link. Right click on Wireless Network Connection and select Enable). 2.) Setup wireless network adapter on your computer (right click on Wireless Network Connection and select Properties.
- Page 4 5.) Choose the wireless network RUT955_**** from the list and click Connect. Enter the WiFi password located on the device's label Commissioning: Connect laptop to this WiFi network or LAN-cable in one of the 3 LAN-port and open with – browser webserver with IP: http://192.168.1.1 The navigation is done by clicking on the navigation-symbol (...
- Page 5 Parameter: name: Name of this connection IP address: IP address of S7-PLC (or S7-LAN-module or S5-LAN++) chanel-type: OP-, PG-, or unspecific connection (depending on which connection is free in the HW-Config of an S7-PLC ) rack number: Rack number of S7-PLC (usually 0) slot number: Slot number of CPU-assembly, usually slot 2 (for S7-400 with wide power-supply slot 3)
- Page 6 Under the web-address https://www.process-informatik.de are product specific documentations or software-driver/-tools available to download. If you have questions or suggestions about the product, please don’t hesitate to contact us. Process-Informatik Entwicklungsgesellschaft mbH Im Gewerbegebiet 1 DE-73116 Wäschenbeuren +49 (0) 7172-92666-0 info@process-informatik.de https://www.process-informatik.de...
- Page 7 Data logging of your PLC You shortly need a logging of your PLC's operating states respectively are on the way of figuring out a problem and have no datalogger? No problem, connect the PC, start the PG-2000-software with "option datalogger", define relevant variables, appoint timestamp and then the recording starts running immediately.
- Page 8 Integrated Firewall-protection You looking for a device with which you can create a remote maintenance via the Internet without compromising security? No problem, the TELE-Router offers exactly this feature. With the built-in firewall, you can adjust the device completely to your requirements. Data backup S5-PLC on FTP-Server S5-PLC triggered DB-backup/-restore without additional PC via PG-socket and Ethernet on FTP-server...
