EZ SET-UP GUIDE
OVERVIEW
- Watch live via smart phones, PC and other tablets.
- Record 24/7 on to your HD using a PC.
Our system can record reliably using schedule and motion detection.

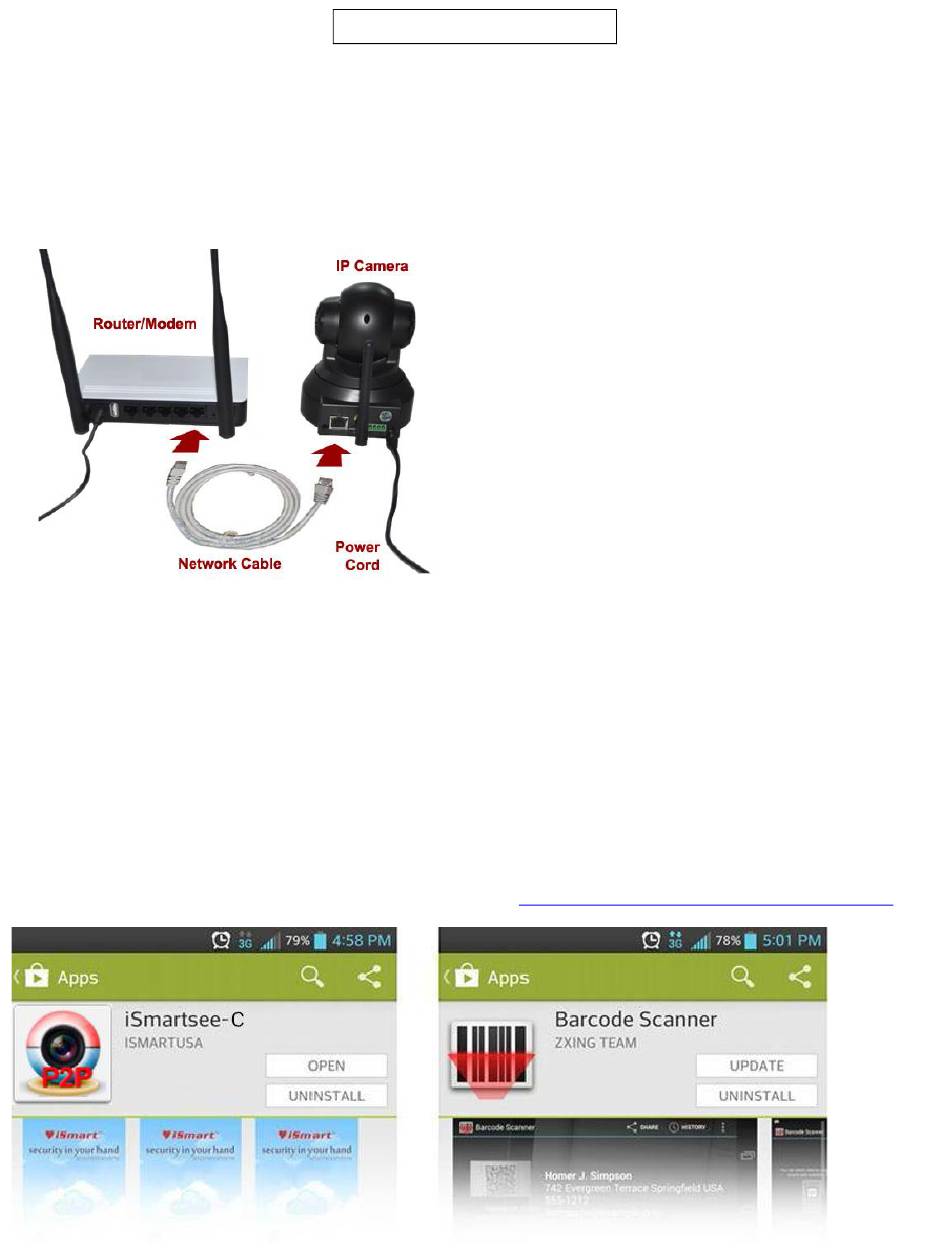

1. Connect the camera to your router
.
- Make sure your router is ON and connected to internet.
- Connect the IP camera to your router via network cable and plug-in the power supply for the camera.
- Green & Orange network light on the camera will turn ON, wait about a minute for the camera to be
configured automatically with our set-up server.
* Network cable can be removed later after the initial set-up is done. (see2.6)
2. Smart Phone Set Up
(images may vary)
2.1 Using App Store, or Google Play, download and install following apps : "ismartsee-C" & "barcode scanner"
This is a newest version camera and it may not be available yet in Google Play (A & B version will not work)
Please use the app program included in the CD or download from:
www.spycameras.com/resources/ismartsee-c.apk

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Spy Cameras EZ

  • Page 1 EZ SET-UP GUIDE OVERVIEW - Watch live via smart phones, PC and other tablets. - Record 24/7 on to your HD using a PC. Our system can record reliably using schedule and motion detection. 1. Connect the camera to your router - Make sure your router is ON and connected to internet.
  • Page 2 2.2 Run the App and click on “add new camera” 2.3 Click “scan ID”, (fig.1) and point the smart phone towards the UID sticker on the camera or on the box. 2.4 After a “beep” sound, the UID is scanned in successfully (fig.2). You can also input the UID manually 2.5 Input default username: “admin”, pw should be left blank, hit “OK”...
  • Page 3 Rest of the features are self explanatory. Please feel free to experiment with different settings and features yourself. See “Other Features” and “Q & A” section of this manual for more information. The App was designed to cover many other different camera models, therefore there are functions in the App that your camera does not support.
  • Page 4 3.2 Click on “Search & Add Camera” button. 3.3 Click on “Find”. If you are in a remote location, type in the UID code & PW manually and hit OK. 3.4 Camera UID will appear, if not, hit “refresh” until it 3.5 UID will now show on the screen.
  • Page 5 4.0 Wireless (Wi-Fi) Set-up If your camera is still connected via network cable, follow the next steps to make it wifi-wireless. 4.1 Right click on the camera image and select “camera options” 4.2 Hit ”Set Wifi” button, following screen will appear: 4.3 1) Hit “Search signals”...

  • Page 6: Schedule Recording

    Other Features and Notes for CMS Software It’s important to note that all settings such as motion detection, flip image, alarm, resolution, etc. are stored in the camera itself, not in the software or your phone. In other words, you can change the settings from any devices but will be applied to all devices connected.

  • Page 7: Motion Detection Recording

    - Motion Detection Recording Motion detection recording is one of many functions among alarm feature. Alarm is triggered when pixel movement within the video is detected. This also means that the detection range is infinite. No matter how far the moving object might be, as long as it is big enough to move pixels in a display, will trigger the alarm. Click on the following buttons from the “camera Select the days and times of alarm and hit “OK”...

  • Page 8: Troubleshooting

    Trouble Shooting INSTALLATION DISK I lost my installation CD. Please download from: Manual: www.spycameras.com/resources/ezset-c.pdf Android App: www.spycameras.com/resources/ismartsee-c.apk PC CMS: www.spycameras.com/resources/SuperIPCam.exe THE CAMERA Camera connects with network cable but wifi does not work. Reason# 1. Password for your wireless router was wrong. Please check your PW, re-connect the camera with network cable and try again.

  • Page 9: Smartphone App

    PC CMS SOFTWARE PC CMS software was installed, prompted to upgrade to newer version, so did, and now it does not work. When you install the software and start for the first time, it will ask to upgrade to a newer version, DO NOT UPGRADE!!! The camera already comes with the latest version and by upgrading it will change to a different version that will not work with our cameras.
  • Page 10 Q & A Q: My camera came with a network cable, is it not wireless? A: It is wireless. All WiFi wireless cameras need a network cable connection for an initial set-up because 2-way communication is required for a set-up. Then when wireless mode is engaged, cable is no longer needed. Also, therefore, you cannot just wirelessly connect the camera to someone else’s network.
  • Page 11 Q: How do you use an IR lamp with my camera? A: Think of an IR lamp as if it’s a flash light that emits lights only visible to a camera. So the room stays dark but the camera will see the room like if there is a flash light shining upon the room. You do not need to make any connection to the camera and all you have to do is plug-in the power for the IR lamp and direct it towards the area.
