INSTALLATION MANUAL
RJ45 Output
A
B
Transmitter
Cable Requirements
4 pair twisted cable
Hardware Connection
1. Ensure all power to equipment is switched off prior to
installation.
RL-BV140A
2. Connect RCA cable from terminals A of Transmitter to
the AV source.
3. Connect a second RCA cable from loop through
terminals B of Transmitter to the AV input of the local
device if required.
4. Connect RL-IR700/800* IR emitter to the output C of
Transmitter. Place the other end within 25cm of the IR
receiver on the AV source (depending on environmental
conditions).
5. Connect RJ45 socket (Output A) of Transmitter to RJ45
input of Receiver in zone A.
WARRANTY
Vcomm Pty Ltd states that the warrant that the customer can rely on is that
provided by the manufacturer. In the event of any warranty claim please
contact us and we will forward it to the manufacturer. The manufacturer will
then determine the extent of their liability. This expressly negates, to the
extent possible by Australian law, any warranty reliance on Vcomm Pty Ltd.
®
'linx-AV' Quad IR Composite AV Balun Transmitter (1:4)
H
RL-BV150B
RL-BV140A
IR
C D
E
F
Receiver
AV Distribution Range
Composite IR AV Balun Receiver
RJ45 Input
G
RL-BV150B
6. Connect Video lead (yellow to yellow) from RCA Video
Output F of Receiver to the yellow RCA Video input on
AV device (TV, etc).
7. Connect Audio lead L & R RCA connectors (R&W) from
output G on Receiver, to the corresponding RCA
inputs on the AV device (TV, etc).
8. Connect RL-BV500* IR target to input
Flat target can be easily mounted (either directly using
adhesive backing, or by using RL-ACC150* Target
Mount) to the desired location, anywhere within the line
of sight of remote controls.
9. Repeat steps 5 - 8 for connection of zones B, C and D.
10. Connect supplied 12V DC switch mode power pack to
power input E on Transmitter.
11. Once installation is complete, switch on power to
all equipment. Check green PWR LED
Transmitter is illuminated.

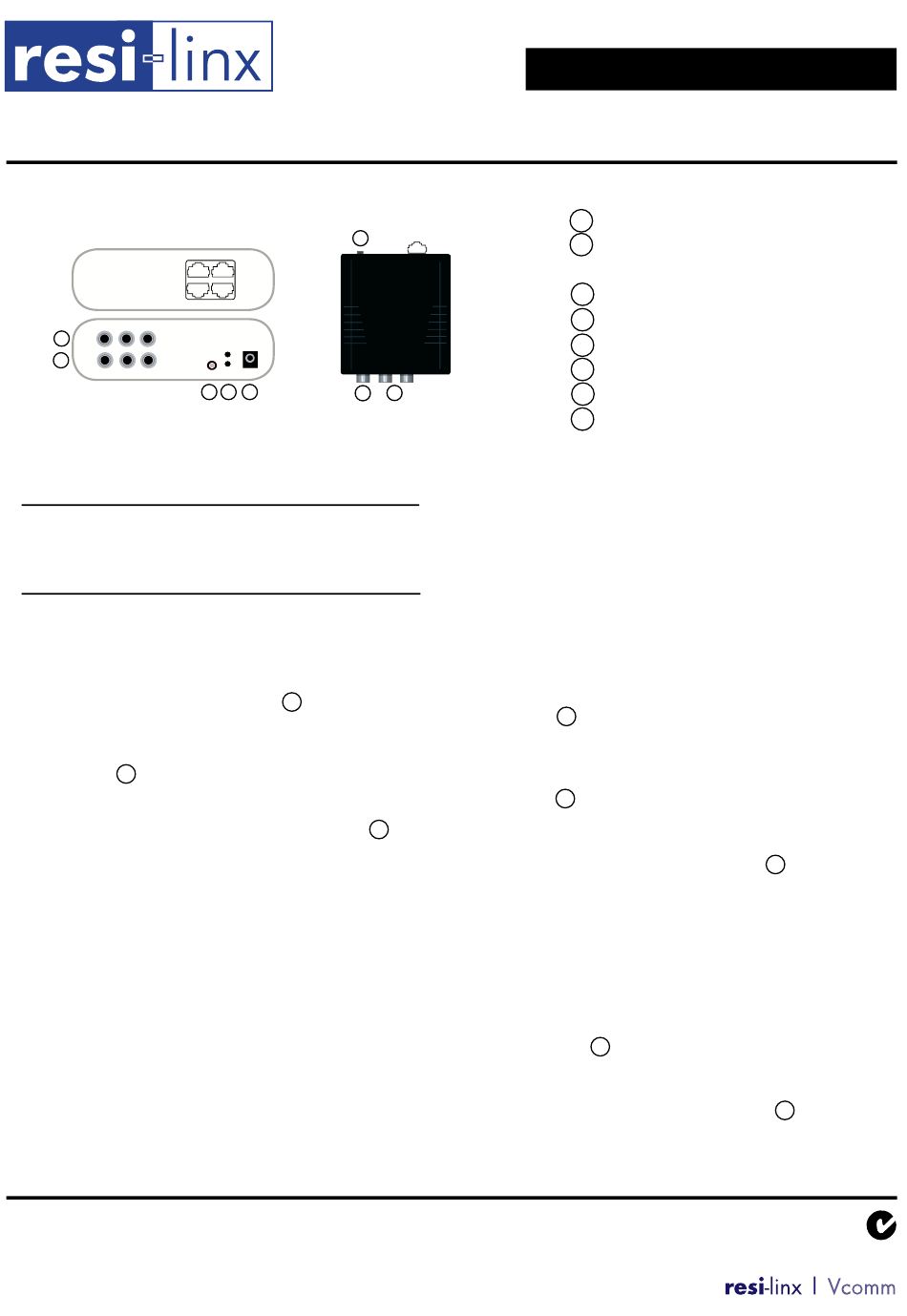

RL-BV140A / RL-BV150B
A RCA Video and Audio input
B Loop Through RCA
Video and Audio output
C IR Emitter output
D IR / Power LED's
E 12V DC Power input
F
RCA Video output
G RCA Audio output
H IR Target input
H on Receiver.
D
on
* Sold separately
