Bed BariBed 600BOY

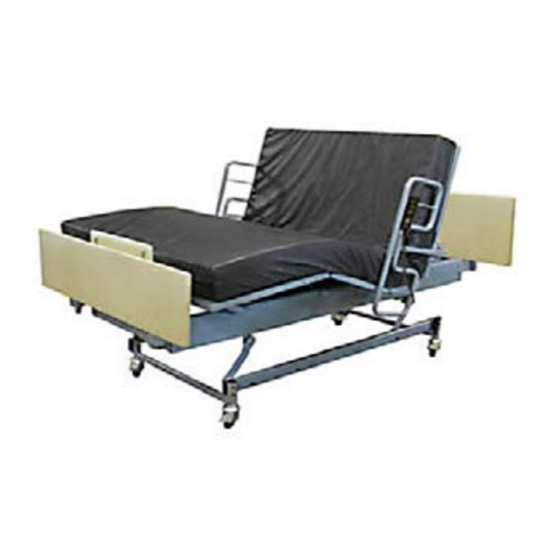

The Baribed 600 BOY is the perfect fit in a Home or
clinical setting. This Bed Model is fully electric with a
750 lb weight capacity. As it is difficult for someone of
large proportions to feel secure and comfortable in a
standard size bed, Big Boyz has developed these beds
to provide stability and quality of life for the large size
person.
The Baribed 600 BOY bed features smooth and quiet
Linak™ motors which allow for dynamic movement
without disturbing a partner or surrounding residents.
The foot section does not pitch down, but plateaus to
reduce edema of lower extremities. All electronics are
completely enclosed, fully grounded with hospital grade
3 prong heavy duty plug and cord. Electronics and motors are UL listed, 115 volts. Remote features 6 button
control for all functions, is low voltage, and has a high impact resistant case. Optional bed mounted trapeze,
heavy duty side rails, and integrated digital scale are also available.
Key Product Features
ALL ELECTRIC
•
Steel Pan Deck...For Proper Mattress
Support
•
Easy Touch Hand Control 12 Volt
•
Large Capacity/Extra Wide
•
All Electronics And Motors Ul Ap-
proved
PATIENT CONTROL:
•
8 Button Control For All Functions
•
Low Voltage
•
Low Energy
•
High Impact Resistant Case
ELECTRONICS:
•
Electronics Completely Enclosed
•
Fully Grounded, With Hospital Grade,
3 Prong, Heavy Duty Plug And Cord
•
Electronics And Motor Ul Listed
•
Voltage 115V
861 Taylor Rd., Suite "I"
Columbus, Ohio 43230
www.ame-medical.com
Cardio Chair
Position
Trendelenberg
Position
PAGE 1
Phone: 1-866-633-2337
Fax: 1-614-237-1177
customerservice@ame-medical.com
Advertisement
Table of Contents
Summary of Contents for American BARIBED 600 BOY
- Page 1 Bed BariBed 600BOY The Baribed 600 BOY is the perfect fit in a Home or clinical setting. This Bed Model is fully electric with a 750 lb weight capacity. As it is difficult for someone of large proportions to feel secure and comfortable in a...
- Page 2 REMOTE CONTROL AND SETTINGS EMERGENCY EVACUATION PROCEDURE - For Bed Models w/Convertible Feature • Pull off side Velcro bolsters • Pull out cable extension pins • slide bed deck extensions in towards center of bed • Perform this procedure on right and left side of bed deck surface •...
- Page 3 IMPORTANT WARNINGS WARNNG: POSSIBLE INJURY: • Before adjusting bed, check that nothing is under or near bed. Keep children and pets away from the bed to prevent injury. • Keep bed in lowest position except for providing care (bathing, clothing changes, etc.) Entering or exiting a raised bed could result in falls or injury.
- Page 4 CLEANING RECOMMENDATIONS ROUTINE CARE: • Do not use harsh cleaners or solvents. • Follow all manufacturer directions for dilution of concentrated cleaning agents. • Wipe fabric clean with neutral soap suds and lukewarm water. rinse thoroughly and allow drying before return to service. •...
- Page 5 ASSEMBLY INSTRUCTIONS: Tools Required For Assembly: 1. Hammer 2. 3/16 Inch Punch 3. 9/16 Rachet & 9/16 Box Wrench 4. 7/16 Rachet & 7/16 Box Wrench 861 Taylor Rd., Suite “I” Phone: 1-866-633-2337 Columbus, Ohio 43230 Fax: 1-614-237-1177 www.ame-medical.com customerservice@ame-medical.com...
- Page 6 ASSEMBLY INSTRUCTIONS: STEP 1 The bottomm portion of the assembled bed will be in the low position. Plug bed in. STEP 2 Insert hand control. When inserting hand control, pins of junction box must match up with plug of hand wand. STEP 3 Attach saddle section to the frame, inserting the four bolts from the saddle section into the four holes on the frame.
