Topens TC102 User Manual

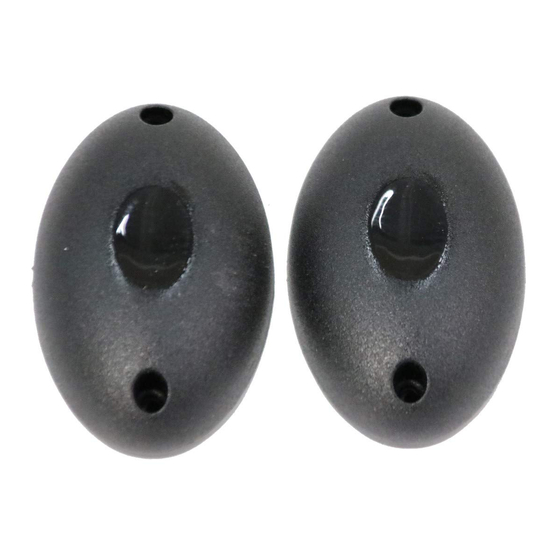

User Manual of the Photocell Beam Sensor
Model: TC102

Specifications:

 Technology: Infrared (Photocell)
 Receiver range: ≤20m. Range can be reduced to 30% in bad weather conditions,
such as rain, dust etc.
 Frequency: 1.92 KHz
 Power supply: 12 to 24V DC/AC
 Wave length: 940nm
 Input: RX 15mA-TX 30mA, Angle: <±10°
 Working temperature: -20℃-+50℃
 Relay output: 1A max 30V

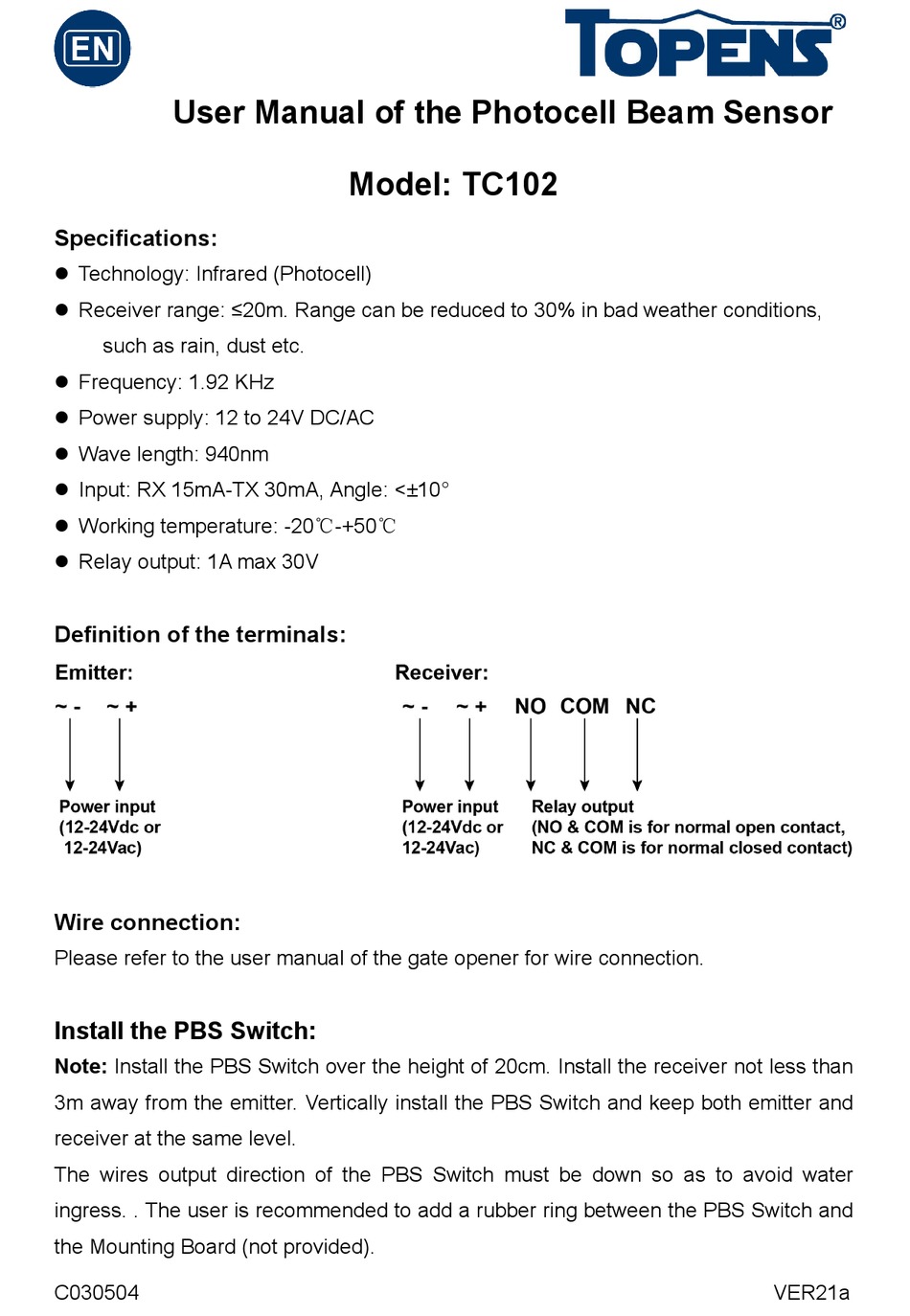

Definition of the terminals:

Wire connection:

Please refer to the user manual of the gate opener for wire connection.

Install the PBS Switch:

Note: Install the PBS Switch over the height of 20cm. Install the receiver not less than
3m away from the emitter. Vertically install the PBS Switch and keep both emitter and
receiver at the same level.
The wires output direction of the PBS Switch must be down so as to avoid water
ingress. . The user is recommended to add a rubber ring between the PBS Switch and
the Mounting Board (not provided).
