QuattroPod Lite
Advanced Web Setting Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuattroPod Lite and is the answer not in the manual?

Questions and answers

Related Manuals for EZCast Pro QuattroPod Lite

Summary of Contents for EZCast Pro QuattroPod Lite

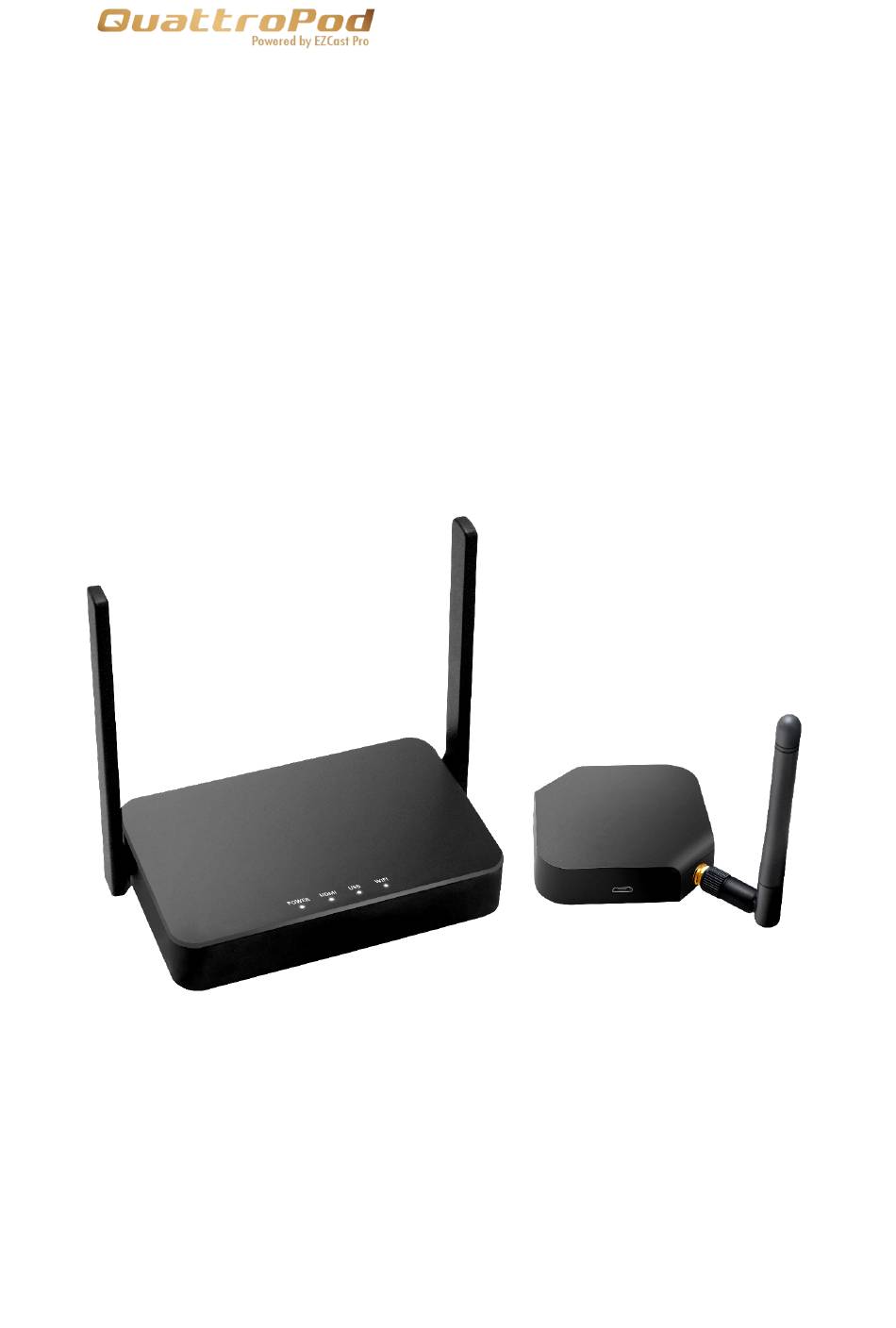

  • Page 1 QuattroPod Lite Advanced Web Setting Manual...

  • Page 2: Table Of Contents

    Contents Introduction ..........................3 Configure your QuattroPod Lite via Web Browser ............3 Set up QuattroPod Lite ......................4 Connect to QuattroPod Lite ....................6 Connect via Direct Connection ..................... 6 Connect via Router ........................ 7 Web Setting Home Page ...................... 8 Start Configuring your QuattroPod Lite ................

  • Page 3: Introduction

    BYOD. Configure your QuattroPod Lite via Web Browser With QuattroPod Lite, users may configure their device via a web browser interface which greatly enhances user experience. Based on different needs and usage scenarios, in QuattroPod Lite Web Setting sections, customers may do custom setting including...

  • Page 4: Set Up Quattropod Lite

    Set up QuattroPod Lite Please follow the steps below to set up the QuattroPod Lite and finish the pairing process for QuattroPod Lite Receiver and QuattroPod Lite Transmitters. Connect QuattroPod Lite Receiver to an external power supply. Connect QuattroPod Lite Receiver to an external display via HDMI port.
  • Page 5 Connect the transmitters to receiver’s USB port. Once the transmitters and receiver are paired, the landing page will show the pairing status as the image below. Connect the laptop, either Windows or MacBook, to the transmitter.

  • Page 6: Connect To Quattropod Lite

    Connect to QuattroPod Lite Please follow the instructions below to connect your phone, tablet, or laptop to QuattroPod Lite. We provide user with the following methods for connection: direct connection, through Wi-Fi. Connect via Direct Connection Please see the upper middle of the landing page for the SSID and Password.

  • Page 7: Connect Via Router

    Connect via Router Please make sure the QuattroPod Lite receiver has connected to the 5GHz Wi-Fi router. For more detail, please see Chapter xxxxx. Once the receiver is connected to the 5GHz router, enter the IP address on the bottom left corner of the landing page to your browser’s URL bar.

  • Page 8: Web Setting Home Page

    Web Setting Home Page Due to compliance reasons, the first time connecting to QuattroPod Lite receiver, user will need to configure the 1. Country 2. Admin password. QuattroPod Lite provides two level of access: Admin and Non- access Admin. Please log in as administrator for higher level of authorization.

  • Page 10: Remember Wi-Fi

    Please see Device Manage for the options to configure Language, Resolution, Max Connections, etc. 2.1. Language: Please select the applicable language. 2.2. Resolution: Please select the applicable resolution for your usage. QuattroPod Lite supports up to 4K with frame rate 24P while the defaults output resolution is...

  • Page 11: Resolution Mode

    2.3.2. For any connected display: QuattroPod Lite will apply the same resolution to every monitor. 2.4. Display Mode:QuattroPod Lite supports the below Display modes: 2.4.1. Fit to screen:QuattroPod Lite would keep video at the original aspect ratio.

  • Page 12: Reboot Timer

    2.4.2. Stretch to Full screen:QuattroPod Lite would not keep video at the original aspect ratio. 2.5. Reboot Timer: QuattroPod Lite would automatically reboot every 8 hours under the following conditions: • None of the Transmitter is connected to Receiver. • None of the device is connected to Receiver, including Windows, Android, macOS, iOS.

  • Page 13: Admin Setting Admin

    Admin Setting allows individuals with higher access authorization to customized QuattroPod Lite’s network and features. 3.1. Wi-Fi Channel: Set up QuattroPod Lite’s Wi-Fi Channel 3.1.1. Country: Please select the applicable country/region for specific 5Ghz spectrum policy 3.1.2. Channel: For better Wi-Fi performance, please select available Wi-Fi channel.

  • Page 14: Ssid

    SSID and re-pairing the Receiver and the Transmitters after naming the SSID.\ 3.2.1. Hide SSID: Hide SSID from the landing page. When we reboot QuattroPod Lite the landing page of the SSID will become a star sign and it prohibits unauthorized access.

  • Page 15: Password

    3.3. Password: Change or hide the Wi-Fi connection password on the landing page. 3.4. Sketch: QuattroPod Lite allows users to sketch with their wireless mouse when the mouse is connected to the QuattroPod Lite receiver. 3.5. Central Management System: When it is on it QuattroPod Lite will be discoverable for the CMS tool, but if it is off it is won’t be discoverable.

  • Page 16: My Screen

    3.7.3. Source: URL/USB Disk: Specify the URL that locates the file. Users can either store the file at web server or USB Disk. I 3.7.4. Starts after idling for: Set idle time before activating dynamic wallpaper. When the QuattroPod Lite receiver...

  • Page 17: Airview

    3.7.5. Stopping time: 3.7.5.1. Stops when any transmitter is connected: When the receiver finds any transmitter is connecting to the QuattroPod Lite, it will stop. 3.7.5.2. Stops when any transmitter starts to mirror: The transmitter can connect into the receiver, but unless it starts mirroring the receiver will continue to play the video or image.

  • Page 18: Admin Password

    3.9. Admin Password: Change the Admin password for better security. 3.10. Screen Saver: Set the idle time for QuattroPod Lite. The QuattroPod Lite will be activated once the connecting devices are being used. 3.11. Upgrade: Upgrade your QuattroPod Lite Receiver and Transmitters’...
  • Page 19 Please see below for the upgrading procedure Connect QuattroPod Lite Receiver to the internet. Connect QuattroPod LiteTransmitter to an external power supply. Please make sure the Transmitters has been paired with the Receiver. Click “Select All” to update all the QuattroPod Lite devices.

  • Page 20: Reboot

    Reset to Factory Default:Reset QuattroPod Lite to factory default. Please note that once reset, all customized configurations will be cleared. Reset RX: Reset QuattroPod Lite Receiver only. Reset TX: Reset QuattroPod Lite Transmitter only. Reset RX + TX: Reset both QuattroPod Lite Receiver and Transmitters.

  • Page 21: About Device

    About Device Detail information of QuattroPod including SSID, Firmware Version, Wi-Fi Channel, etc.
