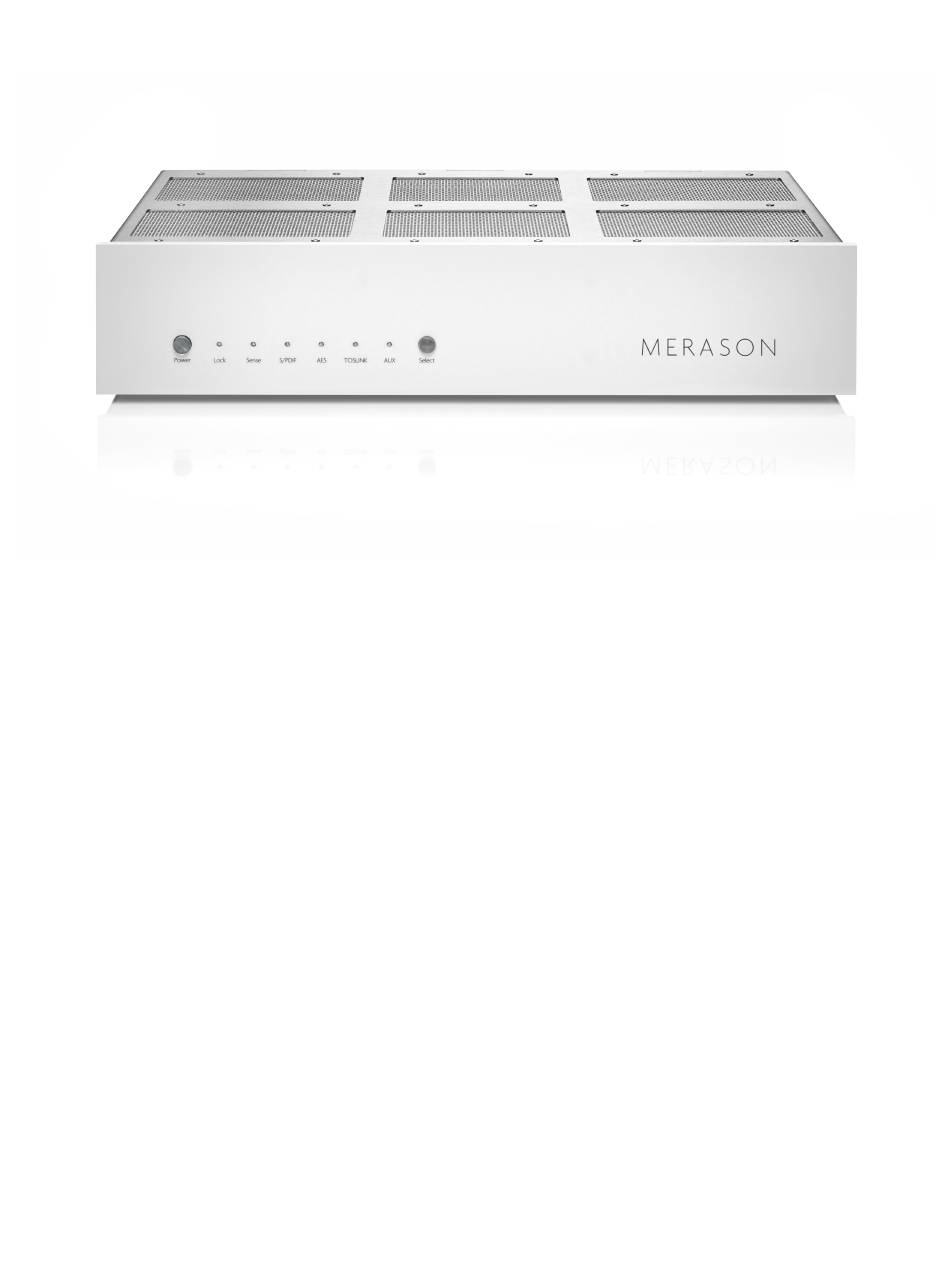

Page 1 MERASON DAC 1 Operating Manual niedal audio lab, Switzerland v en int.
Page 2 Thank you for purchasing the MERASON DAC 1 digital-to-analog converter! The aim of the multi-year development of the device was to meet the highest demands on sound quality in order to make an authentic listening experience possible. We believe, and others confirm, that with the DAC 1 we have achieved this.
Page 3 Notes on safety and installation For your own safety, observe the following points: GEFAHR! CAUTION! NICHT ÖFFNEN! GEFÄHRDUNG DURCH ELEKTRISCHEN SCHLAG DO NOT OPEN! RISK OF ELECTRIC SHOCK This symbol indicates that defective components may only be replaced by components of exactly the same type, and only by qualified personnel, and that the instructions supplied with this device contain important information on operation and maintenance.
Page 4 The specified mains voltage is noted on the back of the device. The unit is switched on and off completely by pressing the switch on the front left (label "Power"). Repairs and maintenance may only be carried out by qualified personnel.
Page 5 Installation The DAC 1 develops a certain amount of waste heat during operation, so care must be taken to ensure adequate ventilation. The following minimum distances must be observed: Distance upwards: 5 cm. Distance to the rear: 10 cm. Lateral distance: 5 cm.
Page 6 Operating and Display Elements On/off switch. Lit when the input signal can be processed correctly. Lit when an existing USB signal is detected. Lights up when coax input is selected. Lights up when balanced input is selected. Lights up when optical input is selected. Lights up when USB input is selected.
Page 7 Specifications Power Supply 230 V or 115 V (one of them) AC / 50 or 60 Hz, 30 W Operation Ambient temperature 10°C to 30°C, 50°F to 86°F Humidity max. 80 %, non-condensing During operation, the device heats up by approx. 20 K compared to the ambient temperature.
