Summary of Contents for Furniture Pipeline Juneau

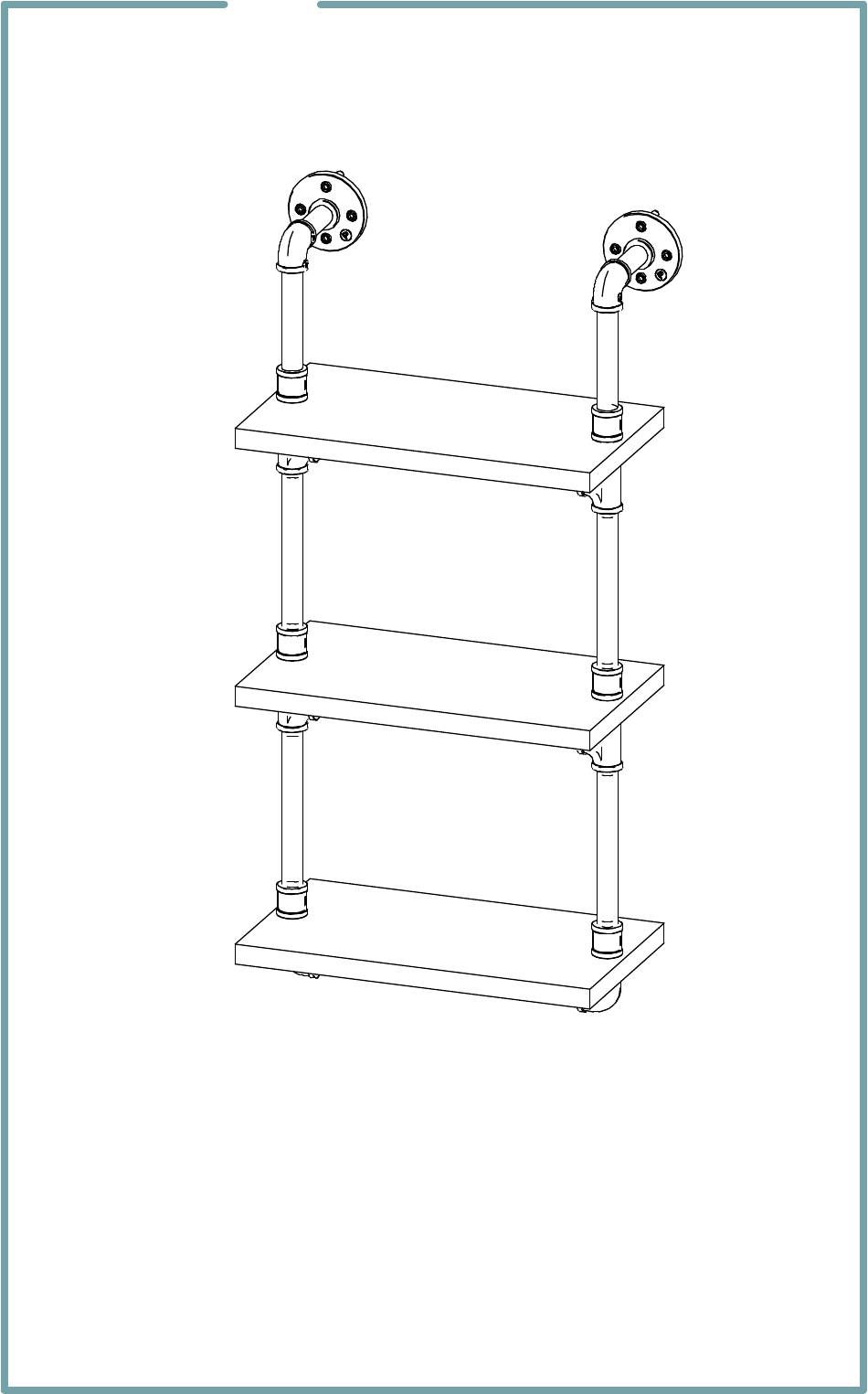

- Page 1 UNIT WEIGHT: 18in (10 lbs) 24in (12lbs) 30in (16 lbs) WEIGHT CAPACITY PER SHELF/TIER: 10 LB...
- Page 2 Fastening System Each New Age furniture design utilizes a simple & effective fastening system to quickly assemble your unit. To reduce assembly time, each fitting (connector) has pre-installed set screws (spare set screws are provided) at EACH pipe entry location. Set screws are tightened using a 1/8” Allen Key, which safely secures the pipe in place.
- Page 3 10.00" 18", 24", or 30" 10.77" 12.00" 12.00" 10.19" 38.81" 0.81" 15.00" VARIES* 13.4", 19.4", 25.4" *Varies depending on model size purchased...
-
Page 4: Important Warnings And Cautions
DISCLAIMER: We intend to make this instruction manual accurate and complete. However, we make no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. - Page 5 [x1] [x3] Bottom Crossmember Shelf Assembly [x1] [x1] Right Top Left Top [x2] Shelf Support Shelf Support Shelf Support Assembly Assembly Assembly [x1] [x1] 1/4" Allen Key 1/8" Allen Key Large Key Small Key [x4] Coupling [x4] [x4] Plastic Wall Ø8mm X 40mm Anchors Screws...
- Page 6 BOTH PIPES MUST BE INSERTED INTO BOTH HOLES AT THE SAME TIME WHILE ASSEMBLING SLIP-ON THREAD USE PART 6 TO TIGHTEN BOTH PIPES MUST BE INSERTED ALL NEW INTO BOTH HOLES AT THE SAME TIME CONNECTIONS WHILE ASSEMBLING [x2] USE PART 6 TO TIGHTEN ALL NEW CONNECTIONS...
- Page 7 FROM STEP 2 USE PART 6 TO TIGHTEN ALL NEW CONNECTIONS [x2] WARNING: FAILURE TO SECURE UNIT TO WALL AS SHOWN MAY RESULT IN SERIOUS INJURY...
- Page 8 1. PLACE THE UNIT IN DESIRED LOCATION AGAINST WALL LINING AT LEAST ONE SIDE UP WITH A STUD. 2. LIGHTLY MARK YOUR WALL USING A PENCIL IN EACH MOUNTING HOLE ON THE FLANGES. 3. REMOVE UNIT FROM WALL AND PREDRILL YOUR MARKED SPOTS USING A "...
-
Page 9: Warranty
WARRANTY Finishes of Pipes and Fittings, and all Other Parts and Components, Excluding Wood -1 Year Limited Warranty- All metal finishes and other parts and components, excluding wood, are warranted by the company to you, the original retail purchaser, for a one-year period starting from the date of purchase, to be free from material manufacturing defects. - Page 10 WARRANTY CONT... FINISHES AND ALL OTHER PARTS AND COMPONENTS EXCLUDING WOOD – 1 YEAR SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, THEREFORE, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. DISCLAIMER NO OTHER EXPRESS WARRANTY HAS BEEN MADE OR WILL BE MADE ON BEHALF OF THE COMPANY, WITH RESPECT TO THE FURNITURE AND ITS PARTS, OR THE OPERATION, REPAIR, OR REPLACEMENT OF THE FURNITURE AND ITS PARTS.
- Page 11 WARRANTY CONT... Claims If a problem should arise which you feel is covered by our Limited Warranty, contact us. The original bill of sale and the product serial number are necessary for the fulfillment of the warranty. Please make sure any claim for warranty service is accompanied by the necessary information to satisfy the warranty requirements.
