  • Page 1 User manual Bed table Saale Patient care Edition 28/21...

  • Page 3: Foreword

    We would like to thank you for your trust extended to us and for purchasing our product. The bed table SAALE distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual.

  • Page 4: Table Of Contents

    Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 10 Product overview ……………………………… 11 ………………………………...

  • Page 5: Safety Instructions

    Safety instructions Safety instructions The bed table SAALE is CE-marked and experience and knowledge of operators, fulfills the requirements of the latest which they gained from (for example) directives. It was developed in line with training courses. most recent findings. Production is subject In the event of specific or difficult to an on-going quality control.
  • Page 6 SAALE stored carefully for further use. overturning. • The operating manual is intended for •...
  • Page 7 • Clean the bed table SAALE in accordance with the instructions given in the chapter „cleaning”. • Please ensure before use the product is cleaned according to the cleaning instructions and if indicated also disinfected.
  • Page 8 Safety instructions We constantly develop new aids and improve existing products. We are happy to receive your suggestions of every description. Page 8/24 (28/21)

  • Page 9: Warranty And Product Liability

    ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if...

  • Page 10: Indications And Prophylaxis

    Purpose of use The device must be prescribed by a medical specialist, who has tested beforehand and determined if the SAALE is suitable for the individual therapeutic goal of the patient. Furthermore, the medical specialist has determined the aid to be suitable according to measurements, weight and willingness of the patient to use the aid.

  • Page 11: Product Overview

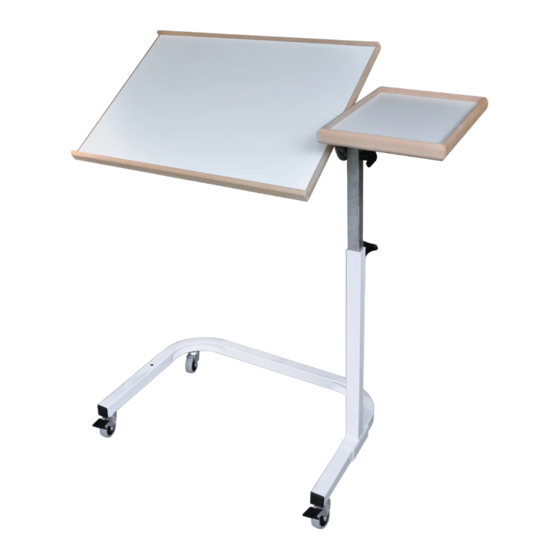

    Product overview Product overview 8.1 Basic model 1. Base frame 2. Castors with locking brakes 3. Stand pipe 4. Holder for the table top 5. Star grip for height adjustment 6. Star grip for tilt adjustment 7. Table top (infinitely adjustable) with edge protection 8.

  • Page 12: Accessories /Options

    Product overview Initial operation 8.2 Accessories /Options For a complete overview of our extensive range of accessories for the SAALE see item 11.2 Types and accessories on page 15. Initial operation The reseller is to unpack the unit, ensure ed, the reseller must ensure the user and/or...

  • Page 13: Assembly And Adjustment

    Assembly and adjustment 10 Assembly and adjustment 10.1 Basic model Preparing for self-assembly: • Unpack the product and remove the packing materials. • Ensure that all supplied components are present and undamaged. • Have the required tools, components and mounting elements ready to hand before beginning the assembly.

  • Page 14: Accessories /Options

    Attention Make sure that the star grip is well For a complete overview of our extensive tightened again after adjusting the range of accessories for the SAALE see item 11.2 Types and accessories on page 15. height. Page 14/24 (28/21)

  • Page 15: Types And Accessories

    As of today, there are no accessories availa- ble for the SAALE bed table. The most up-to-date overview of our extensive range of accessories for SAALE and their description as well as much more useful information can be found on our homepage www.ato- form.com.

  • Page 16: Technical Details

    Technical details 12 Technical details Bed table SAALE Height of the table top (adjustable) 68 up to 100 cm Width x depth table surface 54 x 40 cm Width x depth side plate 32 x 22 cm Tilt ancle table surface (infinitely adjustable)

  • Page 17: Cleaning And Disinfection

    Cleaning and Disinfection 13 Cleaning and disinfection Leftovers, dirt and dust are always to be Disinfection: removed. Moving parts work easier, if you For disinfecting, use household disinfectants apply one drop of oil after cleaning. and consider the following indications: Cleaning the metal parts: The assistant must wear suitable protective The painted and chromed parts of the bed...

  • Page 18: Maintenance And Overhaul

    Full brake function Please contact your specialist dealer to carry • No signs of damage or wear out corrective maintenance works for your SAALE. Frame The device should be checked by the • Metal parts; no signs of damage or wear, manufacturer at the latest after 3 years.
  • Page 19 Maintenance and overhaul Date Service performed Name Sign Page 19/24 (28/21)

  • Page 20: Operating Life And Re-Use

    Fautls, Repairs, Spare parts 15 Operating life and Re-use The SAALE is made from high quality The product SAALE was designed so it could materials and is subject to a continuous be reused after the application of various quality control in our house. Because of this measures.
  • Page 21 Also in our programme of the SAALE series Free standing bed lifting pole Saale You can find more information at https://www.ato-form.com/en/pd/bed-table-saale/ Page 21/24 (28/21)

  • Page 22: Storage

    Storage 17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form.
  • Page 23 In environmental protection matters: All packaging parts are re-useable. The cardboard packaging is to be recycled as waste paper. We therefore use paper as filler material. Possible used plastic film of the packaging are made out of PE and are therefore low in pollutant and can either be recycled or burnt.
