Summary of Contents for BMZ ESS 7.0

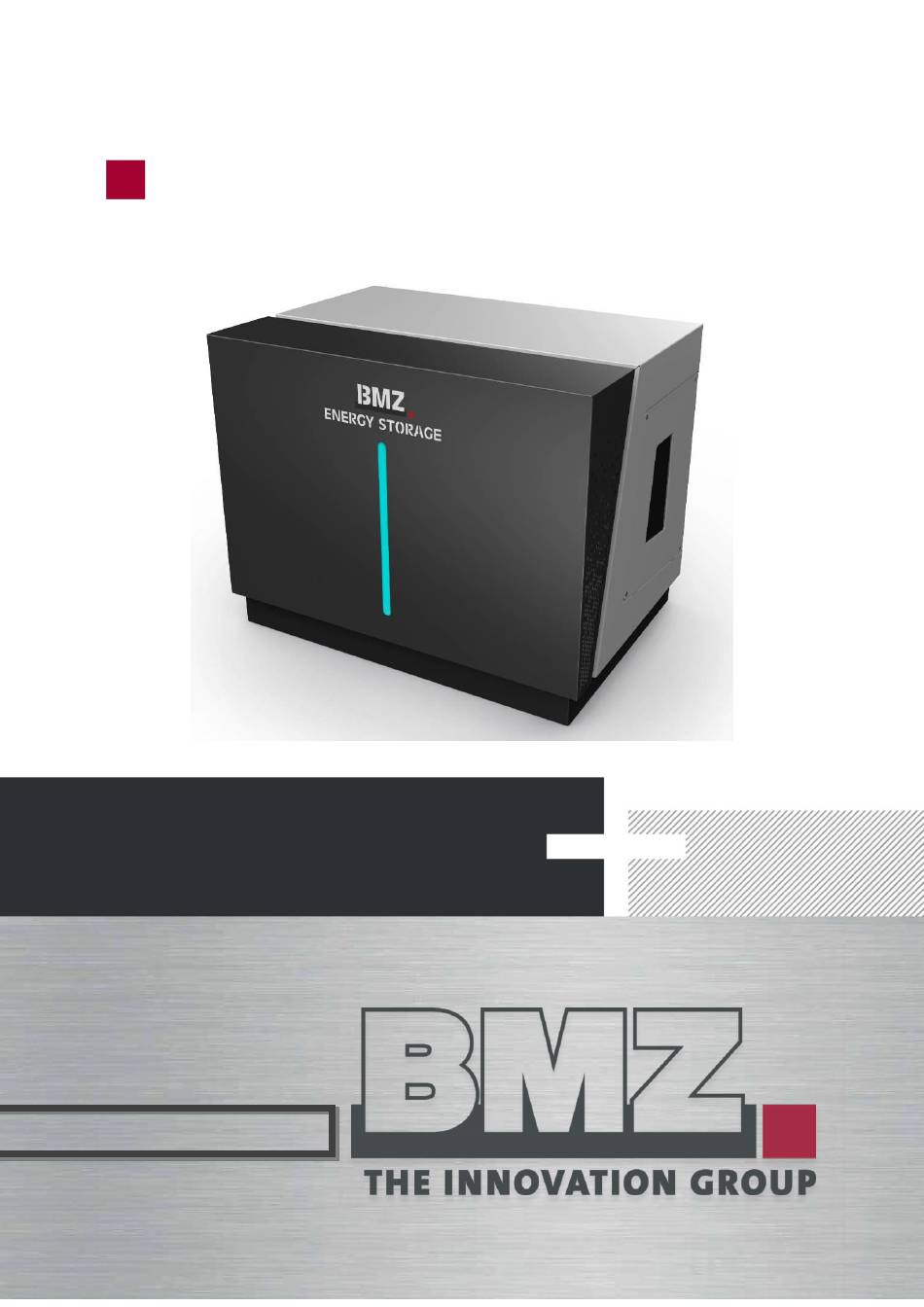

- Page 1 INSTALLATION INSTRUCTIONS ESS 7.0 Revised 12-1-2015 EUROPE´S LEADING BATTERY SYSTEM SUPPLIER NOW SERVING NORTH AMERICA...
- Page 2 Thank You! Explosion can cause serious injury. Thank you for purchasing the This product is applicable to EC Energy Storage System ESS 7.0 directives (Europe Only). The product must not be disposed of with household waste, Before using the device,...
-
Page 3: Initial Installation
Installation Instructions ESS 7.0 Initial Installation Connecting the Energy Storage Unit 1. STEP ONE: 3. STEP THREE: Connect the two cables of the ESS Place the termination connector to the 7.0. Connect according to the Inverter socket labeled "Internal" patch (Intern). -
Page 4: Technical Data
Installation Instructions ESS 7.0 5. STEP FIVE: Technical Data Energy Storage BMZ ESS 3.0 Nominalspannung 55.5 V Capacity 121.5 Ah Nominal Energy 6.8 kWh Content Usable Energy 5.44 kWh Content Turn On Max. Discharge 300A (3sec.) Current Press push button for 1 second, Protection then release. -
Page 5: Maintenance
(Only for Europe) § Choose the location that it is not accessible by children or unauthorized BMZ GmbH • Am Sportplatz 28-30 • 63791 users. Karlstein am Main • Tel: +1149(0)6188 9956-0 § Place the energy storage unit in a dry place with a temperature between 32°F...
