Analog Technologies ATTECA200WC Quick Start Manual

Analog Technologies

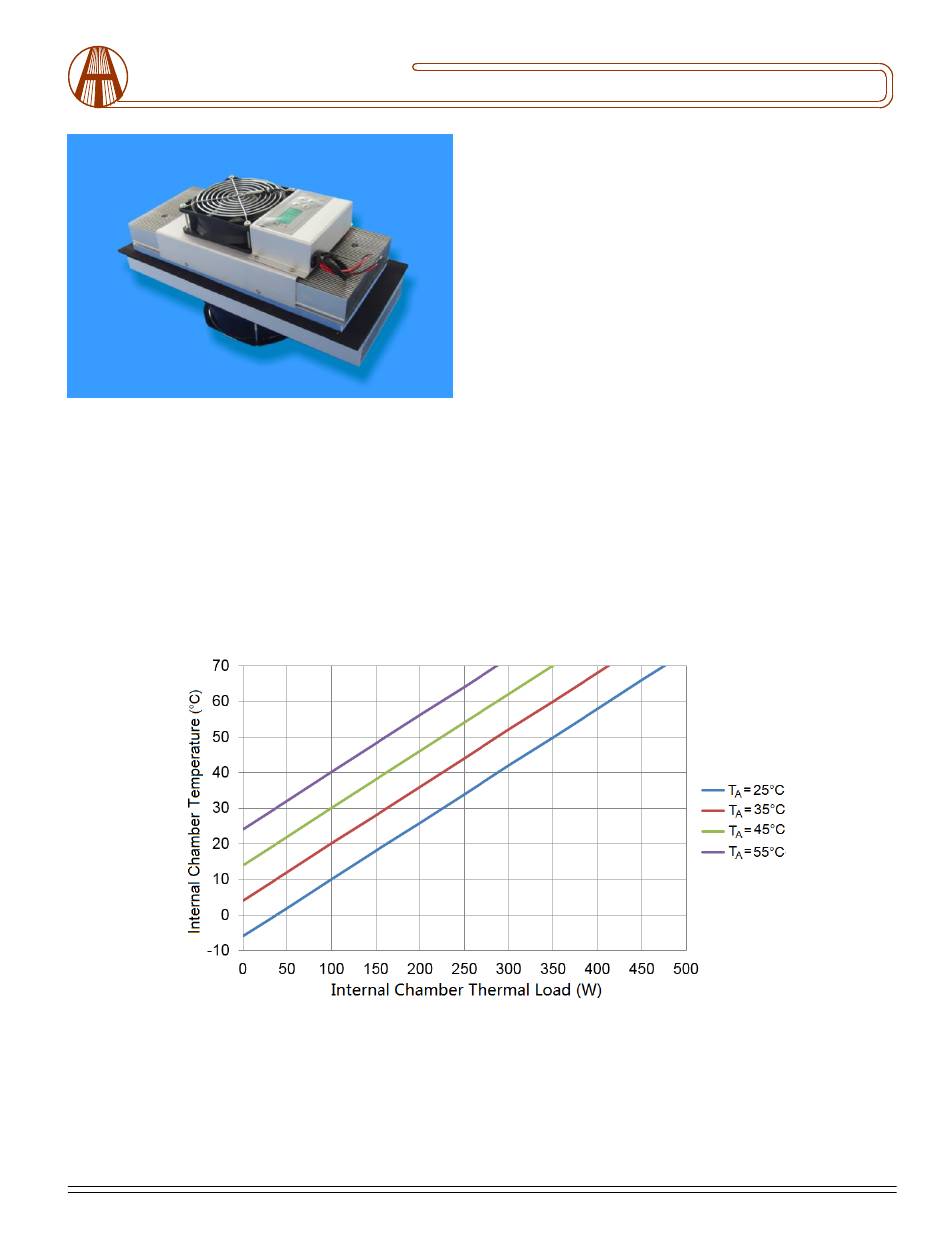

Figure 1. Physical Photo of ATTECA200WC

FEATURES

Generate Temperature Difference up to 40° C
Solid State Cooling
Compact Size and Light Weight
No Freon
100 % Lead (Pb)-free and RoHS Compliant

PERFORMANCE CURVE

When the internal chamber temperature & ambient
temperature are both 50° C, air cooler can remove 195W
heat.
Hot Side: Fan cooling;
Cold Side: Fan cooling;
Qcmax (W): 195W at ΔT=0° C ± 10%;
1161 Ringwood Ct, #110, San Jose, CA 95131, U. S. A. Tel.: (408) 748-9100, Fax: (408) 770-9187
Copyrights 2000-2021, Analog Technologies, Inc. All Rights Reserved. Updated on 3/18/2021
Service Life: 30,000~50,000 hours
IP56 waterproof

SPECIFICATIONS

Input Voltage: 24VDC
Max. Input Current: 13.2A
Thermal Cooling Power: 195W
Operating Temp: −10° C ~ +70° C
Net Weight: 15.7lbs (7.1kg)

SAFETY PRECAUTIONS

1. Use a 24VDC switch mode power, with the ripple factor
< 10%, I
2. Avoid free falling from any height;
3. Do not power on the cooler if the ambient temperature
and the heat sink is over 70° C, otherwise, it will be
damaged.
Figure 2. Performance Curve
Rated Voltage: 24VDC;
TEC Current: 11.5A (initial current is 13A);
Hot-side Fan Current: 0.55A;
Cold-side Fan Current: 0.25A;
Max. Operating Ambient Temperature: 70° C.
TEC Air Conditioner
ATTECA200WC
≥ 15A;
MAX
T : Ambient Temperature
A
www.analogtechnologies.com
Email: staff@analogti.com/sales@analogti.com 1
