gofanco Matrix42-HD20 User Manual

4x2 hdmi 2.0 matrix
Hide thumbs

Advertisement

Quick Links

Download this manual
4x2 HDMI 2.0 Matrix
User's Guide
P/N:Matrix42-HD20
G4-0110A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrix42-HD20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for gofanco Matrix42-HD20

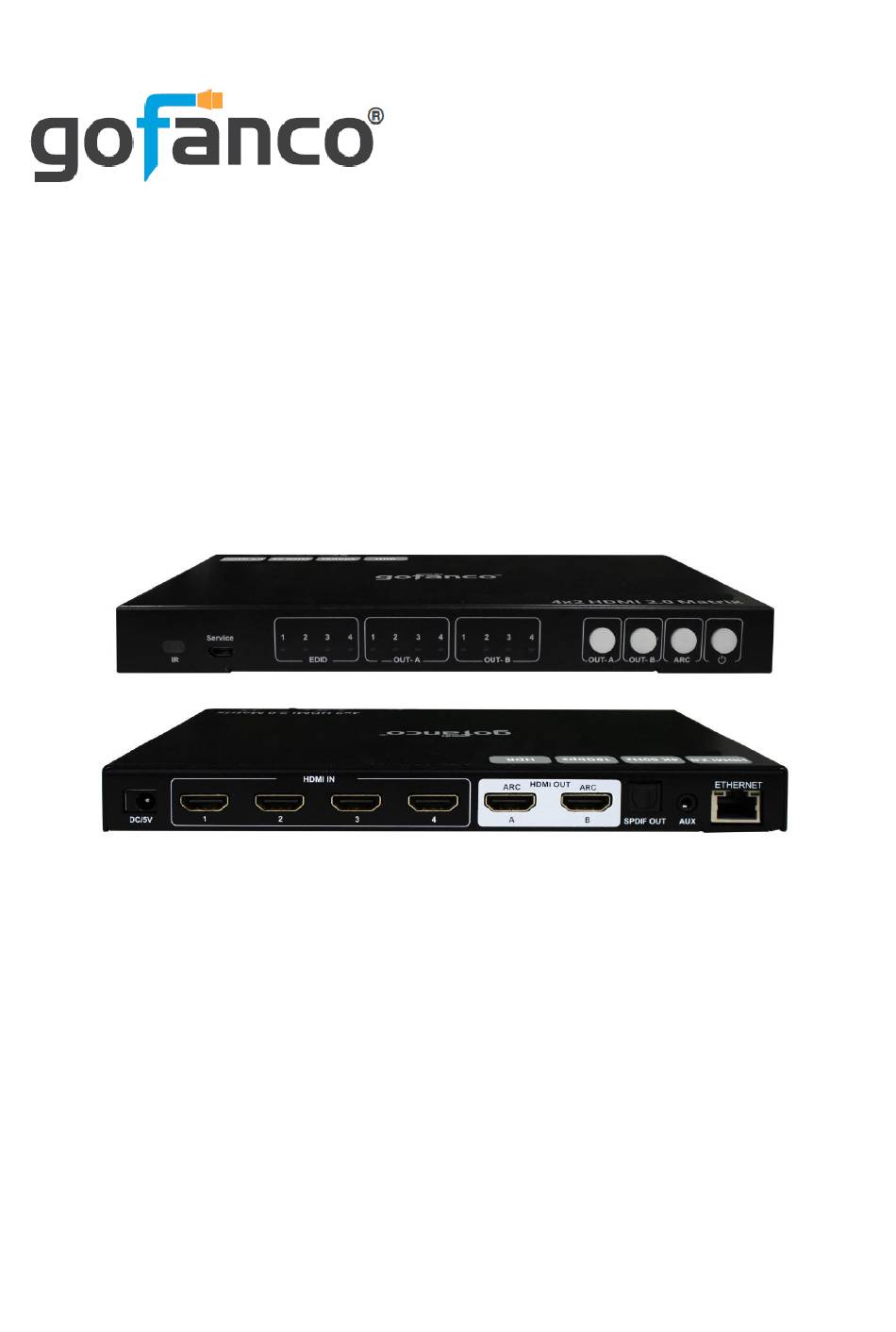

  • Page 1 4x2 HDMI 2.0 Matrix User's Guide P/N:Matrix42-HD20 G4-0110A...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 4x2 HDMI 2.0 Matrix allows you to select and switch between any of the 4 HDMI source devices to display on any of the 2 HDMI outputs. Features • Connect up to four HDMI source devices and independently switch any source to any of the two HDMI displays •...
  • Page 4 Package Contents • 4x2 HDMI 2.0 Matrix • IR remote control • USB Type-A to Micro B cable • Power adapter (5VDC) • User's guide Product Layout Figure 1: Front Panel Layout IR In: Receives IR signals from the included remote control Micro USB: Command control and firmware update port...
  • Page 5 HDMI Out B Select: Quick press to select HDMI source. Press and hold for 3 seconds to enter EDID mode. Quick press to modify EDID when in EDID mode ARC: ARC is disabled by default. Press the button to enable/disable ARC Power Button: Powers on/off the Matrix.
  • Page 6 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source devices to the Matrix's HDMI In connectors with HDMI cables (HDMI cables not included). Connect your HDMI displays to the Matrix's HDMI Out connectors with HDMI cables (HDMI cables not included).

  • Page 7: Application Diagram

    Application Diagram The application diagram shows the most typical input and output devices used with the 4x2 HDMI 2.0 Matrix. Figure 3: Application Diagram ARC Application Figure 4: ARC Application Diagram Notes: • ARC: ARC equipped display/sink required • CEC: Supports TV Power on/Standby modes...
  • Page 8 Matrix Device Control Remote Control Users can control the 4x2 HDMI 2.0 Matrix using the included IR remote. Point the remote control towards the Matrix's IR In window located on the front panel. Power On/Standby: Press to turn on or place the Matrix into standby mode ARC: Turn ARC On/Off Audio Extraction: Press to switch audio extraction...
  • Page 9 EDID Management Allows you to read and configure the EDID for each input. Supports Built-in, Mixed EDID (default), and EDID copy modes. EDID Table...
  • Page 10 EDID Indicator LED OFF represents 0 and LED ON represents 1. EDID Configuration Mode Setup The Matrix's default EDID is Mixed EDID (0,0,0,0). Do Not make any changes if the default EDID works properly. Press the HDMI Out A button for 3 seconds to enter EDID configuration mode.
  • Page 11 RS-232 Command Control Connect the 4x2 HDMI 2.0 Matrix to the PC using the included USB Type-A to Micro B cable. Download SXSCOM software at www.gofanco.com/ downloads, and install it onto your computer. Double click the SXCOM icon to open the program.
  • Page 12 Command List • All commands start with, "#", "%c" (command head), "d" (parameters), "I" (lock), "s" (save) • The underline "_" can not be omitted. • A space is required between Command, Parameter 1, Parameter 2, and Attribute Parameter. • The "/"...

  • Page 13: Web Control

    Web Control Default IP Address The default IP address of the Matrix is 192.168.1.168. Change the IP address of our PC Connect the Matrix and your PC to the LAN. Configure your PC as follows: 1. Click Start / Control Panel / Network and Sharing Center.
  • Page 14 Click Properties. Select Use the following IP Address, and then enter the IP address. Note: You can use any IP address in the range: 192.168.1.2 to 192.168.1.254 (excluding 192.168.1.168). Click OK to save the changes. Click Close to exit.
  • Page 15 Web Browser Control Open your web browser and enter the Matrix IP address 192.168.1.168 into the address bar, and press Enter. Log In Type in user name and password, both "admin", at the login screen. Video Control Used to switch inputs, change port name, etc.
  • Page 16 Audio Control Set ARC operation and audio extraction. EDID Control Set the EDID for the HDMI Inputs.
  • Page 17 Network Control Enter the network setting, and enable DHCP. System Setting Change user name, password, factory reset, reboot.
  • Page 18 Blank Page...
  • Page 19 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 20 Thank you for choosing gofanco www.gofanco.com...
