1.
INTRODUCTION............................................................................................... 3
1.1 General Safety Precautions ...................................................................... 4
1.2 Safety Statement....................................................................................... 4
1.3 Revision Changes....................................................................................... 4
2.
WARRANTY STATEMENT................................................................................. 4
3.
WARNINGS ....................................................................................................... 4
4.
COMMON APPLICATIONS OF THE PBC 6000............................................. 5
4.1 System Illustration.................................................................................... 6
4.2 System Characteristics.............................................................................. 7
4.3 Accessories and Options........................................................................... 9
5.
INSTALLATION................................................................................................. 10
5.1 Recommended Work Area Layout............................................................ 10
5.2 Site and System Preparation.................................................................... 10
5.3 Unpacking Procedure................................................................................ 11
6.
ON LINE PREPARATION ................................................................................. 13
6.1 Safety Guidelines....................................................................................... 13
6.2 Electrical System....................................................................................... 13
6.3 Pneumatic System..................................................................................... 14
6.4 Leveling and Centering.............................................................................. 14
6.5 Speed Checks and Synchronization.......................................................... 16
6.6 Folder ........................................................................................................ 17
6.7 Compression Belts and Rollers.................................................................. 17
6.8 Setting the Temperature........................................................................... 18
6.8.1 Determining the Correct Temperature........................................ 18
6.8.2 Using the Temperature Controller............................................... 19
7.
OPERATING THE PBC 6000........................................................................... 20
7.1 Process Description.................................................................................. 20
7.3 Shutdown Procedure................................................................................. 23
®

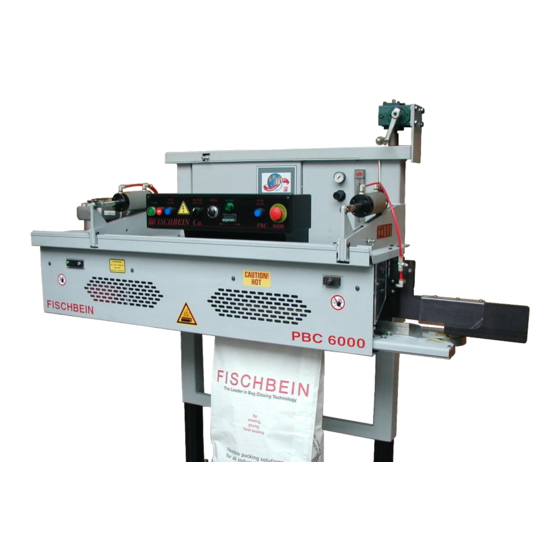

FISCHBEIN
Co. MODEL PBC-6000™
OPERATOR'S MANUAL

TABLE OF CONTENTS

REV. D 2005-03
Page
............................ 22
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBC-6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FISCHBEIN PBC-6000

  • Page 1: Table Of Contents

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL TABLE OF CONTENTS Page INTRODUCTION………………………………………………………………………………….. 3 1.1 General Safety Precautions ……………………………………………………………. 4 1.2 Safety Statement…………………………………………………………………………… 4 1.3 Revision Changes…………………………………………………………………………… 4 WARRANTY STATEMENT……………………………………………………………………… 4 WARNINGS …………………………………………………………………………………………. 4 COMMON APPLICATIONS OF THE PBC 6000……………………………………… 5 4.1 System Illustration…………………………………………………………………………...
  • Page 2 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL MAINTENANCE AND ADJUSTMENTS…………………………………………………… 24 8.1 Scheduled Maintenance………………………………………………………………… 24 8.1.1 Daily Maintenance……………………………………………………………… 24 8.1.2 Monthly Maintenance………………………………………………………… 24 8.2 System Frame………………………………………………………………………………. 26 8.3 Pneumatics…………………………………………………………………………………… 26 8.4 Sensors………………………………………………………………………………………… 27 8.4.1 Thermocouple…………………………………………………………………… 27 8.4.2 Proximity Sensors……………………………………………………………… 27 8.4.3 Airflow Sensor……………………………………………………………………...
  • Page 3: Introduction

    This Operator’s Manual is intended to help our customers set up, operate and maintain their new Fischbein Pinch Bag Closer System (PBC). For information not covered in this manual, you can contact Fischbein through the worldwide web at www.fischbein.com or by writing or calling our...
  • Page 4: General Safety Precautions

    WARNINGS • Always use genuine Fischbein parts. Our parts are specifically designed for Fischbein equipment to provide optimum performance and safety. Use of non-Fischbein parts can also void the product warranty. • Employees shall receive training by the employer on proper equipment operation and shutdown of this machine.
  • Page 5: Common Applications Of The Pbc 6000

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL • When used in a dusty environment, NEMA12 (IP54) electrical equipment must be used. • Frequently clean the machine to prevent accumulation of dust, bag and glue materials. Doing this prevents the accumulation of material that may cause malfunctions or poor bag seals.
  • Page 6: System Illustration

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SYSTEM ILLUSTRATION Casters (2) standard 11. Pin, Swing Arm-Holding (for shipping only) Frame (pedestal and overarm) 12. Infeed (Automated Style Shown) Swing Arm Assembly 13. Locking Casters (2) Motor, Drive – Gear 14 Electrical Connection Cylinder, Pneumatic –...
  • Page 7: System Characteristics

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SYSTEM CHARACTERISTICS PHYSICAL CHARACTERISTICS Total palletized system weight: 770 lbs. (350 kg) Total system weight: 710 lbs. (323 kg) (standard machine) System Dimensions: REV. D 2005-03...
  • Page 8 (Range 3): Less than 30 feet per minute (9,1 meters per minute) NOTE: Speeds above 85 FPM (25,9 MPM) are obtainable upon request, but are dependent upon bag types; please consult the Fischbein representative to determine the machine capabilities, given the closing requirements.
  • Page 9: Accessories And Options

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL ACCESSORIES AND OPTIONS The PBC 6000 is available by request with some special options: Larger Folder: Kits are available to convert Left-to-Right and Right-to-Left PBC machines with 1 ¾” folders to 2 3/8” folders and to convert 2 3/8”...
  • Page 10: Installation

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL INSTALLATION RECOMMENDED WORK AREA LAYOUT Illustration 5.1 (Top View) SITE AND SYSTEM PREPARATION ELECTRICAL POWER HOOKUP The system is wired at the factory for the voltage specified when ordered. Customers are required to supply incoming electrical connections. SO 12/4 (12 AWG/4 wire) (4 mm ) is recommended.
  • Page 11: Unpacking Procedure

    Illustration 5.2 (Pneumatics Diagram and Schematic) UNPACKING PROCEDURE Every Fischbein system is packaged to protect the unit during normal shipping, storage and handling. Before the unit is unpacked, inspect the box and skid for any signs of shipping damage. ®...
  • Page 12 Once the machine is completely unpacked, inspect it for physical damage or missing components. Report anything missing or any damages in writing to the shipper and your Fischbein representative. Zerust is the registered trademark of Northern Technologies International Corporation...
  • Page 13: On Line Preparation

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL ON LINE PREPARATION SAFETY GUIDELINES Operators of the PBC 6000 system must be fully trained on the performance, operation, adjustments and safety standards of this machine before attempting to operate it. Long hair must be pulled back and tied to avoid getting caught in any moving parts of the system.
  • Page 14: Pneumatic System

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL PNEUMATIC SYSTEM Connect the air source with a female quick release air coupling (Foster Series 3, #3003 or equivalent) to the safety shut-off valve located on the pneumatic control panel (Illustration 6.2). Air hose connections must have a minimum 1/2 in. (13 mm) ID. The PBC 6000 requires compressed, clean, non-lubricated air.
  • Page 15 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 6.3 CENTERING There are two conditions to satisfy the centering required for a good seal. Where the two carry through belts come together to grasp the bag top, must be centered above the middle of the conveyor (i.e.
  • Page 16: Speed Checks And Synchronization

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Free top is the term used to describe the distance between the Illustration 6.5 top edge of the unfolded bag and the top surface of the product in the bag. (Illustration 6.5) For best results, the PBC 6000 requires a free top of 6 inches (153 mm) for standard size folds and greater than 6 inches for wider folds.
  • Page 17: Folder

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL These belts must be set to run at the same linear rate as the conveyor system. If the timing between the two systems does not match, the bag will be tilted forward or backward and will not completely seal the bag.
  • Page 18: Setting The Temperature

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SETTING THE TEMPERATURE The temperature of the heaters is controlled and regulated by the temperature controller located on the control panel. (Illustration 6.9) The temperature should be set based on the following criteria: Type of adhesive used on the bag.
  • Page 19: Using The Temperature Controller

    (Illustration 8.3, page 26) At the factory the machine is set to the specifications defined at the time the order was taken. If sample bags were sent to Fischbein prior to shipment, the machine will be adjusted to the materials sent.
  • Page 20: Operating The Pbc 6000

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL increment changes to the set point until the desired closure is achieved. Be sure to allow five to ten minutes for the heaters to reach their optimum level before sealing bags in the PBC 6000.
  • Page 21 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 7.1 After leaving the creaser, the bag is partially folded so that the top flap (with the pre-applied glue) is bent 90 or parallel with the floor. (Illustration 7.2) The top surface of the hot air manifold has a series of holes for the hot air to exit the manifold and melt the glue on the flap of the bag.
  • Page 22: Operating The Pbc 6000 (Start Up Procedure)

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL OPERATING THE PBC 6000 (START UP PROCEDURE) PINCH BAG CLOSER START - UP Be sure that all guards are in place. Do not operate without guards. Check for any loose or missing fasteners or parts on the PBC. Never operate the machine without all the parts attached and secured.
  • Page 23: Shutdown Procedure

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Push either the “STOP” or “EMERGENCY STOP” button at any time to open the front channel. Pushing the “STOP” button will open the front channel and keep the heaters on. The “EMERGENCY STOP” button will open the front (swing) channel, turn the electrical system and heaters “OFF”...
  • Page 24: Maintenance And Adjustments

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Turn the pneumatic safety control valve to the OFF position and disconnect the air supply by releasing the quick disconnect. This allows stored energy to be released from the unit. Remove all paper scraps, debris and glue from the machine.
  • Page 25 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Check the air pressure to the PBC 6000. Minimum pressure should be 90 PSI (6,2 bar) with the capacity to provide 400 SCFH (11,3 SCMH) and the airflow gage should be set to at least 400 SCFH (11,3 SCMH).
  • Page 26: System Frame

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SYSTEM FRAME CASTERS Occasionally check and lubricate the casters to ensure that they are firmly attached to the frame. Two of the casters are capable of be locked for stabilizing the machine while in operation. Check the locks to ensure that they are functioning properly.
  • Page 27: Sensors

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SEDIMENT BOWLS AND AIR FILTERS Check the pneumatic system for air leaks at the connections and control panel. Inspect the sediment bowls and air filters for debris and oil. If oil is found in the filters, replace the filters and correct the air supply problem immediately.
  • Page 28: Belts, Rollers And Wheels

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL BELTS, ROLLERS AND WHEELS 8.5.1 CARRY THROUGH BELTS The carry through belts are responsible for grasping the bag top at the infeed and guiding it through the system to be heated, folded and sealed closed. If the belts are not synchronized or are worn, they will not effectively control the bag top.
  • Page 29 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Check the pressure between the carry through belts. Decide which plate needs to be moved or if both need to be adjusted. They should be evenly spaced on either side of the midline from between the creaser assembly and compression rollers.
  • Page 30: Compression Belts

    Loose or worn belts may allow the bag top to be skewed as they pass between them. If the belts need to be replaced, be sure to use genuine Fischbein Parts. To replace the belts, follow these instructions: Turn “OFF”...
  • Page 31 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL DETERMINING THE CORRECT SETTING AND PRESSURE BETWEEN COMPRESSION BELTS The amount of pressure required to make a strong complete closure, varies depending upon the characteristics of the bag. The type of adhesive on the flap and the thickness of the bag may require more or less pressure.
  • Page 32 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL ADJUSTING THE PRESSURE BETWEEN THE COMPRESSION BELTS The pressure between the belts is set based on the thickness of the bags being sealed. Generally, the thick bags only require that the belts come gently into contact. The thinner bags need to have a greater pressure between the belts.
  • Page 33 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.8 Secure the compression assembly in place by tightening the ½ inch socket cap screw (shaft). Double check the alignment of the compression belt after the screw is tightened. (Illustration 8.8) Push in on the belt between the takeup roller and the drive sprocket.
  • Page 34 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.10 (Top View) FRONT COMPRESSION ROLLER Once the rear compression roller and belt have been positioned correctly, the front roller can be adjusted to alter the pressure between the belts. The front roller is adjusted in a similar fashion to the rear.
  • Page 35 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.11 Push in on the belt between the takeup roller and the drive sprocket. If the tension in the belt is correct, the belt should deflect about ½ to ¾ inch (13 – 19mm). (Illustration 8.10) Install the swing channel shrouding, if it was removed.
  • Page 36 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL You may wish to test a few bags with the heaters “OFF”. Then test the compression roller settings with the heater “ON”. Be sure to allow the manifold to heat up completely before testing begins.
  • Page 37: Compression Rollers

    (Illustration 8.14) After extended use of the PBC, the rollers and bearing will need to be replaced. Fischbein offers the rollers with the bearings mounted in the roller. replace the rollers, follow these steps: Turn “OFF”...
  • Page 38: Takeup Rollers

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Remove the two ½ inch socket cap screws from their respective blocks. The screw and rollers should come loose from the bottom of the channels. (Illustrations 8.8 and 8.11) If the bushing is still on the ½ inch screw, pull it off as well as the roller. Take careful note to the orientation of the bearings in the rollers and how they are placed on the shafts.
  • Page 39: Pulleys, Drive Sprocket And Tension

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL 8. Remove and replace the takeup rollers. Take careful note as to the orientation of the rollers to the shafts. 9. Place the bushings back on the screws. 10. Screw the screws back into the blocks enough to keep them vertical and yet allowing the blocks to be moved.
  • Page 40 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.16 Loosen, but do not remove, the four top holding bolts and four bottom holding bolts for the fixed and swing channel infeeds. Turn the tension bolt to reduce the tension in the carry through belts.
  • Page 41 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL 14. Turn the tension bolt until the desired tension is in the carry though belts. A belt with the proper tension will deflect between ½ to ¾ inch (13 to 19 mm), when pulled from the middle of the belt with a reasonable force.
  • Page 42: Creaser Wheel

    The sprocket should not need to be replaced unless it becomes damaged. Replacing the sprocket should only be done by a trained technician. If the sprocket needs to be replaced, please contact your Fischbein representative. 8.5.6 CREASER WHEEL The creaser wheel of the PBC 6000 is responsible for forming a crease in the bag top to form the fold.
  • Page 43 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL The creaser assembly must create the crease at the correct height in relation to the folder and glue line. There is a specific sequence for adjusting the setting for the creaser. (A). The creaser roller wheel (die) is aligned with the carry through belts.
  • Page 44 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Hold the assembly in position and tighten the bolts, (J) to hold the block in place. Turn the hub and make sure the hub surface aligns with the centerline completely. Also make sure that the wheel is directly behind the blade assembly. A line from the blade shaft to the die shaft must be perpendicular to the channel front face.
  • Page 45 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL 12. Carefully hold the assembly in place while beginning to tighten screws. 13. Rotate the hub and check the blade to ensure all sides are centered across from the die groove. The blade must be level consistently function.
  • Page 46 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.23 (E). Creaser Blade Pressure As a bag enters the creaser assembly, the creaser blade assembly is free to move, to allow for varying thicknesses in each bag’s profile. Near the leading and trailing edges of the bags, the gussets double the thickness of the bag and yet still need to be effectively creased, folded and sealed.
  • Page 47: Bag Guide (Manual Infeed)

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL After the heights and horizontal adjustments have been completed, the creaser section of the machine should be tested on empty test bags. If the settings are correct, the bag will enter the creaser region without jamming and the crease line formed by the blade should be fairly straight.
  • Page 48 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL motor turning the belts. The swing channel must be engaged to properly set the bag guide components. Horizontal: The metal plate of the bag guide should be centered above the centerline where the two carry through belts come together.
  • Page 49: Folder And Guides

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Make further adjustments to the guide as needed when the electrical system is “OFF”. Refer to the Quality Control section of this manual to determine proper bag closures. FOLDER AND GUIDES The PBC 6000 is equipped with a folder plate and bottom folder guide on the fixed channel and a hot air manifold guide on the swing channel.
  • Page 50 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Illustration 8.27 SWING CHANNEL MANIFOLD HEATER GUIDE Once the rear (fixed channel) folder and bottom folder guide have been set into position, the remaining “fine tuning” can be performed on the swing channel’s manifold heater guide. The hot air manifold can also be adjusted horizontally.
  • Page 51: Hot Air (Heater) Manifold

    It is designed for horizontal adjustments only. 12. Install the fixed and swing channel shrouds. 13. Turn the Motor Enabled (keyed) Switch to the “AUTO” position. For further assistance, please call your Fischbein representative or our Technical Services Department. (page 3) TESTING 14.
  • Page 52 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL After normal usage, the heater cartridges within the manifold will have to be replaced. Whenever the machine is being turned “OFF”, be sure to always let the pneumatics continue to run until the cartridges have reached room temperature.
  • Page 53 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL to take some measurements or make some marks on the carry through plate before removing the manifold. Open the rear main electrical control panel and locate the lead wires from the heating cartridges. Follow the electrical prints (in the pocket of the electrical enclosure door) to disconnect the heater cartridge wires.
  • Page 54: Temperature Controller

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL TESTING and the AUTOTUNE FUNCTION 16. Turn the pneumatic and electrical systems “ON”. Close the swing arm and check the cartridge lead wires to make sure they are not interfering with any components.
  • Page 55: Drive Motor And Gears

    It is imperative that the gears remain across from each other and that the shafts are parallel to each other, when the swing channel is closed. After normal usage the bearings for the drive shafts may need to be replaced. If the drive assembly needs replacement, please contact your Fischbein representative. REV. D 2005-03...
  • Page 56: Quality Control Guide

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL QUALITY CONTROL GUIDE The purpose of this section is to provide guidance for quality control departments in determining their own specifications for bag closures. It also outlines the conditions and adjustments needed to achieve the desired closure from the PBC 6000 system.
  • Page 57: Typical Bag Closures

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL 9.2 TYPICAL BAG CLOSURES PROPER CLOSURES A properly closed PBC bag prevents the sifting or leakage of products from its sealed ends. There are specific characteristics of properly closed bags. Properly closed bags have a strong complete seal along the entire length of the bag.
  • Page 58 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL This picture indicates that the bag has been sealed for the most part, but there are an excess amount of large wrinkles in the flap. They are compressed to the surface, but still may allow leakage of the product.
  • Page 59 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL gentle cleaning solution may be needed to remove the tacky film that remains. Check with your bag provider for a cleaning product recommendation. This diagram indicates excessive cresting at the leading and trailing edges of the bag flap.
  • Page 60: Troubleshooting

    This section of the manual has been provided to help address problems or situations that may possibly arise while operating the PBC 6000. For questions not answered in this manual please contact your local Fischbein representative or the Fischbein Technical Service Dept (page 3) Questions concerning bag seals: For troubleshooting the details surrounding the quality of a seal, please refer to the Quality Control Section of this manual.
  • Page 61: Spare Parts Lists

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL The machine keeps turning itself “OFF” after a short period of time. The drive motor for the PBC 6000 is protected through a circuit, which monitors the load bearing on it. If the strain becomes too great for the motor, the controller in the electrical enclosure will turn the system “OFF”...
  • Page 62: Safely Disposing Of A Pbc 6000

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL SAFELY DISPOSING OF A PBC 6000 If the PBC 6000 becomes damaged beyond repair or simply worn to a nonfunctional state after years of service, it should be put out of service only after it is safe to dispose of it. First, remove all lubricants from the machine.
  • Page 63: Assembly Drawings And Parts Lists

    ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL ASSEMBLY DRAWINGS AND PARTS LISTS DESCRIPTION GROUP No. DRAWING No. PAGE Assembly, Frame Unit (Parts List) 1 of 1 17700 Assembly, Frame Unit (Drawing) 1 of 1 17700 Assembly, Fixed Channel (Parts List)
  • Page 64 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17700- Rev. C ITEM No. QUANTITY PART No. DESCRIPTION 17708 ASSY, FRAME PBC 6000 A4022 CRANK A5649 PIN, COTTER HAIR 5/16 X 3/8 A5648 PIN, (REAR) A5616 PIN, QUICK RELEASE - PIVOT...
  • Page 65 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17701A- Rev. C Item Quantity Part No. Description 17461A CHANNEL, REAR FIXED PBC GEARMOTOR, 1 HP (SEE NOTE) 17458 KEY, .215 X .248 X 3.50 LG 66292 WASHER, 11/32 ID X 1 1/2 OD X .06 THK...
  • Page 66 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (cont.) Parts List for Drawing 17701A- Rev. B Item Quantity Part No. Description H5161834 BOLT, HEX HD 5/16-18 UNC X 3/4 H516181 BOLT, HEX HD 5/16-18 UNC X 1 H516182FT BOLT, HEX HD 5/16-18 UNC X 2 FULL THD...
  • Page 67 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17702A- Rev. B Item Quantity Part No. Description 17462A CHANNEL, FRONT SWING PBC 66292 WASHER, 11/32 ID X 1 1/2 OD X .06 THK 50052 BEARING, FLANGE UNIT 1" DIA...
  • Page 68 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (cont.) Parts List for Drawing 17702A- Rev. B Item Quantity Part No. Description 17467 FITTING, STRAIGHT UNION 1/2 T X 1/2 T 17001 TUBING, POLY 1/2 OD (RED) 67649 SENSOR, PROXIMITY 18mm 20-250VAC W/ NUTS...
  • Page 69 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 70 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17703- Rev. D Item Quantity Part No. Description 17434 PLATE, CARRY THRU PBC 17947 GUIDE, HEAT MANIFOLD 1 3/4 FOLD 17377 ASSY, PBC HEATER, 230V, 3000W, R/L 17378 ASSY, PBC HEATER, 230V, 3000W, R/L...
  • Page 71 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 72 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17704- Rev. B Item Quantity Part No. Description 17434 PLATE, CARRY THRU PBC 52164 BRACKET, BAG GUIDE 52165 BLOCK, FIXED CHANNEL END 52166 GUIDE, BAG PILS A5186 GUIDE, BAG INSERTION...
  • Page 73 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 74 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17405 (1 of 2)- Rev. C Item Quantity Part No. Description 17469 GUARD, FRONT PBC 19028 LABEL, FISCHBEIN 17479 LABEL, PBC 6000 A5668 LABEL, WARNING (CAUTION HOT) 10757 LABEL, WARNING-GUARDS...
  • Page 75 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 76 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17405 (2 of 2)- Rev. C Item Quantity Part No. Description 66154 NAMEPLATE, SERIAL - VOLTAGE 17471 GUARD, LEFT TOP PBC 50074 GUARD, FRONT DRIVE PLATE A5668 LABEL, WARNING (CAUTION HOT)
  • Page 77 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 78 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17406- Rev. E Item Quantity Part No. Description 17464 KIT, FILTER/REG/MIST SEP 1/4" NPT 17468 KIT, SOLENOID VALVE 24VAC 17465 REGULATOR, 1/4" NPT SMC 10763 LABEL, WARNING-PNEUMATIC QUIK 67480...
  • Page 79 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 80 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17708- Rev. H Item Quantity Part No. Description 66461 CASTERS, 3/4 DIA THREAD STEM W/ BREAK A6180 CASTERS, 3/4 DIA THREADED STEM A6288 SCREW, 3/8 SHOULDER BOLT 3/4" 17441...
  • Page 81 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL (this page left blank) REV. D 2005-03...
  • Page 82 ® FISCHBEIN Co. MODEL PBC-6000™ OPERATOR’S MANUAL Parts List for Drawing 17377- Rev. A Item Quantity Part No. Description 16036 WIRE TIE, SELF-LOCKING 17376 HEATER, 3000W, 460V, OPEN ELEMENT 17375 HEATER, 3000W, 230V, OPEN ELEMENT 17379 CONNECTOR, FLEX 3/8" 90%%d/SEAL...
