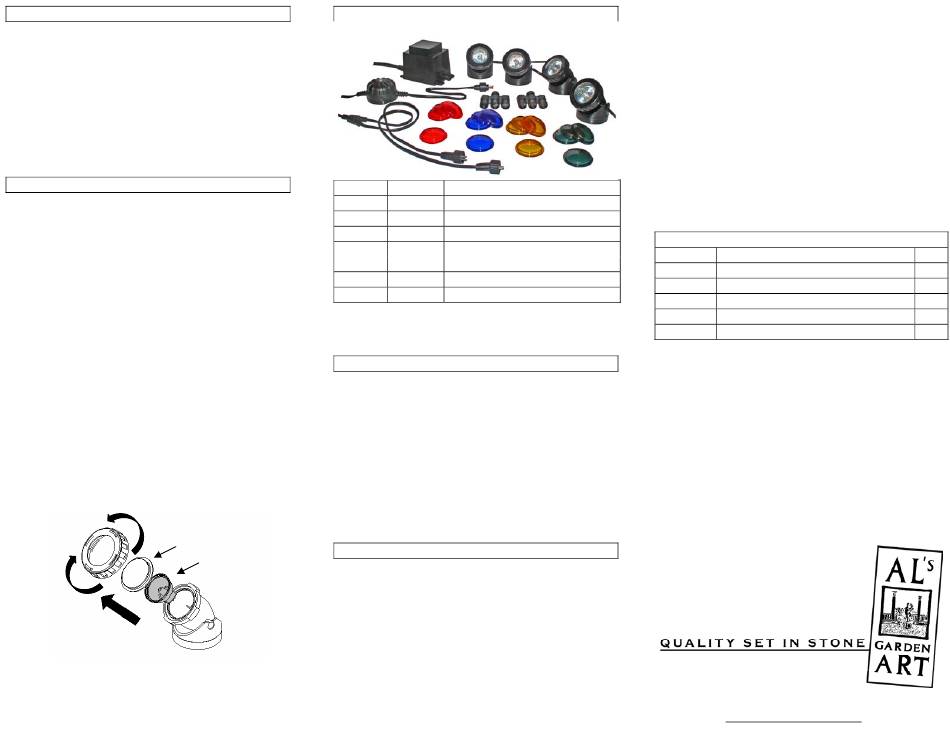

AL’S GARDEN ART AG-80 Quick Start Manual

CARE AND MAINTENANCE
• Periodically, your lights may require cleaning
for optimal performance.
• Cleaning should only be done with warm soapy
water. Be sure to use biodegradable soap.
• The frequency of cleaning depends upon the
conditions of the environment where lights are
used.
• These lights are designed to operate at
temperatures between 20ºF and 110ºF.
REPLACING THE LENS OR BULB
Replacement for the high intensity halogen bulb
AG-85 type MR11 bulb/reflector.
The bulb is not under warranty
1 Unplug the transformer
2 Remove the light's cable from the transformer
and allow the light to cool before replacing bulb.
3 Remove the lens retainer by pushing the
retainer down and turning counter-clockwise.
4 Remove the lens and unplug the bulb/reflector
from the socket.
5 Press the new bulb into the socket and place
back into the light housing. Do not touch the
lamp at any time as oil from skin may damage
lamp. Use a soft cloth.
6 Re-install the lens and lens retainer ensuring
that the o-ring remains seated in the o-ring
groove. Do not operate the light fixture with a
missing or damaged lens.
Open
Clear Lens
Close
To change the color of the light replace clear lens
with one of the AG-84 colored lenses.
REPLACEMENT PARTS LIST
D
C
Part
A
B
C
D
E
F
For replacement parts, contact our customer
service department at 909-424-0221.
8:00 am – 4:30 pm PST, Monday through Friday.
TROUBLESHOOTING
• If lights fail to illuminate, check that lights are
getting power by testing another appliance in
the same power outlet.
• The light is designed to turn on when it gets
dark, and turn off when it gets light. To activate
the light during daylight hours, cover the sensor.
• If the light will not illuminate, follow the
instructions for "Replacing The Bulb".
• If lights do not turn off during daytime, check
sensor. Make sure the sensor faces up and is
not covered by dirt or debris.
PREPARATION
AG-85 Light Bulb
Before beginning assembly or operation of
product, make sure all parts are present.
Compare parts with package contents list on the
cover and diagram on the reverse side of this
document. If any part is missing or damaged, do
not attempt to assemble, install or operate the
product.
replacement parts.
• Estimated Assembly Time: 5 minutes
• No tools required for assembly.
E
A
B
F
No. Description
AG-81 Submersible Light (4)
AG-119 3-Way Connector
AG-139 13-Foot 2-Way Extension
Light Sensor
Only Included with AG-83
AG-83 60Watt Transformer
AG-84 Colored Lens Set (4)
Contact customer service
Submersible
Light Kit
Four 12V/10W Halogen
Submersible Lights with
60W Transformer
and daylight off sensor
model
PACKAGE CONTENTS
Part Description
AG-81 Single Light with 16-foot cord
AG-83 Transformer w/sensor
AG-84 Lens Set
(Red, Blue, Yellow, Green)
AG-139 13-Foot Wire Extension
AG-85 Replacement Bulb
Questions, problems, missing parts?
Before returning to your retailer, contact our
customer service department at 909 424-0221
8:00 am – 4:30 pm, PST, Monday - Friday, or
e-mail us at info@alsgardenart.com
