ICPDAS LRA-900-E User Manual

Ethernet to lora radio modem

Advertisement

Quick Links

User Manual
Version 1.0.1 Nov. 2019

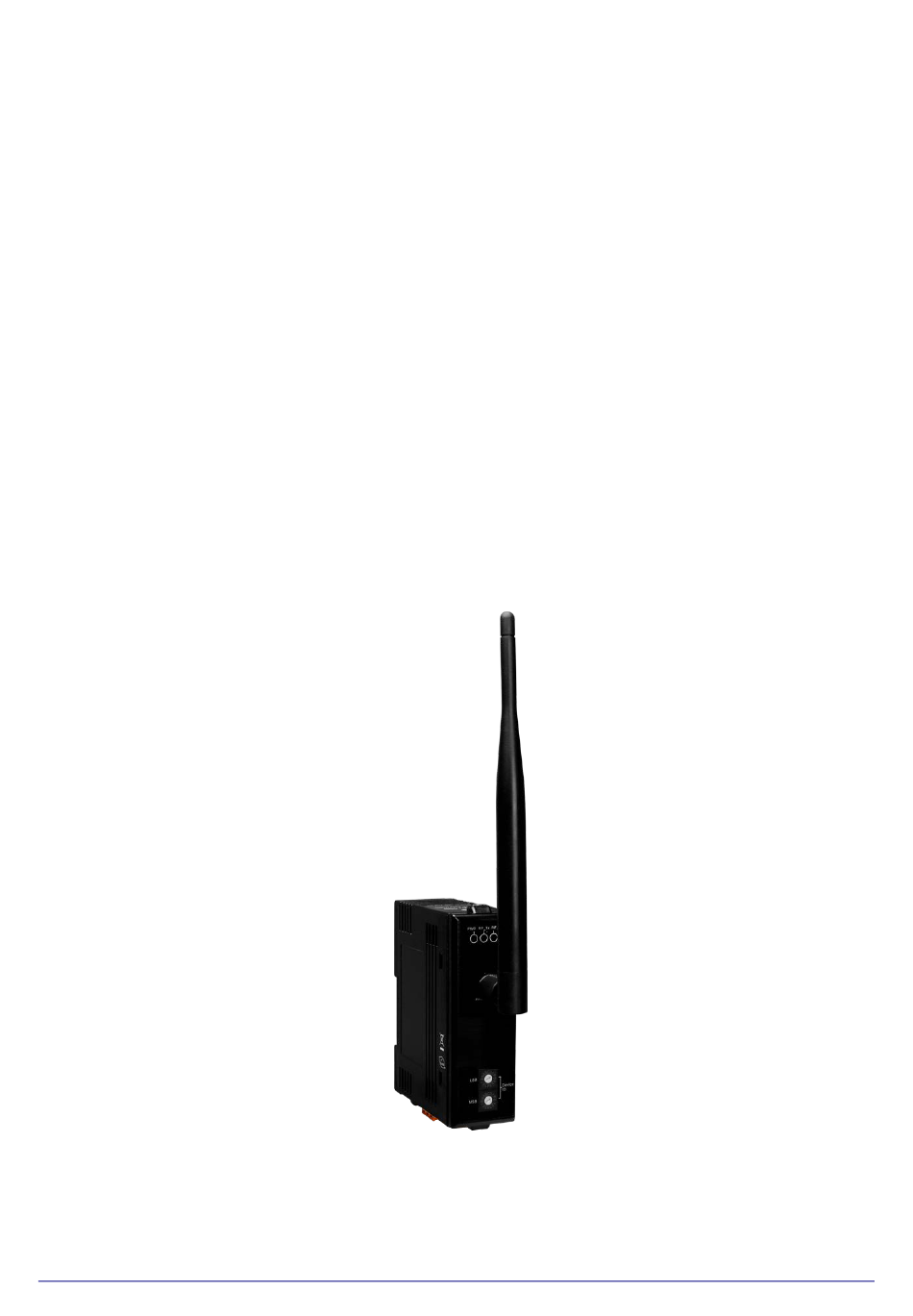

LRA-900-E
(Ethernet to LoRa Radio Modem)
1
LRA-900-E (Ethernet to LoRa Radio Modem) User Manual
Version 1.0.1
Page:
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved
E-mail: service@icpdas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRA-900-E and is the answer not in the manual?

Questions and answers

Summary of Contents for ICPDAS LRA-900-E

  • Page 1 User Manual Version 1.0.1 Nov. 2019 LRA-900-E (Ethernet to LoRa Radio Modem) LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 2: Table Of Contents

    2.4. Dimensions ........................12 Setting up the LRA-900-E Module ..................13 Web Configuration ......................18 4.1. Logging in to the LRA-900-E Web Server ..............18 4.2. Home Page ........................20 4.3. RF Port Page ........................ 21 4.3.1. Port1 Settings ......................21 4.4.
  • Page 3 15. TCP (Transmission Control Protocol) ................54 16. TCP/IP .......................... 54 17. UDP (User Datagram Protocol) ..................54 Appendix C. Revision History ....................55 LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 4 Contact us If you encounter any problems while operating this device, feel free to contact us via mail at: service@icpdas.com. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 5: Introduction

    Additionally, the RF channels and Group IDs are adjustable, which is helpful to avoid interference encountered when two LRA-900-E networks are adjacent. The RF channels and the Group IDs can be configured in order to distinguish and control the different LRA-900-E networks.
  • Page 6: Vxcomm Technology

    As a result, a new technology, VxComm was developed to virtualize the RF Port of the LRA-900-E to become a COM Port on the PC and allow up to 256 COM Ports to be used on a central computer. The VxComm driver saves time when accessing LRA-900-E devices through the Ethernet without the need for reprogramming the COM Port software on the PC.
  • Page 7: Web Server Technology

    Google Chrome, Internet Explorer, or Firefox, etc. This means that it is easy to check the configuration of thet LRA-900-E via an Ethernet network without needing to install any other software tools, thereby reducing the learning curve required for maintaining the device.
  • Page 8: Hardware Information

    -30 °C ~ +80 °C Relative Humidity 10 ~ 90% RH, Non-condensing Note: RF Port = TCP Port 10001 LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 9: Features

     10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)  3000 V isolation and +/- 4 kV ESD protection  RoHS compliant with no Halogen LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 10: Appearance

    Init Mode: Configuration mode Run Mode: Firmware operation mode For LRA-900-E module, the operating mode switch is set to the position by default. In order to update the firmware for the LRA-900-E module, the switch must be moved from the...
  • Page 11 DC power supply. Ethernet RJ-45 Jack The LRA-900-E module is equipped with an RJ-45 jack that is used as the 10/100 Base-TX Ethernet port and features networking capabilities. When an Ethernet link is detected and an Ethernet packet is received, the Link/Act LED (Green) indicator will be illuminated.
  • Page 12: Dimensions

    2.4. Dimensions The following diagrams provide the dimensions of the LRA-900-E module. All dimensions are in millimeters. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 13: Setting Up The Lra-900-E Module

    3. Setting up the LRA-900-E Module This chapter provides detailed information about how to use the LRA-900-E module. Before using the module, Ethernet configuration and VxComm utility driver installation procedures must first be fully completed. Follow the procedure described below: Step 1: Connect the Power Supply and the Host PC 1.
  • Page 14 4. Connect both thet LRA-900-E and the Host computer to the same sub-network or the same Ethernet Switch, and then power on the LRA-900-E. Refer to following figure for illustrations of how to do this. 5. Verify that the PWR LED indicator is illuminated.
  • Page 15 3. Enter the network settings information, including the IP, Mask and Gateway addresses, and then click “OK” button. The new settings for the LRA-900-E will take effect within 2 seconds. If you don’t know the correct network configuration information, contact your Network Administrator to obtain the details.
  • Page 16 1. Wait 2 seconds and then click the “Search Servers” button again to ensure that the LRA-900-E is working correctly with the new configuration. 2. Click the “Add Server[s]” button. Assign a COM Port number and click “OK” to save your settings.
  • Page 17 3. Click on LRA-900-E name and check the virtual COM port mappings on the PC. 4. Click “Tools”  “Restart Driver”, and then click the “Restart Driver” button. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 18: Web Configuration

    VxComm/eSearch Utility or a standard web browser. 4.1. Logging in to the LRA-900-E Web Server The embedded LRA-900-E web server can be accessed from any computer that has an Internet connection. Step 1: Open a new browser window.
  • Page 19 After the main login page is displayed, enter a password (the factory default password is “admin”), and then click the “Submit” button to continue. Step 4: Log in to the LRA-900-E Web Server After logging into the LRA-900-E web server, the main page will be displayed. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1...
  • Page 20: Home Page

    4.2. Home Page The Home link connects to the main page, which contains two parts. The first part of this page provides basic information about the LRA-900-E hardware and software. The software and hardware information section includes information related to the Model Name, the current Firmware version, the IP Address, the current position of the Initial Switch, the Alias, the MAC Address, and the TCP Port, and the System Timeout values.
  • Page 21: Rf Port Page

    The Port 1 Settings section provides functions allowing items such as RF settings, Port settings, RF data packing to be configured. 4.3.1. Port1 Settings LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 22 867.5, 868, 868.5, 869, 869.5, 870, 870.5, 871, 871.5, 915, 869.5 915.5, 916, 916.5, 917, 917.5, 918, 918.5, 919, 919.5, 920, 920.5, 921, 921.5, 922, 922.5 MHz) LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 23 RF port = TCP port 10001 If the Local TCP port does not receive any data via the TCP/IP Connection Idle for a certain period, the LRA-900-E will disconnect the socket (seconds) based on the TCP timeout value. Settings range: 1 ~ 65535 (seconds); Disabled: 0;...
  • Page 24 (ms) the LRA-900-E will process this response. Settings range: 10 ~ 65535; Disabled: 0. Update Settings Click this button to save the revised settings to the LRA-900-E. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 25: Network Setting

    LAN configuration. If they do not match, the LRA-900-E module will not operate correctly. If the settings are changed while the module is operating, any connection currently in use will be lost and an error will occur.
  • Page 26 IP address. This parameter is used to assign a specific IP address. Subnet Mask This parameter is used to assign the subnet mask for the LRA-900-E device. The subnet mask indicates which portion of the IP address is used to identify the local network or subnet.
  • Page 27 Step 1: Select the “DHCP” option from the “Address Type” drop-down menu. Step 2: Click the “Update Settings” button to complete the configuration. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 28 LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 29: General Settings

    Range: 1 to 65535 (minutes); Disable = 0. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 30 Settings range: 30 ~ 65535 (seconds); Disable: 0. Debug Reserved. Message(UDP) Update Settings Click this button to save the revised settings to the LRA-900-E device. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 31: Restore Factory Defaults

    Network Settings Basic Settings IP Address 192.168.255.1 Alias LoRa Converter Gateway Address 192.168.0.1 Subnet Mask 255.255.0.0 DHCP Disabled LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 32 The Forced Reboot function: can be used to force the LRA-900-E to reboot or to remotely reboot the device. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 33: Remote Firmware Update

    For detailed information regarding how to use this function to update the Firmware for your LRA-900-E module, refer to the LRA-900-E_Firmware_Update_en_vxxx.pdf. The location of the user manual on the download address are shown below: http://ftp.icpdas.com/pub/cd/usbcd/napdos/rf_modem/firmware\lra-900-e...
  • Page 34: Filter Page

    IP header. If one or more IP address are saved to the IP Filter table, only clients whose IP is specified in the IP Filter List can access the LRA-900-E. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 35 Delete all items from the IP Filter List. Save Configuration (finish) Save a new IP Filter List to the Flash memory. Click this button to save the revised settings to the LRA-900-E. Submit LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1...
  • Page 36: Monitor Page

    Current Connection Status page will be displayed showing detailed information regarding the current status of the RF port connection settings for the LRA-900-E module. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 37: Change Password

    Note: If you forgot your password, please refer to section A1. How to restore the factory default web password of the module? LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 38: Logout Page

    After clicking the Logout tab, you will be immediately logged out from the system and be returned to the login page. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 39: Cgi Configuration

    5. CGI Configuration The LRA-900-E can be configured via convenient URL commands. This section lists the commands in URL format corresponding to the basic functions of LRA-900-E.Please make sure you have correctly configured the network settings for the LRA-900-E before using CGI configuration.
  • Page 40: Cgi Command List

    (white list) fipm0 ~ fipm4 (mask) Delete IP# delfip 0 ~ 4 Delete All delfip LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 41 0xFF Set RF Bit Rate rfri RF bit rates (bps) Value Bit rate 10000 6000 3400 1800 LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 42 Set Packing Length packlen0 0 ~ 255 bytes Set TCP Timeout tto0 1~65535 seconds, Default: 180; Disable: 0 LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 43 Get module status. status.cgi Get the RF port configuration information. conf_port.cgi Get the network configuration information. conf_net.cgi LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
  • Page 44: Typical Applications

    6. Typical Applications This chapter provides some examples of typical scenarios for the LRA-900-E module, including applications focused on the Virtual COM, Direct Socket Connection, etc... LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 45: Virtual Com Application

    6.1. Virtual COM Application The LRA-900-E is designed to transfer RF signal via an Ethernet network. The VxComm utility allows the built-in LRA-900-E RF Port to be virtualized to a standard COM Port of a host PC, as shown below: LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1...
  • Page 46: Direct Socket Connection Applications

    6.2. Direct Socket Connection Applications LRA-900-E module can accept the TCP connection (include raw data) directly. For examples of socket connection test as follows: 1. Confirm that the LRA-900-E modules are functioning correctly. Refer to Chapter 3 Setting up the LRA-900-E module for more details.
  • Page 47 6. Right click in the “Configure Port” area and then choose the “Open TCP Port” item under the VxComm utility. 7. Type the IP address of LRA-900-E in the IP Address field and assign a TCP/IP port of LRA-900-E, and then click the “Open TCP” button.
  • Page 48 8. Type a string in the send field then click the “Send” button. If a response is received, it will be displayed in the received field. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 49: Appendix A. Troubleshooting

    Be aware that ALL settings will be restored to the factory default values after the module is reset. Step 1 Locate the Init/Run switch that can be found on the right-hand side of the LRA-900-E module and set it to the "Init" position. Reboot the module to load factory default settings including default web password.
  • Page 50 "OK" button to save the new settings. Step 4 Reset the Init/Run switch on the LRA-900-E module to the "Run" position and reboot the device. Step 5 Log in to the web configuration pages for the LRA-900-E module, using the default web password, "admin".
  • Page 51: Appendix B. Glossary

    RARP provides a method of dynamically mapping 48-bit MAC address to the corresponding 32-bit IP address. RARP has now been replaced by the Bootstrap Protocol (BOOTP) and the modern Dynamic Host Configuration Protocol (DHCP). LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 52: Clients And Servers

    Physically, the Internet is a collection of packet switching networks interconnected by gateways that together with the TCP/IP protocol, allows them to perform logically as a single, large and virtual network. The Internet recognizes hosts using 32-bit IP address. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 53: Ip (Internet Protocol) Address

    A packet is the unit of data sent across a physical network. It consists of a series of bits containing data and control information, including the source and the destination node (host) address, and is formatted for transmission from one node to another. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 54: Ping

    UDP is suitable for purposes where error checking and correction is either not necessary or is performed in the application. LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page:...
  • Page 55: Appendix C. Revision History

    The table below shows the revision history. Revision Date Description 1.0.0 Sep. 2018 Initial issue Modify supported data rate 1.01 Nov. 2019 description LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page: Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
