Summary of Contents for GEORGE FISCHER MSA 250SE

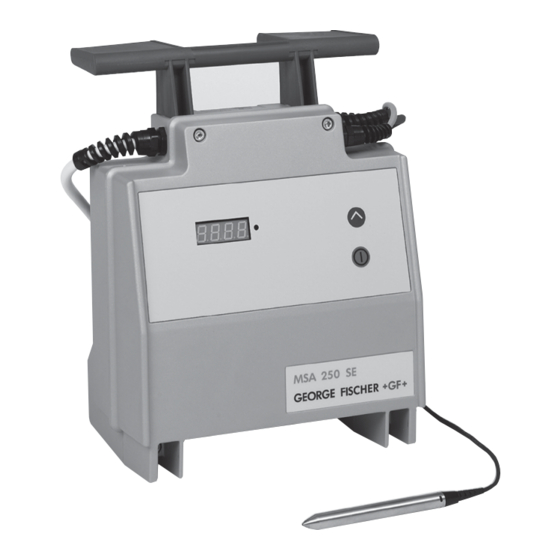

- Page 1 GF Piping Systems Technical and Operation Manual MSA 250SE...
- Page 2 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Validity .
- Page 3 Main Supply Power connections must have safety conductors (i.e. ground The MSA 250SE is a proven fusion unit in the industry, featuring fault interrupters) and fuses with 16A capacity (inert). An FI advanced transformer technology. This unit can be used to join safety switch is recommended.
- Page 4 Operation with Barcode Manual Operation Reader MANUAL MODE can be initiated by pressing the up or down arrows. The fusion voltage and time can be set in this mode: The barcode reader operates best when held at an angle of 10 Manual Input of Fusion Time and to 30 degrees from the vertical position and is run across the Voltage...
- Page 5 0.1 volts. By pressing and holding on the last digit, the input is confirmed and the MSA 250SE is ready for fusion. If the key is pressed for a longer time on the first digit, the input of the fusion voltage can be skipped over.
- Page 6 Check the power connection/extension cable (To dismiss this error message, switch off MSA 250SE) FUSION CURRENT TOO HIGH Damaged coil. If this occurs frequently, return MSA 250SE for servicing POWER SUPPLY TEMP. TOO LOW Allow MSA 250SE to warm up in a heated room POWER SUPPLY TEMP.
- Page 7 • The unit may only be opened by an authorized service agent. Attention: The MSA 250SE may only be used under Attention: When the unit has been opened or the housing supervision . removed, parts of the fusion unit are exposed which may be...
- Page 8 China Malaysia Singapore Georg Fischer Piping Systems Ltd George Fischer (M) Sdn. Bhd. George Fischer Pte Ltd Shanghai 201319 40460 Shah Alam, Selangor Darul Ehsan 11 Tampines Street 92, #04-01/07 Phone +86 21 3899 3899 Phone +60 (0) 3 5122 5585 528 872 Singapore china.ps @ georgfischer.com...
