Porta a battente + fisso - angolo (non reversibile)
Pivot door - corner (not reversible)
1
Mt.
5
4
3
2
1
Silicone
ø 6 mm
mm 2.5 / 5
5
6
0.8÷1 Kgm
0.8÷1 Kgm
E
S
I
G
2
1
2
3
7
ø 6 mm
R
N
3
ø 6 mm
8
L1 = L-20 mm
Istruzioni di montaggio
Assembling instructions
SX
DX
4
L1 = L - 25 mm
9
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Colombo E4B6
Summary of Contents for Colombo E4B6

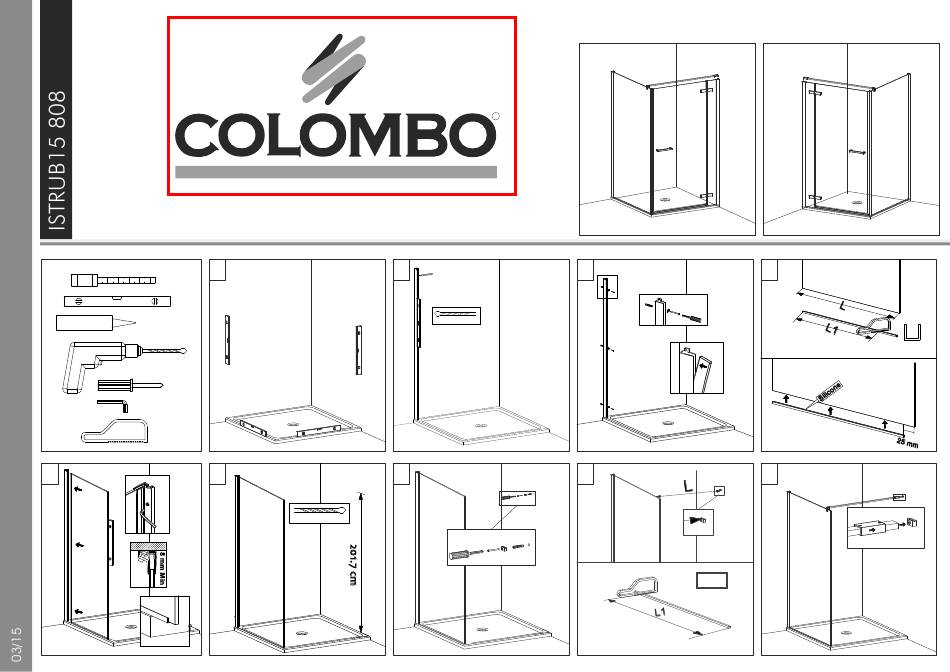

- Page 1 Istruzioni di montaggio Assembling instructions E4B6 E4G1 Porta a battente + fisso - angolo (non reversibile) Pivot door - corner (not reversible) ø 6 mm Silicone ø 6 mm L1 = L - 25 mm mm 2.5 / 5 0.8÷1 Kgm 0.8÷1 Kgm...
