Summary of Contents for Magnavox MCH3349

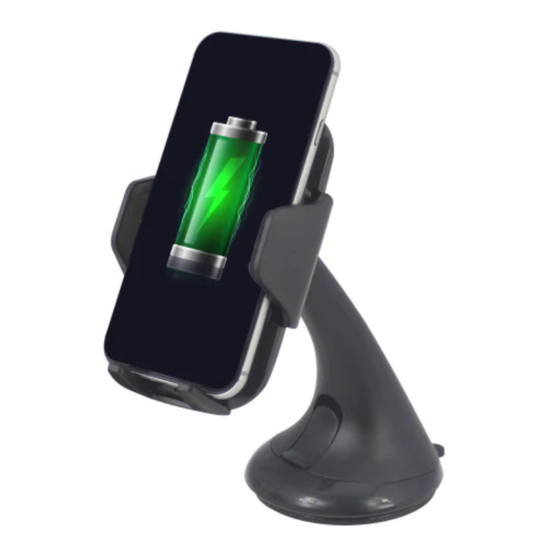

- Page 1 Wireless Charging Mount...
- Page 2 IMPORTANT: Please read this manual before using the unit to ensure safe and proper use. The unit will generate the magnetic/electric field; never place any medical equipment; watches; credit card; magnetic record card or any magnetic sensitive products close to the unit. ...
-
Page 3: Fcc Statement
FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Package Includes
Package Includes: Charger Car Mount Plastic Cover USB Connection Cable User’s Manual... -
Page 5: Installations
Installations: Before use, assemble the Car Mount to the Charger as follows: 1. Loosen the Knob on the Charger by turning it counterclockwise as illustrated below: 2. Insert the Car Mount into the Charger as illustrated below:... - Page 6 3. Tighten it by turning the Knob clockwise as illustrated below: Mounting: Mount the Charger into your vehicle as follows: Tear off the protective film on the Plastic Cover then stick it onto the desired location as illustrated below: Remove the protection film from the bottom of the Suction Cup.
- Page 7 Raise the Lock on the Suction Cup as illustrated below: Push the Suction Cup onto the Plastic Cover; Windshield or any smooth surface on your vehicle. Press the Lock to secure it as illustrated below:...
- Page 8 Connection: Connect the Charger to your Car USB Charger (not included) as follows: Connect the Micro USB Plug from the supplied USB connection cable to the Micro USB Port on the Charger as illustrated below: Connect the full size USB Plug to the USB Port on your Car USB Charger (not included) as illustrated below: The Red Power On Indicator on the Charger will illuminate.
- Page 9 Charging: Mount the unit into your vehicle then connect it to your Car USB Charger as previously instructed. Press the Release Button on the rear of Charger to release the Clip as illustrated below: Place your cell phone onto the Charging surface as illustrated below: Adjust the location of cell phone by sliding the Holder up/down as illustrated below until the color of the Red Indicator on the Charger turns to blue (or, the charging icon appears on the cell phone’s display) to start charging.
-
Page 10: General Specification
Closed the Clip to hold the cell phone as illustrated below: Notes: To charge a cell phone with this Charger, the cell phone must be compatible with the Qi standard for wireless charging. During charging, if the cell phone has a cover or case, it may disturb or prevent the wireless charging function of the cell phone.
