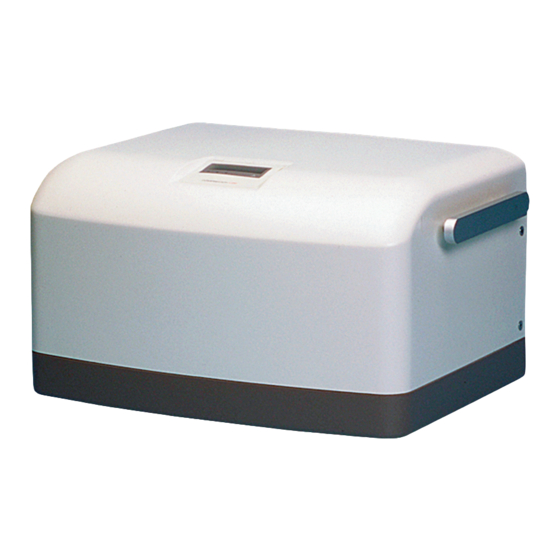

Maquet COMPRESSOR MINI User Manual

Hide thumbs

Table Of Contents

User´s Manual

VENTILATION/ANESTHESIA

COMPRESSOR MINI

Table of Contents

Need help?

Do you have a question about the COMPRESSOR MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for Maquet COMPRESSOR MINI

Page 1 User´s Manual VENTILATION/ANESTHESIA COMPRESSOR MINI...
Page 3: Table Of Contents
1 Before use................3 2 Device description..............7 3 Preparation/Connection............11 4 Function check..............13 5 Preventive maintenance / Storage........15 6 Cleaning................17 7 Alarms................... 19 8 Troubleshooting..............21 9 Technical data..............23 COMPRESSOR MINI, User´s Manual English version 28.0...
Page 5: Before Use
The device complies with the requirements of the Medical Device Directive 93/42/EEC. • The Compressor Mini may only be used by authorized personnel. Users must have a thorough knowledge of the unit and follow the instructions in this Operating Manual.
Page 6 Operation Intended use • When in use, the compressor must be The intended use of the Compressor Mini is placed so that the air vents at the back and to supply dry, filtered, compressed air for a on the underside are not covered.
Page 7 1. Before use Caution • The Compressor Mini has been designed and tested to comply with requirements specified in electromagnetic compatibility standard EN 60601-1-2. It is the responsibility of the user to take necessary measures to ensure that the EMC...
Page 8 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 9: Device Description
Description with an LED indication and a text displayed. The Compressor Mini is equipped with a The Compressor Mini can be placed on a Standby function. In Standby mode, the ventilator cart to form a compact unit that is compressor will start to deliver compressed easy to move.
Page 10 1. Outlet air pressure The air pressure delivered by the compressor is normally between 50 – 64 psi (350 – 450 kPa/3.5 – 4.5 bar). 2. Operating time Elapsed operating hours. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 11 The alarms are described in detail in the Alarms section. 4. Audible alarm A buzzer for audible alarm signals (3 beeps/second). The buzzer sounds when an alarm is activated. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 12 The drain valve is used to ensure that there is no water build-up in the air reservoir by releasing any collected condensed moisture. If the compressor is running continuously, a small amount of water may collect in the air reservoir. KMP-013aX COMPRESSOR MINI, User´s Manual English version 28.0...
Page 13: Preparation/Connection
- Check that an empty drainage bottle is function check, the compressor must not be fitted. used until it has been repaired by authorized - MAQUET Compressor Mini mounting service personnel. kits are mandatory for both stand-alone arrangements and for mounting on carts.
Page 14 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 15: Function Check
- The display shows Comp Mini, the software version, the air pressure and the elapsed operating hours. • Check that the air pressure is between approximately 50 – 64 psi (350 – 450 kPa/3.5 – 4.5 bar). COMPRESSOR MINI, User´s Manual English version 28.0...
Page 16 12345 hours Standby Alarm • Decrease the internal pressure with the manual drain valve. When the air pressure drops below approximately 36 psi (250 kPa/2.5 bar) for more than 2 seconds the compressor starts. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 17: Preventive Maintenance / Storage
1. Switch off the compressor. 2. If the compressor is not to be used for a long period, empty, wash and drain the drainage bottle • Drain the air reservoir by pressing the manual drain valve. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 18 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 19: Cleaning
• Wipe all parts with a soft lint-free cloth moistened in soap and water or detergent-based disinfectant. Note: In case of more contaminated surfaces use ethylene alcohol or isopropyl alcohol. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 20 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 21: Alarms
(600 kPa/6 bar) for more than 5 seconds, or the High pressure compressor is switched off. On Standby Alarm Power failure alarm Power failure. The alarm buzzer is activated for about 12 seconds. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 22 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 23: Troubleshooting
• Cooling fan or dryer malfunction. Contact authorized service personnel. Abnormally large quantities of water flush out from the The cooler/dryer system is not performing correctly. drain valve when the valve pin is depressed. Contact authorized service personnel. COMPRESSOR MINI, User´s Manual English version 28.0...
Page 24 ..................................................................................................................................................................................................................................................................................................................................................................................COMPRESSOR MINI, User´s Manual English version 28.0...
Page 25: Technical Data
Ambient atmospheric pressure: – Total working range – Full capacity range (30 l/min) 950 to 1060 hPa (712 to 795 mmHg) – Reduced capacity range* 660 to 950 and 1060 to 1200 hPa COMPRESSOR MINI, User´s Manual English version 28.0...
Page 26 Environmental conditions – Transport and storage Ambient temperature -40 °F to +158° F (-40 °C to +70 °C) Ambient relative humidity 10% to 95% Ambient atmospheric pressure 500 to 1 200 hPa (375 to 900 mmHg) COMPRESSOR MINI, User´s Manual English version 28.0...
Page 28 ARJO for patient hygiene, Please visit our website patient handling and wound care, GETINGE for infection control and prevention within healthcare and life science and MAQUET for surgical www.maquet.com workplaces, cardiopulmonary and critical care.
