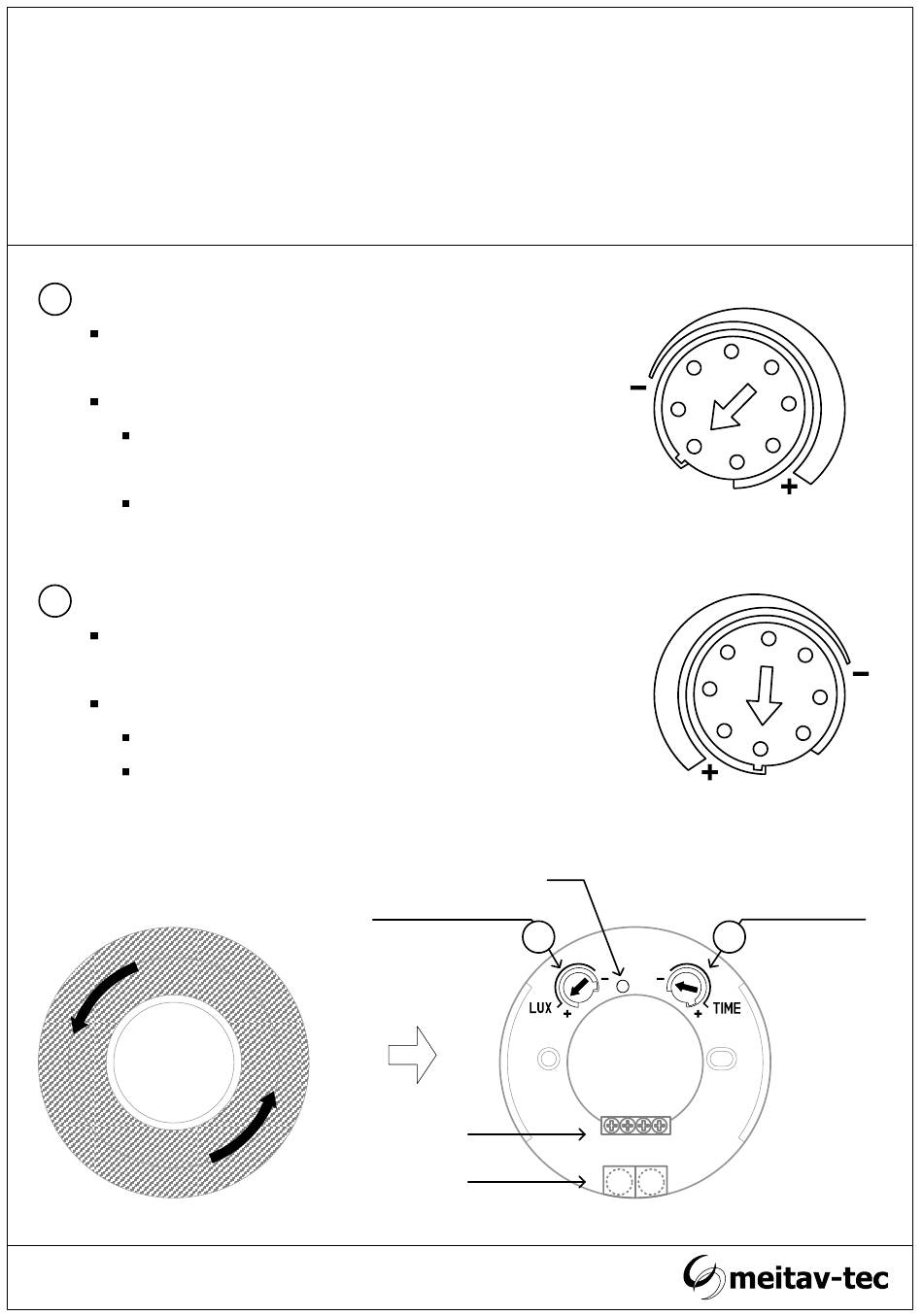

IDK360 – Ceiling Mounted Microwave Occupancy Detector
HF System: 5.8GHz CW radar, ISM band
Transmission Power: <10mW
Power Sourcing: 12VDC
Cut-off delay: 10sec.~30min. - adjustable
Detection Range: 360°
Cut-off delay time
1
Rotate the outer ring counter clockwise and separate
it from the base.
Use the right knob (TIME) to adjust delay:
Extend the delay - Rotate clockwise
(30 minutes max.)
Reduce the delay - Rotate counter clockwise
(10 seconds min. - default)
Adjusting the sensitivity
2
If required – repeat the steps above to separate the outer
ring from the base.
Use the left knob (LUX) to adjust the sensitivity:
Higher sensitivity - Rotate counter clockwise (default)
Lower sensitivity - Rotate clockwise
Rotate counter clockwise
to open
www.meitavtec.com | info@meitavtec.com
Installation height: 1.5~3.5m
Detection Distance: 1-8m radius - adjustable
Sensing indicator: Red LED (can be cancelled)
Polarity: Normally open/close – selectable
Dimensions: Diameter 105mm, Height 25mm
Red LED
Sensitivity
adjustment
2
Terminals
Cables
threading holes
5
Min.
1
Min.
10 Sec.
30
Min.
LUX
High
Sensitivity
1
10
Min.
20
Min.
TIME
Low
Cut-off time
adjustment
Pg. 1
