Hillsdale Furniture 4815-850 Quick Start Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (6) Allen Bolts 1/4" x 1-3/8"
B (9) Allen Bolts 1/4" x 1-1/8"
C (4) Counter Bolts 1/4" x 1"
D (18) Allen Bolts 1/4" x 5/8"
E (33) Spring Washers 1/4"
F (33) Flat Washers 1/4"
G (18) Glass Pads
H (1) Allen Wrench

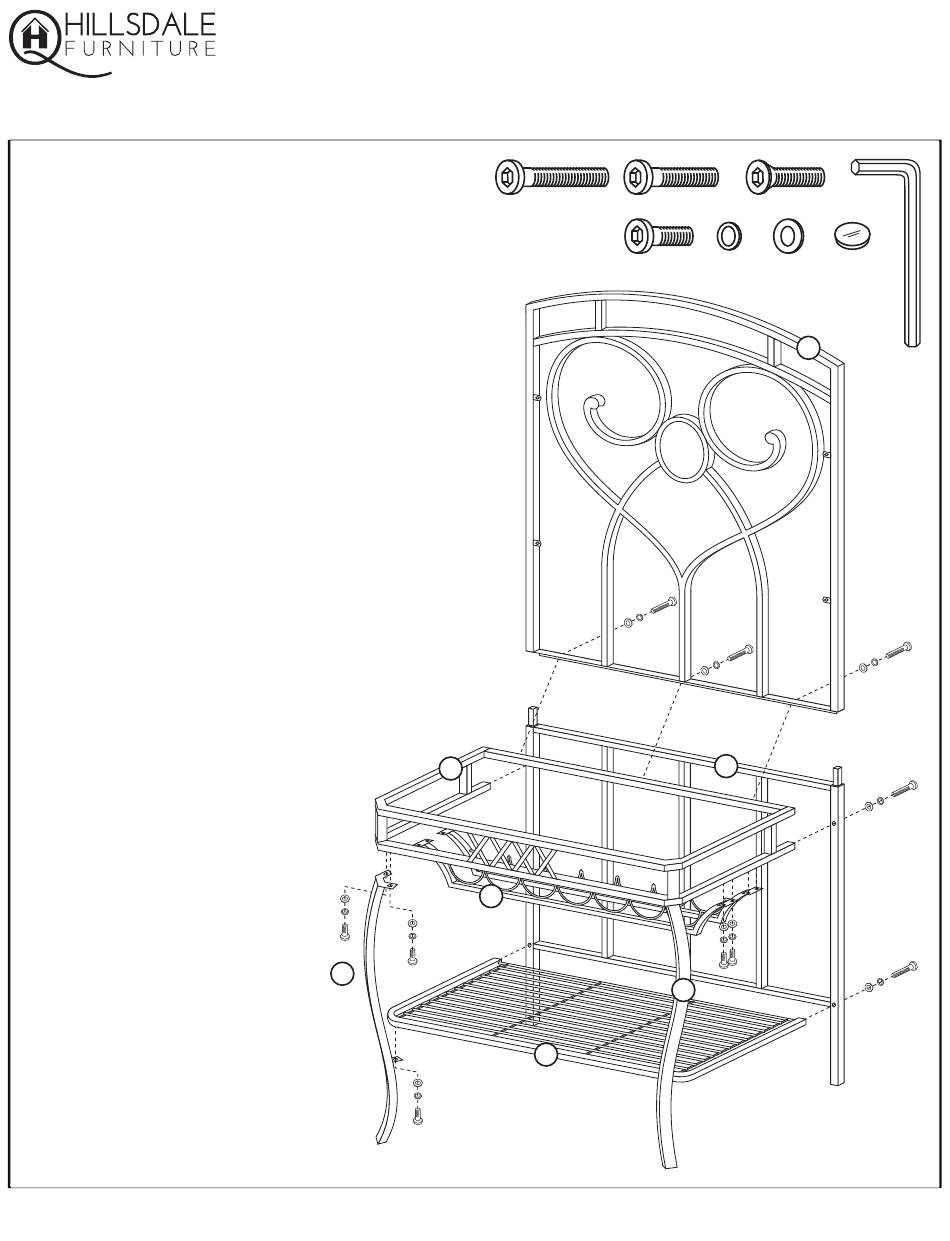

STEP 1

Begin assembly by attaching each Front Leg (N) to
the bottom of the Metal Base (L) using 2 Allen Bolts
(D), 2 Spring Washers (E) & 2 Flat Washers (F) per
each side. During assembly, also attach the Metal Shelf
(R) to each Leg using 1 Allen Bolt (D), 1 Spring Washer
(E) & 1 Flat Washer (F) to secure in place. Do not fully
tighten bolts.

STEP 2

Attach the Metal Base (L) to the Lower Panel (M) using
2 Allen Bolts (A), 2 Spring Washers (E) & 2 Flat Washers
(F) from the backside. Do not fully tighten bolts.

STEP 3

Next, attach the Metal Shelf (R) to the Lower Panel
(M) also using 2 Allen Bolts (A), 2 Spring Washers (E)
& 2 Flat Washers (F) from the backside. Tighten all
bolts from Step 3 only using the Allen Wrench (H) that
has been provided.

STEP 4

Attach both Wine Racks (P) to
the bottom of the Metal Base (L)
using 2 Allen Bolts (D), 2 Spring
Washers (E) & 2 Flat Washers
(F) to secure in place. Tighten
all bolts from steps 2 & 4.

STEP 5

Attach the Back Panel (J) to the
top of the Metal Base (L) by
sliding into place. Once in place,
secure from the back using 3
Allen Bolts (B), 3 Spring Washers
(E) & 3 Flat Washers (F) to
secure in place. Do not fully
tighten bolts. See next page for
more assembly.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
BROOKSIDE BAKERS RACK
Model #4815-850 Bakers Rack

PARTS LIST

J (1) Back Panel
K (2) Side Arms
L (1) Metal Base
M (1) Lower Panel
N (2) Front Legs
P (2) Wine Racks
R (1) Metal Shelf
S (1) Small Shelf
T (1) Large Shelf
U (3) Glass Panels
