1. INTRODUCTION
The On-Q/Legrand lyriQ™ Triple-Source Input Unit (P/N F7428) converts and sends line-
level audio from up to three audio components (i.e. Stereo Receiver, CD Player, Tape
Deck, etc.) to an audio distribution module via Cat 5e cable (see Figure 1).
It is an integral part of the lyriQ™ Audio System, which utilizes Category 5 technology to
distribute high quality audio to remote locations via Cat 5e cable, creating a versatile
whole-house audio system that will fill your rooms with high quality sound for years to
come. This technology provides many advantages over conventional methods of audio
distribution, such as simple Category 5 wiring schemes, infrared control of system
components, and improved sound quality due to an amplifier being located in every room.
This unit also receives IR control codes from the Volume Control IR Targets and passes
them to the emitter output ports for control of the source equipment.
2. DESCRIPTION

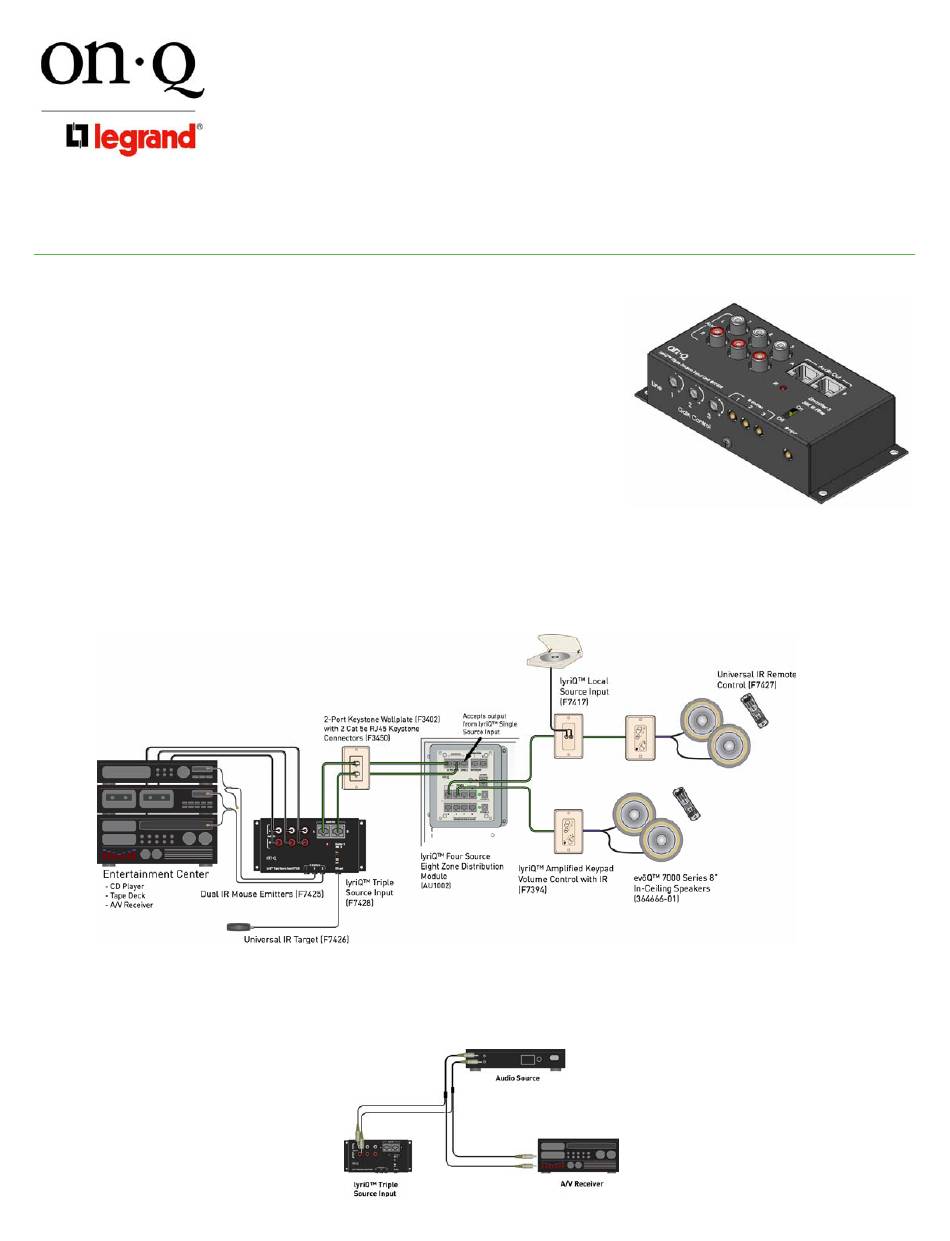

The lyriQ™ Triple-Source Input Unit typically resides at the entertainment center (see
Figure 2). It accepts stereo line level audio via three sets of Left/Right RCA jacks, and
transmits the audio via two Cat 5e cable runs to a centrally-located, enclosure-mounted lyriQ™ 4x8 Multi-Source Distribution Module (P/N
AU1002). The distribution module then distributes the audio, also via Cat 5e cable, to lyriQ™ Amplified Keypads with IR (P/N F7394) in
multiple rooms throughout the house.
• If an audio component is being shared with an A/V receiver and the multi-source system, and doesn't have secondary fixed
stereo line level outputs, use two Y-cables to split that component's output signal so it can be sent directly into one set of RCA
jacks on the Triple-Source Input and also to the A/V receiver (see Figure 3).
©Copyright 2006 by On-Q/Legrand All Rights Reserved.
INSTRUCTION / INSTALLATION SHEET
lyriQ™ Triple Source Input
Figure 2
Figure 3
IS-0326 Rev. B
Figure 1
