Summary of Contents for RAKINDA F6
- Page 1 Facial Recognition Device Product model: F6 Product version: V1.0 Please read this instruction carefully before use...
-
Page 2: Table Of Contents
Catalogue ⅠProduct overview..............................3 Ⅱ Functional characteristics.............................4 Ⅲ Specification performance........................... 4 Ⅳ Product list................................7 ⅤProduct Structure..............................7 Ⅵ Product wiring..............................8 6.1 Integrated wiring harness wiring instructions....................9 6.2 Reference instructions for field magnetic door installation................10 6.2.1 Schematic installation of magnetic gate system..................10 6.2.2 Schematic diagram of the wiring of the magnetic gate system..............10 Ⅶ... -
Page 3: Ⅰproduct Overview

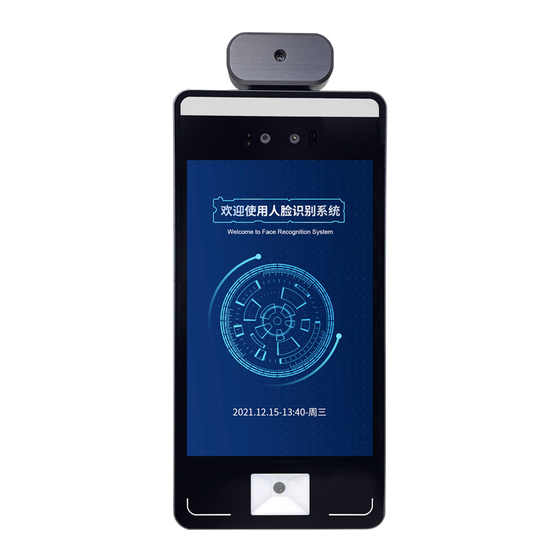

I. Product overview (The diagram is for reference only, and the actual product shall be subject to the corresponding product number) This product is a convenient, safe industrial-level visual face recognition all-in-one machine. In view of the needs of large capacity, high performance, wide application, customizable and other aspects existing in the process of face recognition application, an intelligent face recognition hardware launched can be combined with face recognition algorithm, without user cooperation, to achieve live detection, dynamic face recognition, to provide users with the use environment of the safety area. - Page 4 Ⅱ Functional characteristics High performance engine Binocular Distance induction Card read Security interface Multiple installation High levels of protection Serial Characteristi Content number function Combined with the face recognition algorithm, to support the ten thousand level face bottom library algorithm Support the domestic top AI manufacturers algorithm velocity Combined with face recognition algorithm, face recognition...
- Page 5 resolution ratio 200, megapixels 200, megapixels Vertical wide 65° 65° Angle Horizontal wide 40° 40° Angle White light support supplement Infrared light support supplement system android 11.0 Core RK3566 4x ARM® Cortex™ A55 up to1.8GHz parameters Memory 2G, storage 8G display screen 8-inch, Full View, 170°IPS LCD, resolution 800 * 1280 touch screen...
- Page 6 gorge line RS485*1 Wigan The 26bit / 34bit protocol Go out switch * 1 [Expandable] Fire linkage * 1 [Expandable] Upgrade key source adapter DC12V / 2A power supply working -20℃～60℃ temperature Operating 20% ⾄ 90% (in no condensation ⽔ drop state) humidity Environmen static electricity...
-
Page 7: Ⅳ Product List
Ⅳ Product list Serial cont quan Numb tity main engine Support kit Power adapter Sunshades [Optional] Install the screw bag Product warranty card ⅤProduct structure Part serial function declaration number Fixed screws for the ① wall-mount bracket 7 / 16... - Page 8 RGB, camera ② 7 / 16...
-
Page 9: Ⅵ Product Wiring
IR camera ③ White light ④ supplement Infrared light ⑤ supplement Multi-point ⑥ capacitive touch screen Wall-mounted ⑦ bracket connector Wall hanging ⑧ bracket Horn net hole ⑨ swing card ⑩ End line interface ⑪ Ⅵ Product wiring Description of the hardware wiring of the external interface type port explain... - Page 10 Upgrate reset Support for manual reset, upgrade RS485 TX Serial Support for serial port RS485 RS485 RX 8 / 16...
-
Page 11: Integrated Wiring Harness Wiring Instructions
WG_D1 Wigan hair Weigan output interface with 26bit / 34bit protocol support WG_D0 Enter the Power Supply Input: 12V DC power 12V+ supply USB_HOST-4P External reserved USB interface peripheral USBA 2.0_OTG Equipment upgrade, debugging, U disk 6.1 Integrated wiring harness wiring instructions 9 / 16... -
Page 12: Reference Instructions For Field Magnetic Door Installation
6.2 Reference instructions for field magnetic door installation 6.2.1 Schematic installation of magnetic gate system 6.2.2 Schematic diagram of the wiring of the magnetic gate system Ⅵ Installation instructions... - Page 13 Environmental requirements In the installation and use of this product, all national and regional electrical regulations must be strictly followed.If the equipment is not working properly, Do not remove and repair, otherwise will affect equipment warranty.Avoid extreme high temperature (or low temperature), high humidity, strong backlight, vibration, radiation, and chemical corrosion。 It is recommended to install it in an indoor or semi-open air environment to ensure a good light environment and avoid strong direct or weak light light...
- Page 14 Recommended location regi ster pari The installation location of the equipment must be maintained unchanged during registration and use.If the mobile device position is really required, the installation height must be consistent.If inconsistent, the identification effect of the equipment may be worse.The recommended distance between the face and the machine registration is 0.5 to 0.8 meters.
-
Page 15: Wall-Mounted Installation Instructions
regi regi ster pari ster pari The posture was inconsistent Highly inconsistent regi regi ster pari ster pari The distance is too close It's too far away 7.1 Wall-mounted installation instructions 7.1.1 installation site On a wall about 130cm from the ground, start the first row of holes (using 6mm drill, 6mm diameter, depth 4c m, the second hole 66m m translation).Move 63m m up two holes in the second row. -
Page 16: Description Of The Size And Hole Position Of The Wall Hanging Bracket
Three sets of lines shall be embedded in host equipment (reserved line is 10cm long) (1) The 12V power supply cable RVV2x1.0 standard and above, one end at the host equipment, the other end to the 220V or 22-well outlet at the top of the shift door, install the 12V2A factory 12V adapter, the adapter 220V power cable directly plugged into the 220V power 2-well socket. -
Page 17: Install Steps
7.1.3 Install steps Step 1: Fixed.Attach the wall-mounted fittings to the wall with screws. Step 2: wiring.Refer to the wiring instructions and connect the wire to the equipment Step 3: Adjustment.Tighten the accessories and fixing screws on the fixing equipment with screws Step 4: Lock.Tighten the host to the wall mount with screws.Filire, adjust wiring length until the equipment can be buckled into wall mount fittings. - Page 18 This table is prepared according to the provisions of SJ / T11364...
-
Page 19: Ⅸ Product Warranty
It indicates that the content of the hazardous material in all homogeneous materials of the component is below the limit requirements of GB / T26572 It means that the content of the hazardous substance in at least a homogeneous material of the component exceeds the limit requirements specified in GB / T26572 This identification period refers to the period (ten years), harmful substances in electronic and electrical products will not leak or mutation under normal use conditions, users use...
