- Page 1 ||||||||||||||||||||||||||||||||||||||||||||||||||| GS-100M UAV LiDAR Scanning System Operation Manual Wuhan Geosun Navigation Technology Co.,Ltd...
- Page 2 空中鹰是由际上导航自主研发的情形激光 Introduction gAirHawk GS-100M is a kind of middle range compact LiDAR point cloud data acquisition system, integrated Livox Avia laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information.

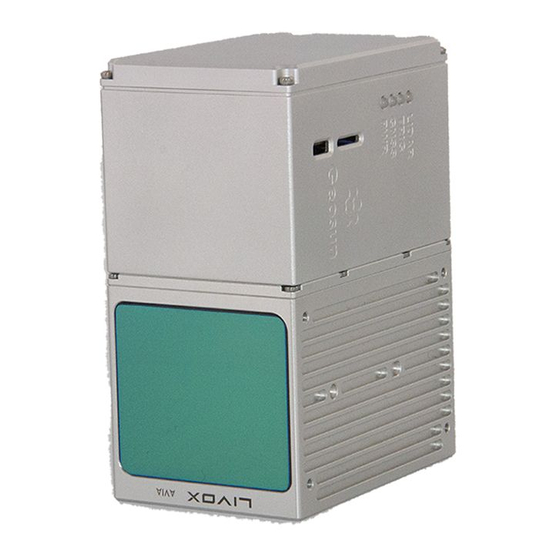

- Page 3 GS-100M Side View as Above Figure GS-100M Side View as Above figure 1 Micro SD slot, 1 Type C interface, 3 interface and 4 LED Indicators...
- Page 4 Standard Operation Flow GS-100M LiDAR Scanning System Standard Operation Flow as following, 1. Fix the GS-100M lidar scanning system to the carrier (drone or car, etc). 2. Install the GNSS antenna on the carrier without any interference, and connected to GS-100M LiDAR Scanning system directly. 3.
- Page 5 9. After scanning, disconnect the power of the device, take out the data from the micro SD cards, and perform the calculation operation by Shuttle and gAirhawk software on the computer. GS-100M Data Storage Instruction GS-100M uses one micro SD cards (TF card), respectively used to store POS and LIDAR data.
- Page 6 for backing up the collected data to prevent data loss due to accidental damage of the micro SD card. If users need to read the data in eMMC Flash, please use USB type-C data cable. (Please make sure that the cable has a data transmission function. Some cables may only have a power function.
- Page 7 GS-100M Indicators Instruction Refer to the 4 led indicators as above mentioned, description as following PWR Indicator Light on : Power on Turn off : No power or abnormal Fast flashing: the microSD card is not inserted, or it is inserted but the connection is not good GNSS Indicator Light off : Unlock the satellite.
- Page 8 GS-100M lidar configuration file Users can configure some functions of GS-100M The standard configurable functions currently provided are as follows, Trigger signal interval: isochronous interval trigger, unit: second and equidistant interval trigger, unit: meter Trigger signal mode: high level trigger (normal low level, high level when triggered);...
- Page 9 GS-100M Troubleshoot An abnormal situation happen when use, please handle it according to this table. Please check whether the power polarity After power on, the power is correct and the power connector is indicator is not on connected The micro SD card is not inserted, or it is inserted but the connection is not good Power indicator fast flashing Please make sure the GNSS antenna,...
